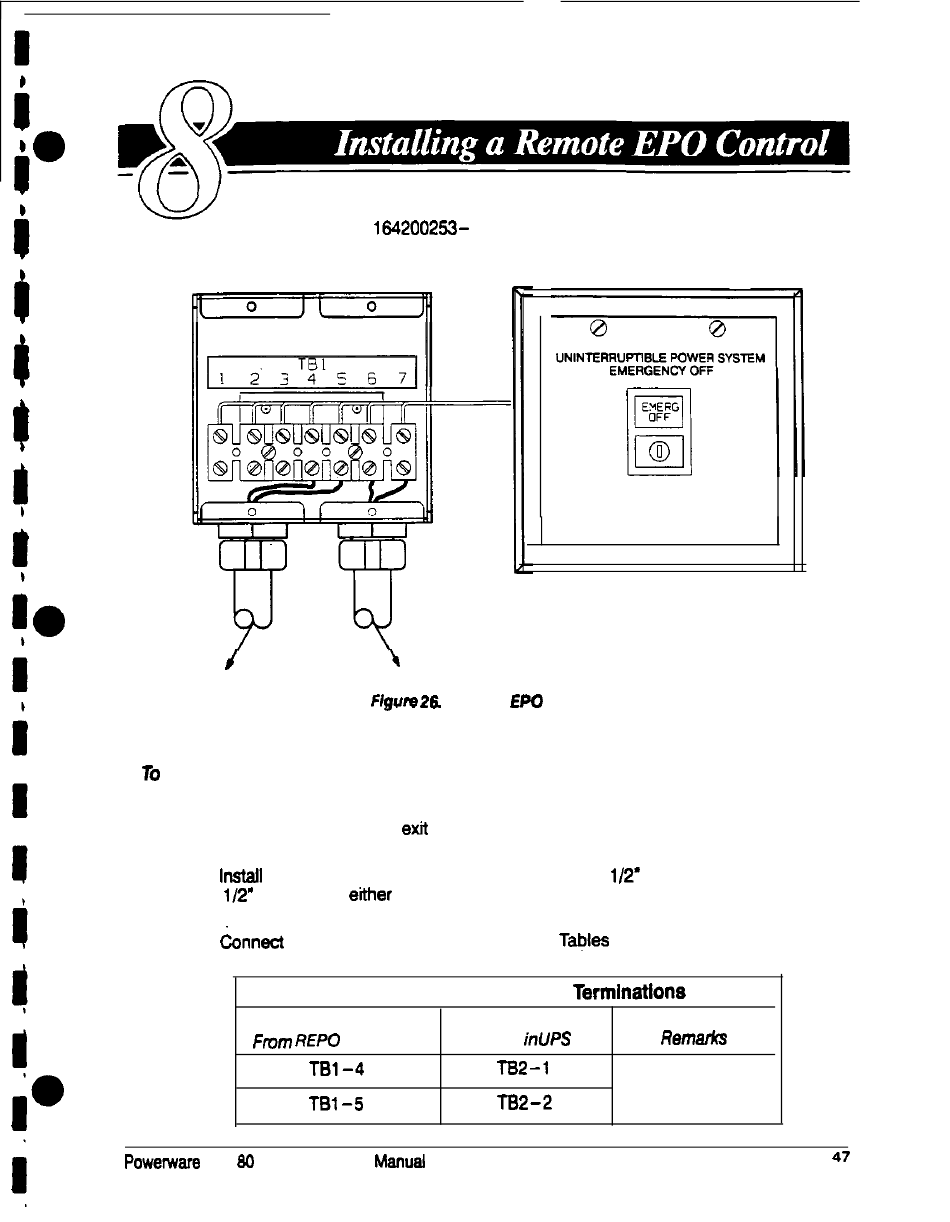

The Remote EPO control arrives as shown in Figure 26. See
Drawing 164200253- 10 on page A-20 for enclosure dimensions,
side views, and knockout patterns.
0
0
to other equipment
to UPS
1.
Securely mount the Remote EPO station. Recommended locations include
operator's consoles, or exit doors.
2. lnstafl wiring from the Remote EPO station through I/2' conduit and through the
3. &nnect the remote EPO wiring as shown in Tables E and F:
Table E. Remote EPO Wire Terminations
To Communications
Panel inUPS
Twisted wires (2)
14-18 gauge
