This book describes how to install your Powerware' Plus SO
Uninterruptible Power Supply (UPS) system. It contains instructions for
installing the UPS and each optional component and accessory. The information
you will use depends on the system you purchased.
Each component of your UPS system is housed in a free-standing cabinet. The
cabinets line up and match in style and color, and they have safety shields behind

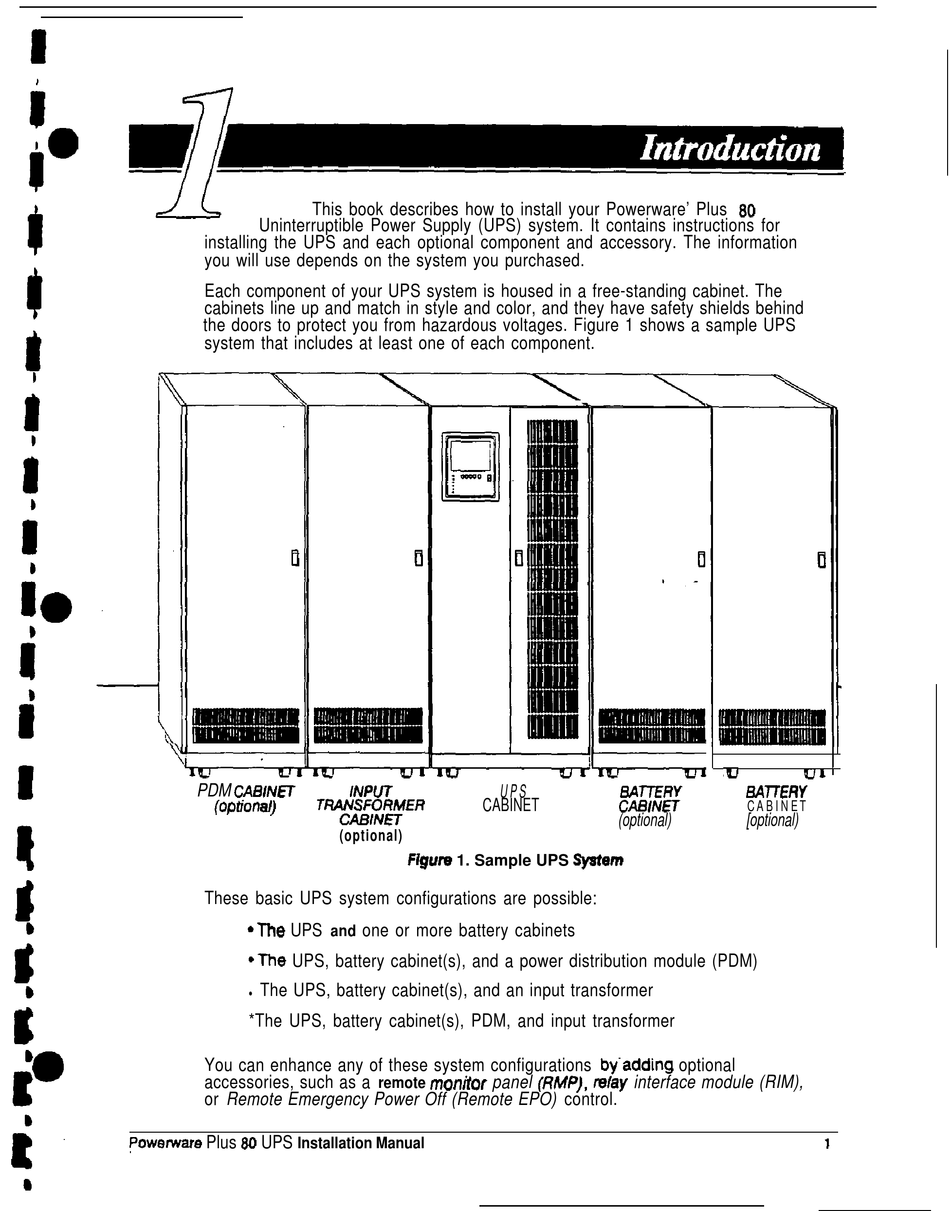

the doors to protect you from hazardous voltages. Figure 1 shows a sample UPS
system that includes at least one of each component.
PDM CABINET
(optional)
These basic UPS system configurations are possible:
one or more battery cabinets
and
The UPS, battery cabinet(s), and an input transformer
l
*The UPS, battery cabinet(s), PDM, and input transformer
You can enhance any of these system configurations by.adding optional
accessories, such as a
or Remote Emergency Power Off (Remote EPO) control.
Installation Manual
U P S
CABINET
remote
f
CABINET
(optional) [optional)
