Robot welding torch

Safety

Burning hazard due to hot torch body, hot torch body coupling as well as other hot
welding torch components.
Before starting work on the torch body, the torch body coupling and all other welding torch
components:
► allow equipment to cool down to room temperature (+25 °C, +77 °F)
► wear electrically insulating and heat protective gloves
► use appropriate tools
Robot welding
torch
* welding torch wearing parts

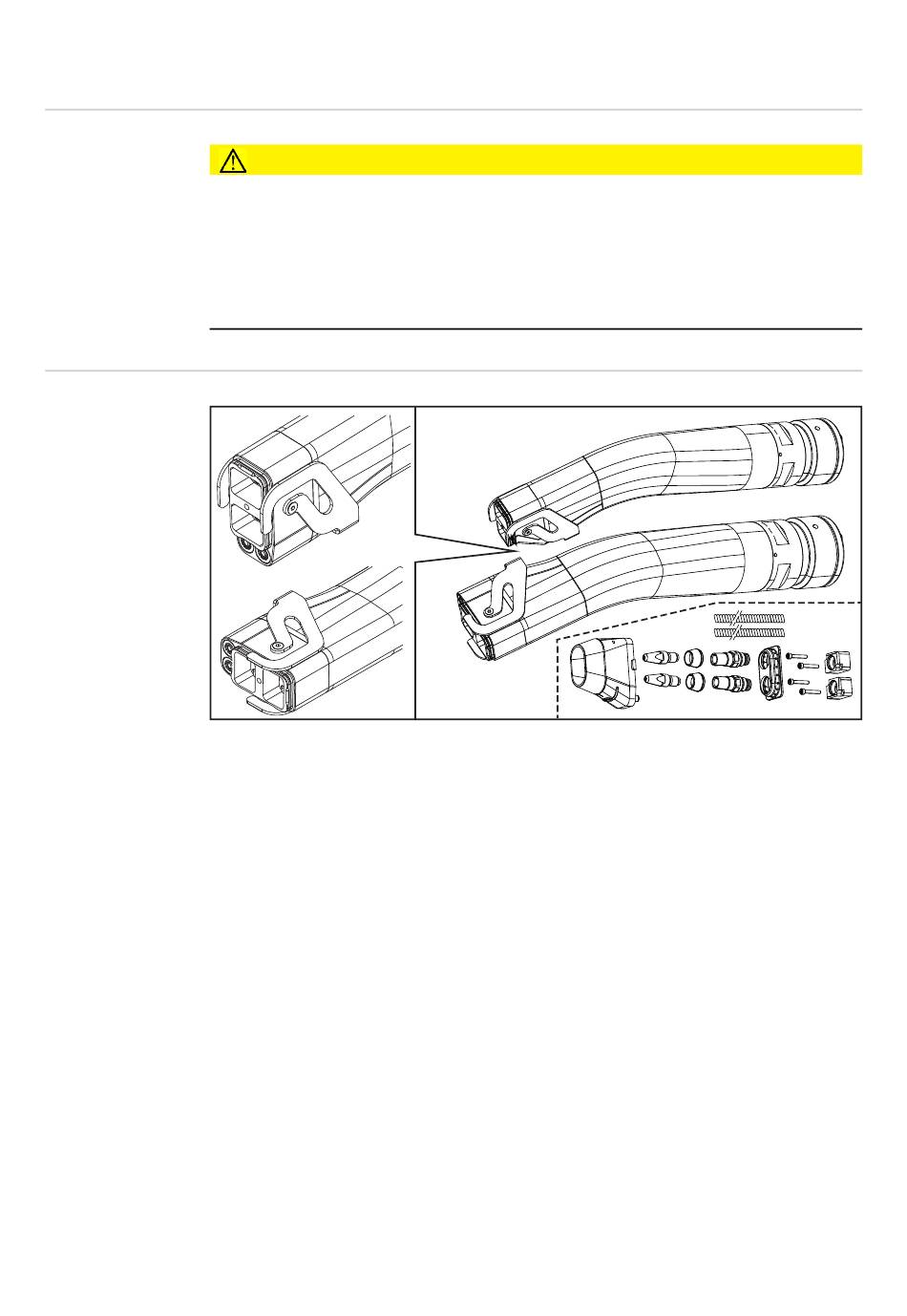

The water-cooled robot welding torch transfers the arc power to the workpiece. The TWIN
welding torches are designed for use with the CrashBox /i XXL and are available in two
versions:
PA
PB
The welding torches are supplied without contact tips and without inner liners.
The following components are required in order to fit the robot welding torch to the hose-
pack without an automatic TXi TWIN torch body change system:
-
-
-
36
CAUTION!
PA
PB
with contact tips arranged one over the other,
welding torch angle 30° or 45°
with contact tips arranged next to each other,
welding torch angle 30° or 45°
42,0001,4833 Connector M52x1.5/M55x1.5
42,0001,4832 Nut TWIN TX M55x1.5
42,0407,0834 Shaft circlip SW50
PA
PB
*
