WF 30i R /TWIN: Operating Controls, Connections,
and Mechanical Components

Safety

Danger due to incorrect operation.
Serious personal injury and damage to property may result.
► All functions described may only be used by trained personnel.
► Read and understand this document in full.
► Read and understand all the Operating Instructions for the system components, espe-

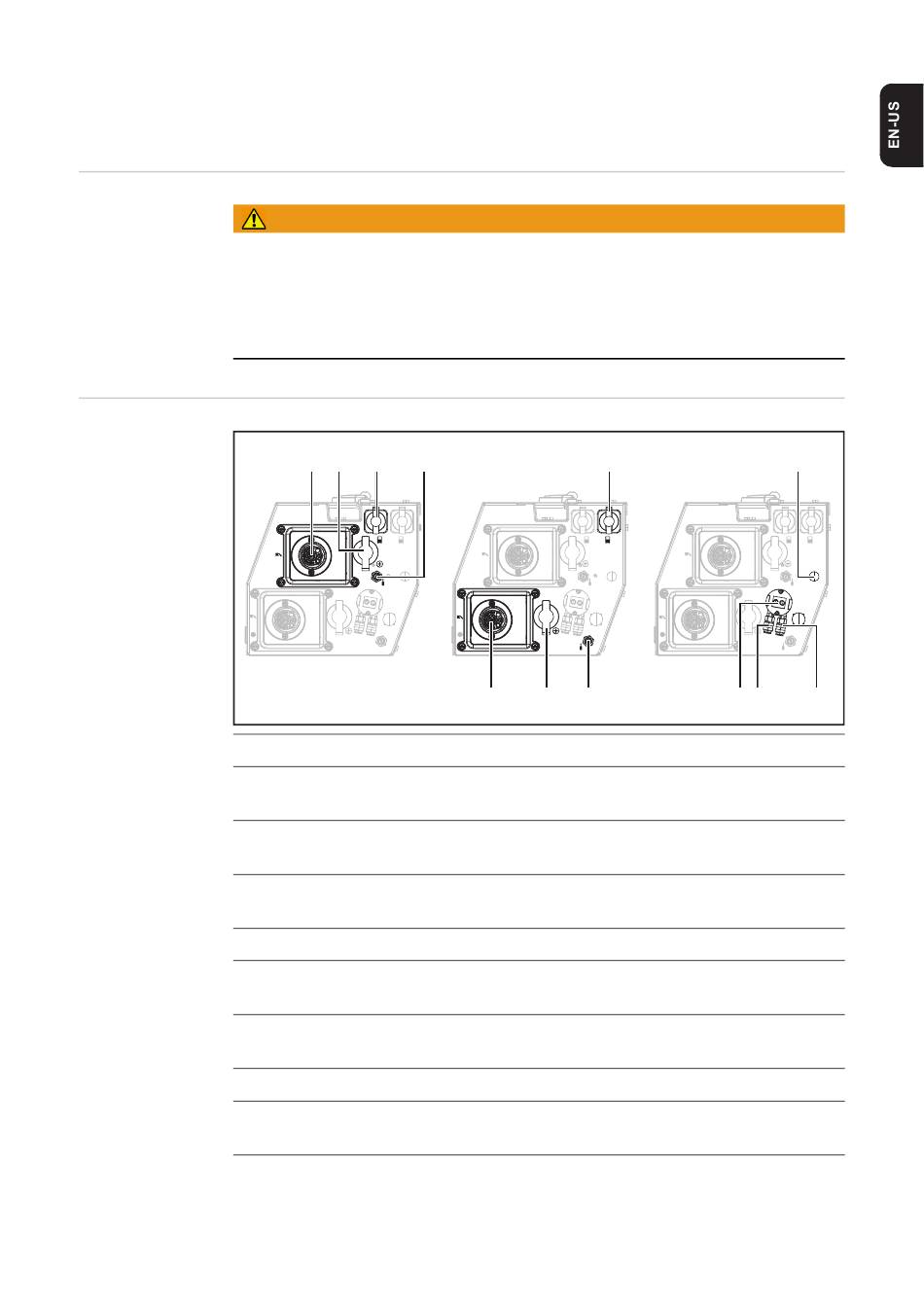

Wirefeeder front

2
No.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
WARNING!
cially the safety rules, in full.
(1) (2) (3) (4)
1 2
1
1
1 Air in
2
Function
Welding torch connection 1
For connecting the welding torch
(+) Current socket with fine thread 1
For connecting the power cable from the interconnecting hosepack
SpeedNet connection 1
For connecting the SpeedNet cable from the interconnecting hosepack
Shielding gas connection 1
Welding torch connection 2
For connecting the welding torch
(+) Current socket with fine thread 2
For connecting the power cable from the interconnecting hosepack
Shielding gas connection 2
SpeedNet connection 2
For connecting the SpeedNet cable from the interconnecting hosepack
Coolant connection
For connecting the coolant connection from the interconnecting hosepack
(8)
1 2
1
1
1 Air in
2
2
2
(5) (6) (7)
(12)
1 2
1
1
1 Air in
2
2
2
(9) (10) (11)
