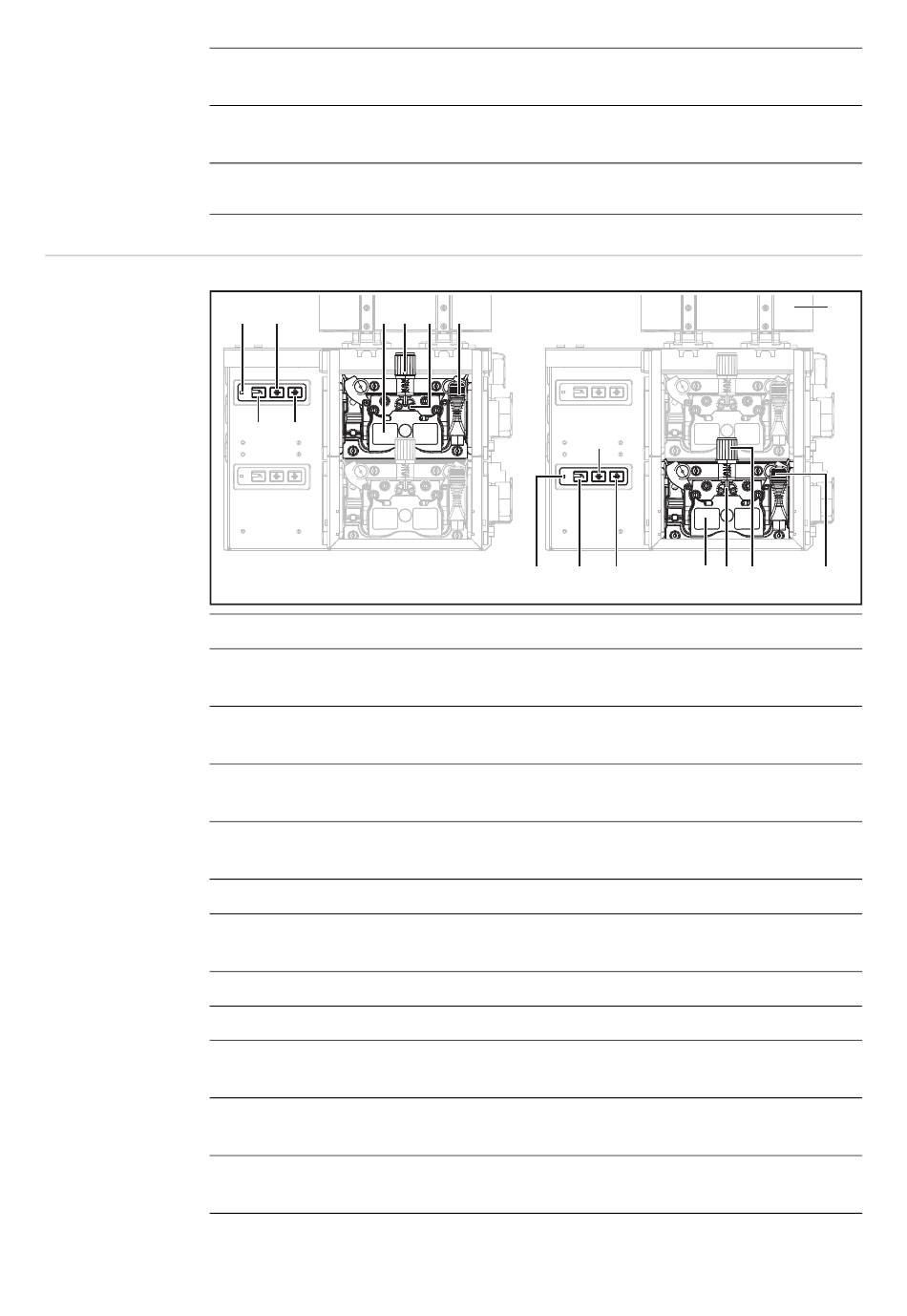

Wirefeeder Side

No.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
56
Coolant supply connection (blue)
For connecting the coolant hose from the torch hosepack
Coolant return connection (red)
For connecting the coolant hose from the torch hosepack
Compressed air connection IN
OPT/i WF gas purging option 16 bar
(1) (3) (5) (6)
(2) (4)
Function
Operating status LED 1
illuminates green if wirefeeder unit 1 is ready for operation
Gas-test button 1
for setting the required gas volume on the pressure regulator
Wire-return button 1
retract the wire electrode without gas or current
Wire-threading button 1
for threading the wire electrode into the torch hosepack without gas or current
4-roller drive 1
Clamping lever 1
for adjusting the contact pressure of the feed rollers
Protective cover of the 4-roller drive 1
Welding torch clamping lever 1
Operating status LED 2
illuminates green if wirefeeder unit 2 is ready for operation
Wire-return button 2
retract the wire electrode without gas or current
Gas-test button 2
for setting the required gas volume on the pressure regulator
Wire-threading button 2
for threading the wire electrode into the torch hosepack without gas or current
(7) (8)
(11)
(9) (10) (12) (13) (14) (15)
(17)
(16)
