Using the Zoom Level Display

The Zoom Level Display magnifies your view of an image,
much like the Magnifying Lens tool in the Preview Window.
The magnification factor in both Zoom Level Display and the
Magnifying Lens tool is by a factor of 2. Thus, the magnifica-
tion levels increase from 100% to 200%, to 400%, and to the
maximum 800%.
To use the Zoom Level Display:
Click on the Zoom Level box. From the drop-down menu that
appears, select your zoom or magnification level.

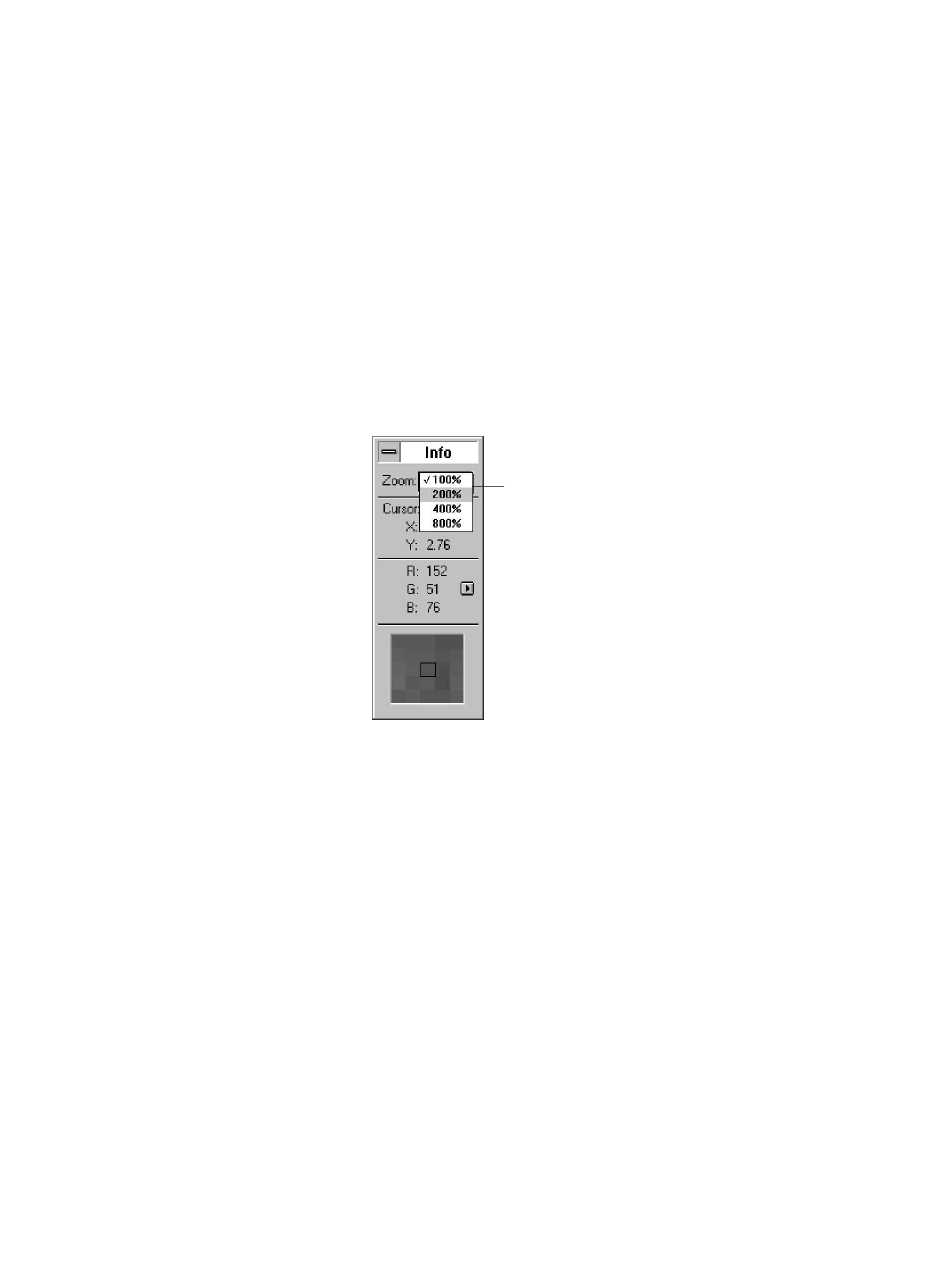

Click here to
display the drop-
down menu, and
then select your
zoom level.

Using the Cursor Locator

The Cursor Locator shows you where the cursor is on the x
(horizontal) and y (vertical) coordinates of the axis. This
feature is useful for operations that require very precise
measurements and alignment.
Reference: The Information Window 5-81
