Rulers

The rulers on both sides of the preview window help you with
operations that need precise measurement and alignment of
your image.
The unit of measurement in the rulers is determined by the
unit of measurement you have selected. This can be done
either in the Image Dimension controls, located in the Settings
window, or by clicking on the ruler unit button at the 0,0 point
of the rulers in the Preview window.
Depending on your chosen unit of measurement, the rulers
can mark off measurement in these units: inch, centimeter,
millimeter, point, and pixel. The pixel option is dimmed if the
selected resolution unit is lpi.

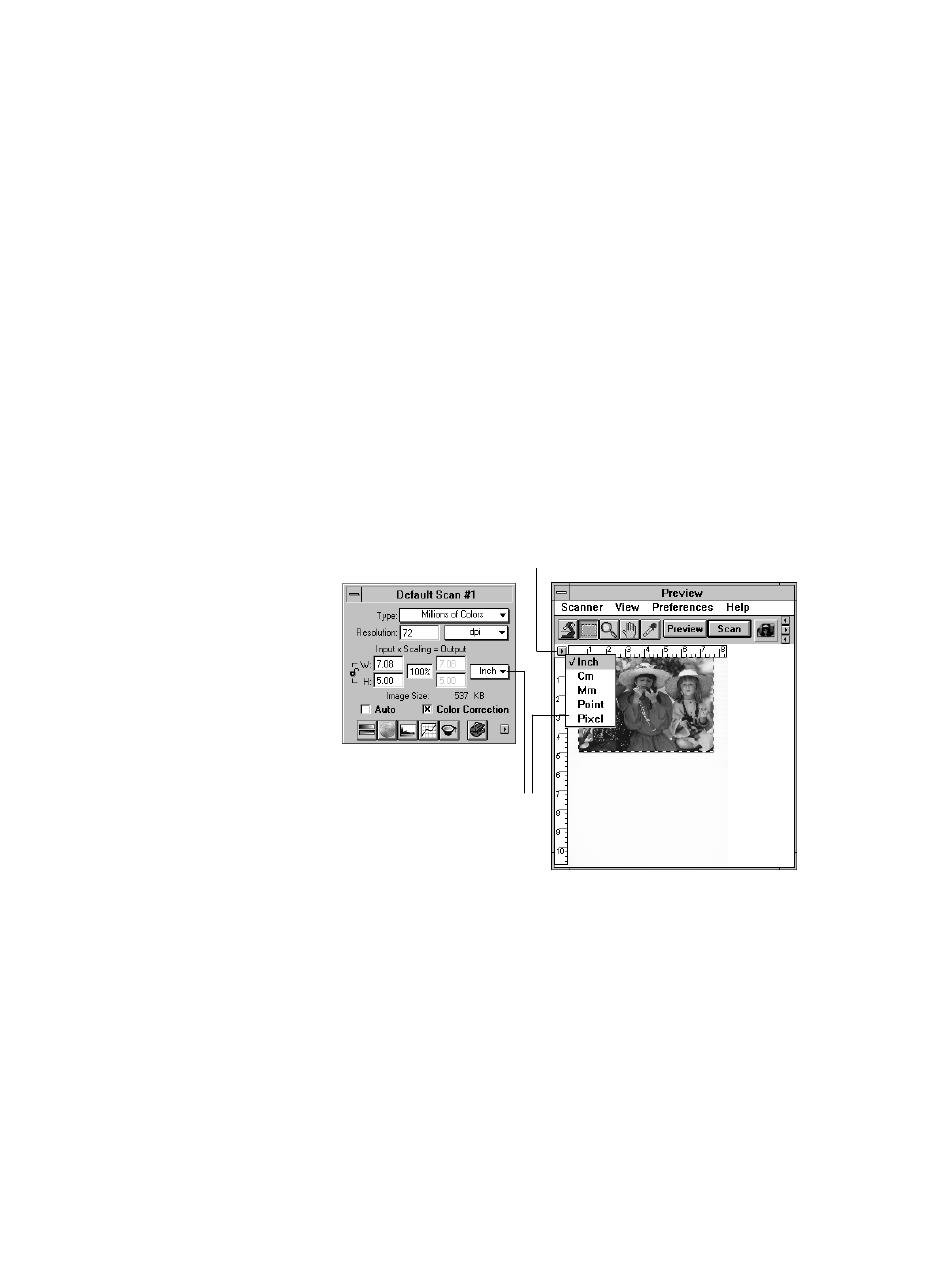

Pressing the ruler unit button
displyas the measurement menu.
Select the unit of
measurement for the
rulers in either the
Settings window or
the Preview window.
To select the unit of measurement for the rulers:
Click on the unit box in the Settings window, or click on the
ruler unit button at the 0,0 point of the rulers in the Preview
window. When the submenu appears, select the unit of
measurement.
Reference: The Preview Window 5-37
