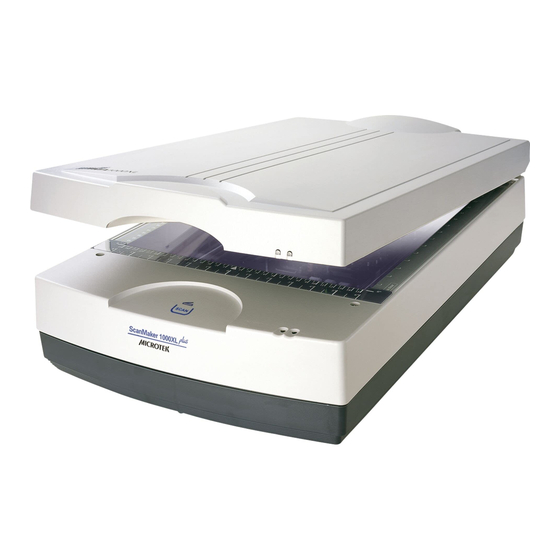

Microtek Scanner
Installation Guide
for the ScanMaker
This document provides information on how to install your Microtek scanner on a PC or Mac using the scanner's SCSI
interface. For PC SCSI installation, see pages 1 to 5. For Mac SCSI installation, see pages 6 to 8.
1. Unpack scanner
Open your scanner package and check the
components as stated in your packing list. Install the
software first, then the hardware. Before proceeding
any further, check that you have the items listed on
the packing list. If any item is missing, contact
Microtek.
Energy Star Notice
As an ENERGY STAR Partner,
Microtek International, Inc. has
determined that this scanner
meets the ENERGY STAR
guidelines for energy efficiency.
Copyright © 1999 Microtek International Inc.

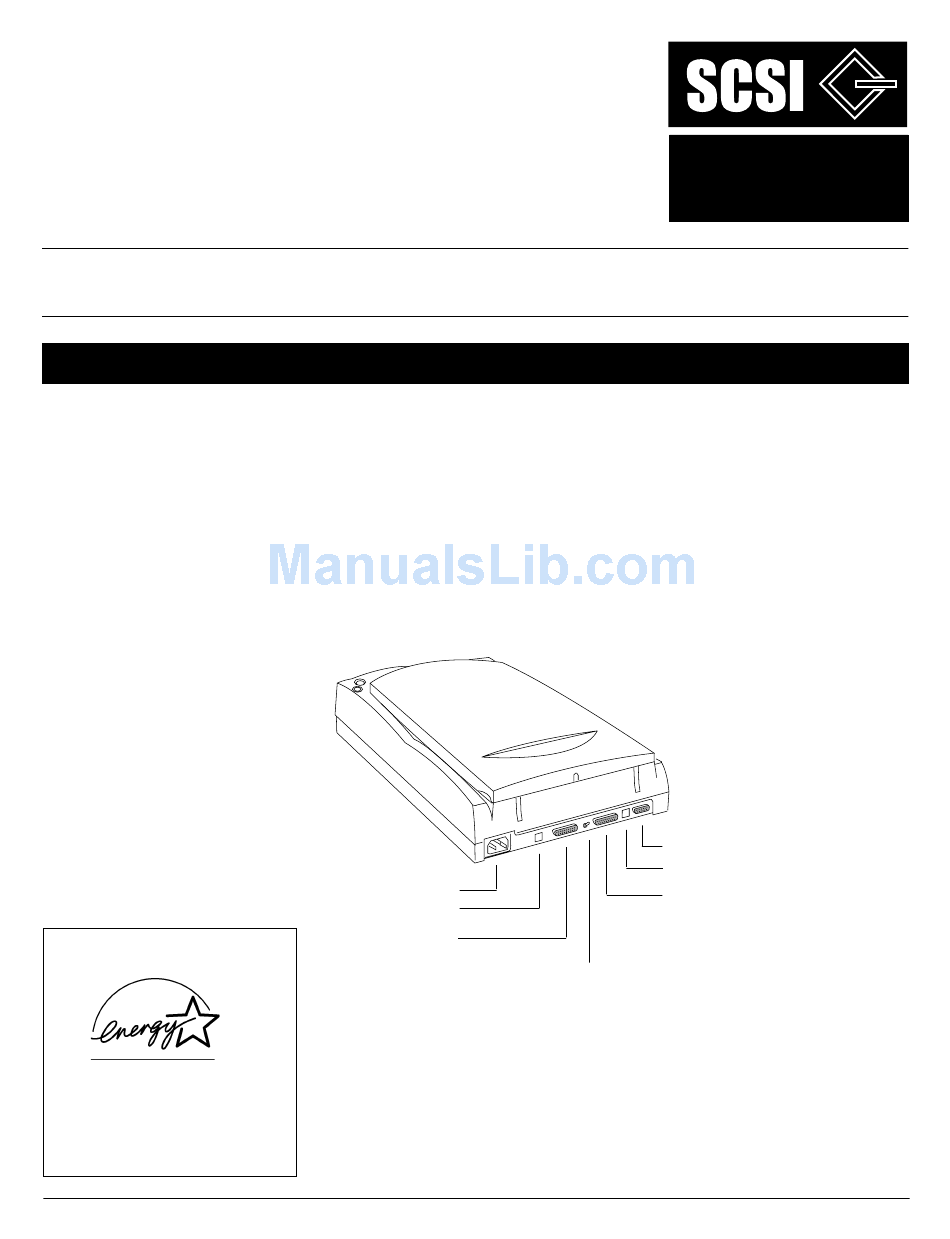

SCSI Installation on the PC
Power Cord
SCSI ID Dial
SCSI Port 2
http://www.microtekusa.com
®
series
Your Microtek ScanMaker scanner comes with two
built-in interfaces: SCSI and USB. For SCSI
installation, use the scanner' s SCSI port. See the
graphic below to locate the different ports on the
back of the scanner, including the scanner accessory
port.
Terminator Switch
Note: Make sure the SCSI ID number for your scanner,
which is preset to 6, does not conflict with the SCSI IDs of the
other devices on your SCSI chain. If you need to change the
SCSI ID on your scanner, turn the dial and choose a SCSI ID
number from 0 to 5 (do not use 7, 8, or 9).
Version
®
for PC (Windows
95/98/NT4.0)
& Mac (OS 8.1 or later)
Accessory Port
USB Port
SCSI Port 1
I49-002681A
MQ0009109
