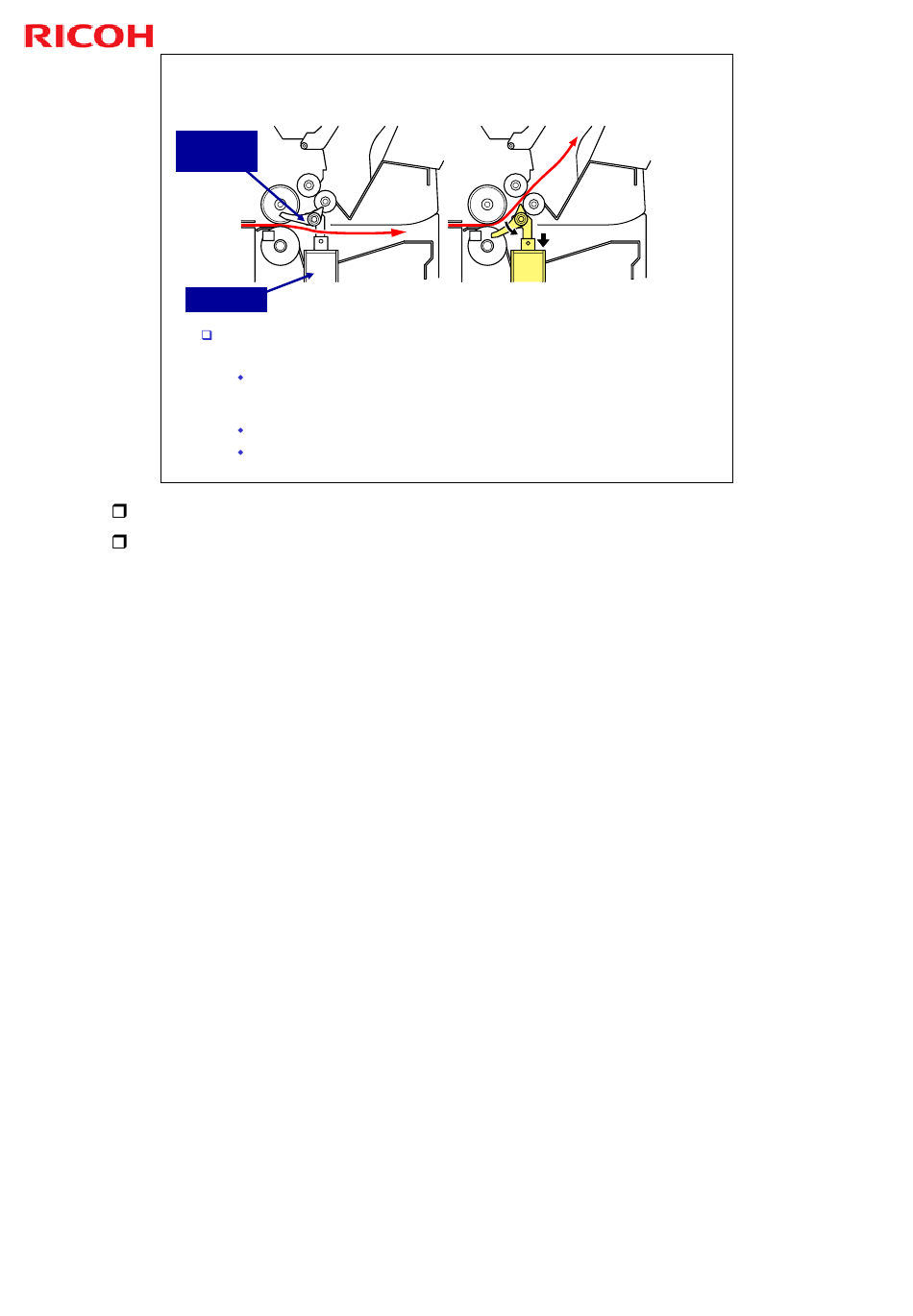

Original Exit Switching
Junction
Gate
Solenoid
Original junction gate solenoid: Directs the original to the top exit or
to the rear exit
Solenoid on: Junction gate is down, paper goes to the top exit- turns
on when the registration sensor detects the leading edge of the
original
Solenoid off (default): Rear exit
Depends on an operation panel selection
Slide 134
The mechanism is described on the slide.
For recommendations on which exit to use, see the Operating Instructions.
Copy Reference – Placing Originals – Original and Copy
134
Beluga-C1/C1.5 Training
Output Locations
