Installing the unit
DSLPipe/CellPipe Quick Setup

Connecting DSL-2S cables

Description

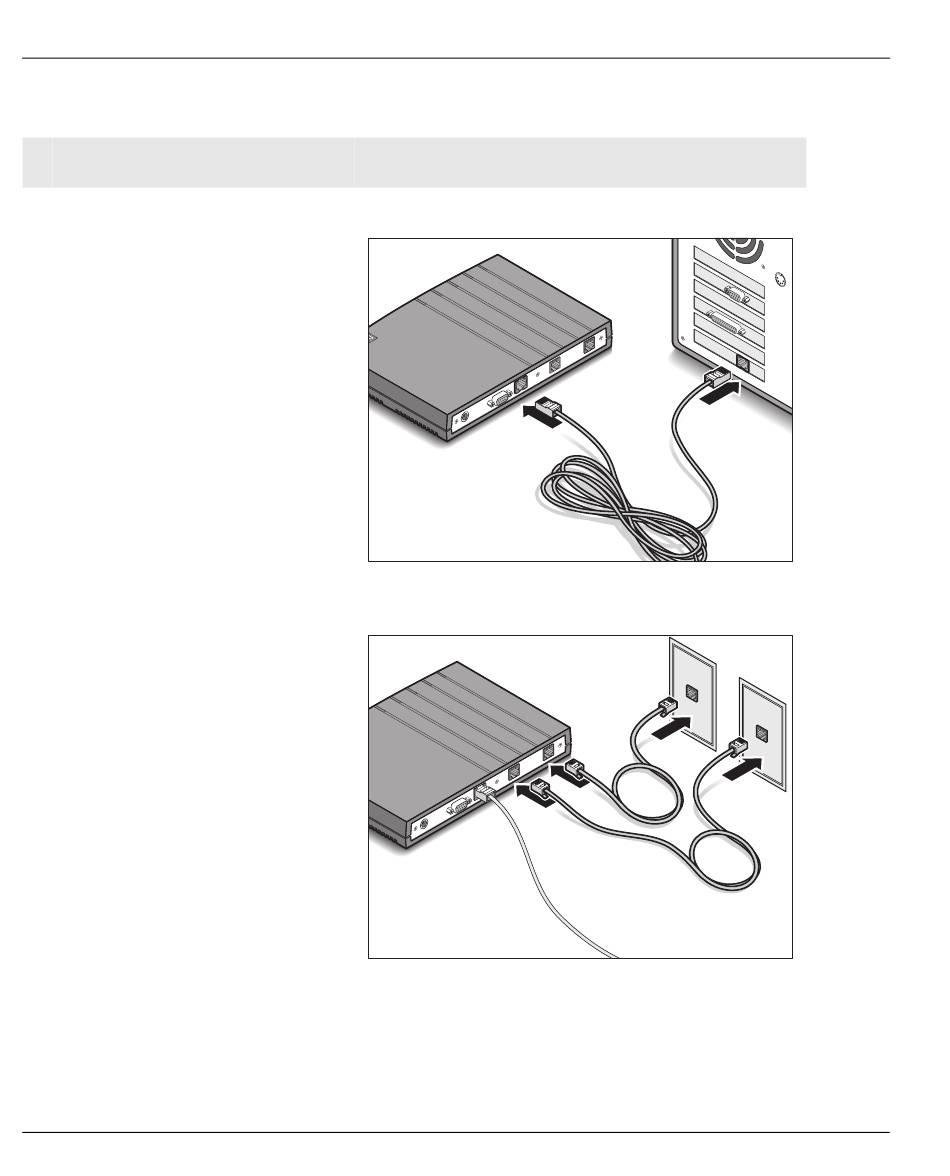

1 Connect the yellow crossover
Ethernet cable from the port
labeled 10BT on the DSLPipe to
the Ethernet adapter in your
computer.
To connect the DSLPipe to an
Ethernet hub, use your own
straight-through Ethernet cable.
2 Connect the WAN cables from
the DSLPipe to wall jacks. Only
one WAN cable (blue) is
supplied.
If your jack supports two lines,
you can use a single cable for
both connections. Connect from
the port labeled
WAN 1-2
jack.
1-18
Illustration
P W
to the
L
IN A
R M
T E
R
P W
N 1
W A
N 2
W A
B T
1 0
L
IN A
R M
T E
R
N 1
W A
N 2
W A
B T
1 0
DSLPipe/CellPipe Quick Setup
