Installing the unit
DSLPipe/CellPipe Quick Setup

Connecting DSL-ACAP or DSL-DMT cables

Description

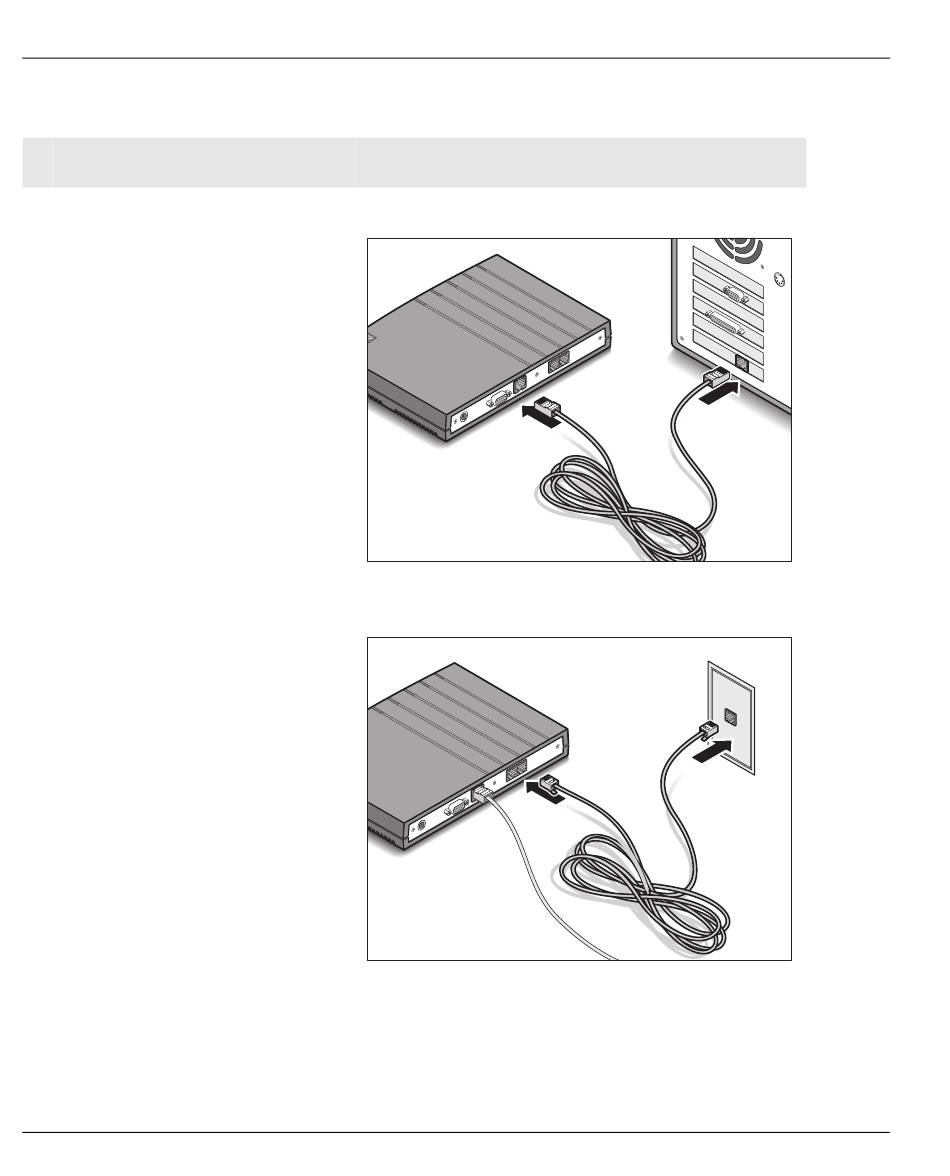

1 Connect the yellow crossover
Ethernet cable from the port
labeled 10BT on the DSLPipe to
the Ethernet adapter in your
computer.
To connect the DSLPipe to an
Ethernet hub, use your own
straight-through Ethernet cable.
2 Connect the blue WAN cable to
the port labeled WAN on the
DSLPipe and plug the other end
into the wall jack.
1-14
Illustration
B T B T
1 0 1 0
L L
IN A IN A
R M R M
T E T E
R R
P W P W
N
W A
T E R
L IT
S P
B T
1 0
L
IN A
R M
T E
R
P W
N N
W A W A
R R
T E T E
L IT L IT
S P S P
DSLPipe/CellPipe Quick Setup
