Installing the unit
DSLPipe/CellPipe Quick Setup

Connecting the DSL-Cell-50S or the DSL-S cables

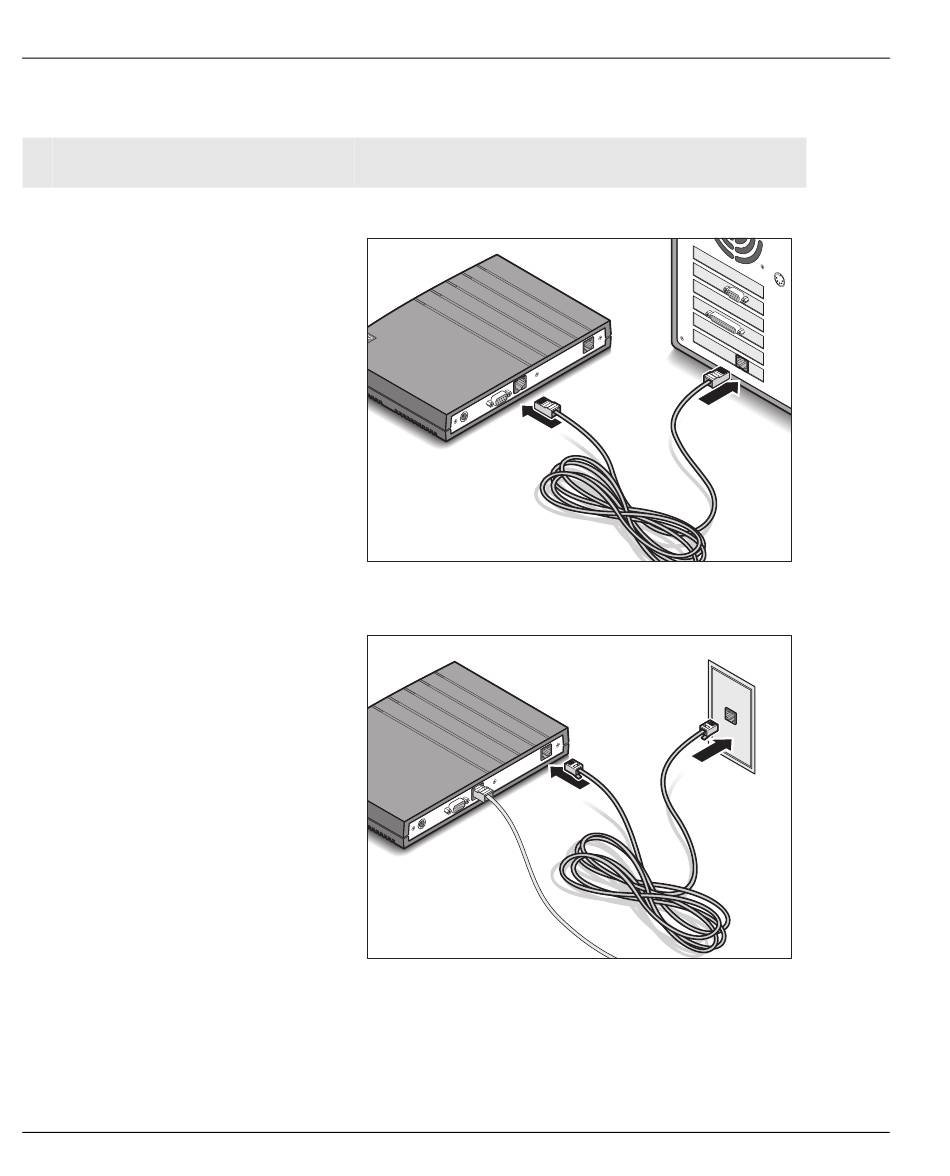

Description
1 Connect the yellow crossover
Ethernet cable from the port
labeled 10BT on the
DSLPipe/CellPipe to the
Ethernet adapter in your
computer.
To connect the
DSLPipe/CellPipe to an Ethernet
hub, use your own
straight-through Ethernet cable.
2 Connect the blue WAN cable to
the port labeled WAN on the
DSLPipe/CellPipe and plug the
other end into the wall jack.
1-16
Illustration
B T B T
1 0 1 0
L L
IN A IN A
R M R M
T E T E
R R
P W P W
W A
B T
1 0
L
IN A
R M
T E
R
P W
N N
W A W A
N
