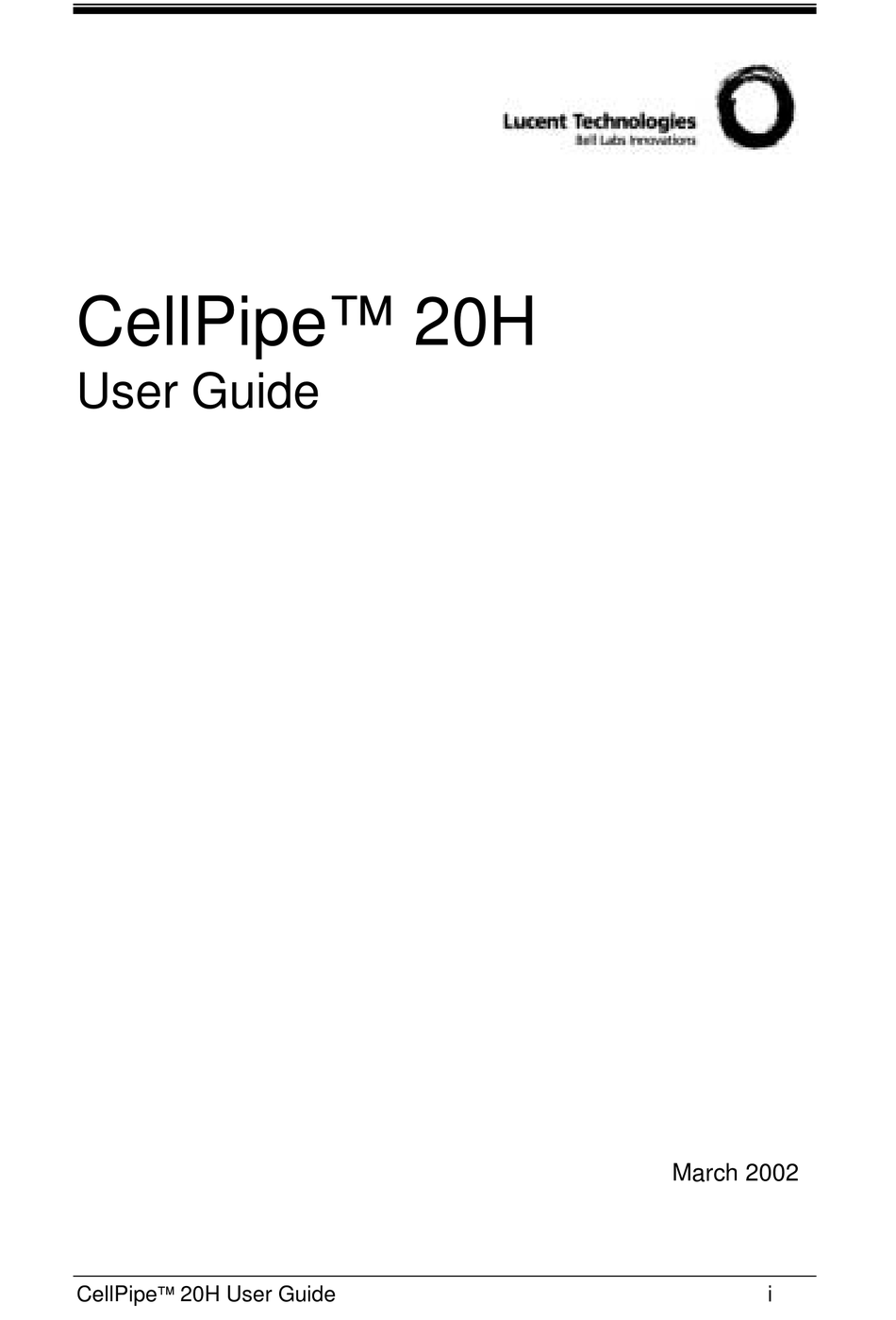

CellPipe™ 20H

User Guide

March 2002
CellPipe 20H User Guide
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CellPipe 20H and is the answer not in the manual?

Questions and answers

Related Manuals for Lucent Technologies CellPipe 20H

Summary of Contents for Lucent Technologies CellPipe 20H

  • Page 1: User Guide

    CellPipe™ 20H User Guide March 2002 CellPipe 20H User Guide...
  • Page 2 Copyright © 2001, 2002 Lucent Technologies Inc. All rights reserved. This material is protected by the copyright laws of the United States and other countries. It may not be reproduced, distributed, or altered in any fashion by any entity (either internal or external to...
  • Page 3 (EMI) and network compatibility requirements of your country. See the warranty card included in your product package for the limited warranty that Lucent Technologies provides for its products. Security Statement In rare instances, unauthorized individuals make connections to the telecommunications network through the use of access features.
  • Page 4 CellPipe 20H User Guide...

  • Page 5: Finding Information And Software

    Customer Service Product and service information, and software upgrades, are available 24 hours a day. Technical assistance options accommodate varying levels of urgency. Finding information and software To obtain software upgrades, release notes, and addenda for this product, log in to Lucent OnLine Customer Support at http://www.lucent.com/support.
  • Page 6 • Whether you are routing or bridging with your Lucent product • Type of computer you are using • Description of the problem Obtaining assistance through email or the Internet If your services agreement allows, you can communicate directly with a technical engineer through Email Technical Support or a Live Chat.

  • Page 7: Table Of Contents

    Contents Customer Service ............v Finding information and software ......v Obtaining technical assistance ........v Chapter 1 Overview ............1 1 Features ..............1 2 Packaging............2 3 Appearance ............3 4 Hardware Installation ...........4 5 Management............5 6 Default values ............6 7 Software Upgrade..........7 Chapter 2 CLI Operation ..........9 1 Console set up.............9 2 How to switch between bridge and router..10 3 Setting up a Bridge (RFC 1483 bridge)....10...
  • Page 8 viii CellPipe 20H User Guide...

  • Page 9: Chapter 1 Overview

    Chapter 1 Chapter 1 Overview The CellPipe 20H is a G.SHDSL router, equipped with a built-in 4-port 10BaseT Ethernet hub. The CellPipe 20H can be configured to inter-operate with G.SHDSL DSLAM or to fit Point-to-Point data transmission application by flexible CO/RT configurations.

  • Page 10: Packaging

    Chapter 1 2 Packaging This package consists of the following items 1 The G.SHDSL ROUTER unit 2 RJ-45 cable RJ-11 cable AC Adapter Manual CellPipe 20H User Guide...

  • Page 11: Appearance

    Chapter 1 3 Appearance Front Panel ALM: Blink while booting up, and On when there is an error WAN: Blink while training with DSLAM and On when SDSL link is ready LINK: On while one of Ethernet ports is properly connected to a LAN or ACT: Blink while transmitting or receiving packets over one of Ethernet ports PWR: On while the power supply is properly connected.

  • Page 12: Hardware Installation

    Chapter 1 4 Hardware Installation 1. Connect the DSL cable to the LINE port of RJ-11 socket. 2. Use a RJ-45 cable to connect the to the LAN or CellPipe a PC with Ethernet adapter installed. Note: Be sure to use RJ45 crossover cable while connecting to a hub.

  • Page 13: Management

    Chapter 1 5 Management CellPipe 20H supports simple, flexible and easy-to-operate methods for management purpose. The CellPipe 20H can be managed via the following paths, refer to Appendix B for detailed information. Console port – use the RS-232 cable for connecting...

  • Page 14: Default Values

    Chapter 1 6 Default values CellPipe 20H is pre-configured with the following parameters; you may also re-load the default parameters by selecting Default from the main menu. For hub operation, only half-duplex mode will be allowed. Default mode: Bridge Factory Password: Bridge mode setting G.SHDSL setting...

  • Page 15: Software Upgrade

    Chapter 1 7 Software Upgrade You may easily upgrade the CellPipe 20H embedded software by obtaining the compressed upgrade kit from the service provider then following the steps: Extract the ZIP file for updated firmware Connect via the local Ethernet port or remote...
  • Page 16 Chapter 1 CellPipe 20H User Guide...

  • Page 17: Chapter 2 Cli Operation

    Chapter 2 Chapter 2 CLI Operation 1 Console set up Connect the RS-232 console port to an ASCII data terminal or a PC with Widows serial Terminal mode of VT-100 (Hyper Terminal). To Start the Hyper-terminal, following the steps below: 1.

  • Page 18: How To Switch Between Bridge And Router

    Chapter 2 2 How to switch between bridge and router Please see the command below for detailed command setting MODE Select the device as Bridge or router mode Syntax: Mode Parameters: The default is bridge mode. Example: >> mode The word with background “ “...
  • Page 19 Chapter 2 EXAMPLE >> mode (with “enter” key to execute) Please select bridge or router:(b/r,r) b (with “enter” key to execute) Current mode is bridge 3.2 Set up RFC 1483 bridge RFC1483 bridging connection. Allow only one client passing ADSL modem to access WAN network. Please see figure below for example of network configuration DSLAM ISP/Corporate...
  • Page 20 Chapter 2 Enable Spanning tree? (y/n) : (setting Spanning tree “y” for enable) The following (example) will be displayed for checking your setting Configuration MODE: Bridge FUNCTION: R1483 Spanning Tree: Enable # VPI Package filter 1: 2 Preserve the configuration (y/n) : (“y” to use the setting or “n”...

  • Page 21: Setting Up Router

    Chapter 2 4 Setting up Router The word with background “ “ is prompt following by a command 4.1 Status check If you are in Bridge mode use “mode” command to switch to Router mode before setting parameters. MODE Select the device as Bridge or router mode Parameters: The default is bridge mode.
  • Page 22 Chapter 2 4.2 Set up 1483 Routing 4.2.1 RFC 1483 routing connection. Allow one client or multi-clients (need extra HUB) passing ADSL modem, using RFC1483 routing to access WAN network. Please see figure below for example of network configuration 192.168.1.50 DSLAM 210.62.8.2 210.62.8.1...
  • Page 23 Chapter 2 The following (example) will be displayed for checking your setting Configuration MODE: Router FUNCTION: R1483 Ethernet IP: 192.168.1.1 Subnet Mask: 255.255.255.0 # VPI WAN IP 1: 8 192.168.1.2 Preserve the configuration (y/n) : (“y” to use the setting or “n”...
  • Page 24 Chapter 2 You have to repeat this command if more than one PVC had been configured) (Use the same command with “disable” attribute to disable NAT function) If you have any application or server in your LAN environment which is available for outside uses, please configure the PAT (port address translation) table to enable this kind of service by following the example below, otherwise continue to section 4.2.4...
  • Page 25 Chapter 2 Wait until the following message displayed on your screen completely. Don’t power off the modem during this stage. Saving configuration... Configuration saved. Updating flash filing system ... SDRAM size = 0x800000 Booting... System starts... 4.3 Set up IPoA Routing 4.3.1 IPoA (IP over ATM) routing connection.
  • Page 26 Chapter 2 4.3.2 Step by step setting >> quick R1483(r)/ IPoA(i)/ PPPoA(p)/ PPPoE(pe):(selecting “i” for IPoA routing) Ethernet IP (192.168.1.1) : (set LAN IP address) Subnet mask (255.255.255.0) : (set mask) VPI(0-1023): (set VPI value) VCI(1-65535): (set VCI value) WAN IP : (set WAN IP address) Gateway : (set Gateway IP address) Add another PVC ? (y/n): (setting another PVC with “y”...
  • Page 27 Chapter 2 Configuration will have no effect until after save and restart. All the parameters will not be effective under the setting being saved and restart again. Above message is to remind operator. 4.3.3 Nat function This function will enable PC users in your LAN environment to access outside with only one IP address (IP sharing) and one access account.
  • Page 28 Chapter 2 (192.168.1.3 – WAN IP address of IPoA routing. Replaced with specific WAN IP address set for IPoA routing in this example. PAT table is service related ) (434- port number of services or application to offer) (udp – protocol used. Use ”tcp” for tcp/ip services) (210.18.35.10 –...
  • Page 29 Chapter 2 4.4 Set up PPPoA Routing 4.4.1 PPPoA (PPP over ATM) routing connection. Allow one client or multi-clients (need extra HUB) passing ADSL modem, using PPPoA routing to access WAN network. Please see figure below for example of network configuration.
  • Page 30 Chapter 2 User name: (set user name from ISP) Password: (set password) Retype password: (reconfirm password) The following (example) will be displayed for checking your setting Setup Configuration FUNCTION: PPPOA Ethernet IP: 192.168.1.1 Subnet Mask: 255.255.255.0 # VPI AUTH USERID 1: 7 CHAP xavi...
  • Page 31 Chapter 2 Use the following example to set NAT function for PPPoA routing. > pat ( with “enter” key to go to pat director) > pat> addpatin pppoa 434/udp 210.18.35.10 (Addpatin – command for add incoming pat table) (pppoa – set PAT table for PPPoA routing. PAT table is service related ) (434- port number of services or application to offer) (udp –...
  • Page 32 Chapter 2 SDRAM size = 0x800000 Booting... System starts... 4.5 Set up PPPoE Routing 4.5.1 PPPoE (PPP over Ethernet) routing connection. Allow one client or multi-clients (need extra HUB) passing ADSL modem, using PPPoE routing to access WAN network. 192.168.1.50 210.62.8.2 DSLAM 210.62.8.1...
  • Page 33 Chapter 2 Subnet mask (255.255.255.0) : (set mask) VPI(0-4095): (set VPI value) VCI(1-65535): (set VCI value) Authentication(PAP(p)/CHAP(c)/None(n)):(selecting authentication method) User name: (set user name) Password: (set password) Retype password: (reconfirm password) The following (example) will be displayed for checking your setting Setup Configuration FUNCTION: PPPOE Ethernet IP: 192.168.1.1...
  • Page 34 Chapter 2 NAT function 4.5.3 NAT function will be enabled automatically when PPPoE routing set. This function will enable PC users in your LAN environment to access outside with only one IP address (IP sharing) and one access account. If you have any application or server in your LAN environment which is available for outside uses, please configure the PAT (port address translation) table to enable this kind of service by following the example...
  • Page 35 Chapter 2 Saving configuration... Configuration saved. Updating flash filing system ... SDRAM size = 0x800000 Booting... System starts... 4.6 Set up DHCP (Dynamic host configuration protocol) server function The DHCP server function allows hosts (PCs, etc.) to get IP address and DNS server address from the router automatically.
  • Page 36 Chapter 2 previously. For example 192.168.1.1 – start IP address of segment 1; 192.168.1.10 – end IP address of segment 1; 192.168.1.20 – start IP address of segment 2; 192.168.1.30 – end IP address of segment 2) Continue setting up DNS server address for assigning to >...
  • Page 37 Chapter 2 4.7 DNS (Domain name server) relay setting The DNS relay function allows DNS request to be terminated in the router. To make this function effective, the DNS address on PCs should be set to the LAN IP address of router. Refer to the LAN IP address set for the routing function (RFC1483 or IPoA or PPPoA or PPPoE) previously.
  • Page 38 Chapter 2 Booting... System starts... CellPipe 20H User Guide...

  • Page 39: Appendix A Specifications

    Appendix A Appendix A Specifications A-1 Hardware Specifications LAN Interface • Type – 4-port 10BaseT Ethernet hub, IEEE 802.3 • Connector -- RJ-45 G.SHDSL Line Interface • Compliance: ITU-T G.991.2 • Line Impedance: 135 Ω • Connection Loops: One Pair (2-wire) •...

  • Page 40: Software Specifications

    Appendix A A-2 Software Specifications • ATM Cell over AAL5 • Bridge mode: Support 8 PVCs • Router mode: Support 5 PVCs • Support UBR, CBR and VBR-nrt • Bridging • Transparent Bridging (IEEE 802.1D) • RFC 1483 • Spanning Tree Protocol (IEEE 802.1D) •...
