PLANET ECLIPSE GEO2 Operator's Manual page 7

ecliPse sHaft4 barrel
The Eclipse Geo2 comes as standard with an Eclipse Shaft 4 barrel.
The barrel screws into the body of the Geo2 using a right hand thread meaning that if you
hold the Geo2 pointing away from you the barrel screws into the body in a counter-clockwise
direction.
2

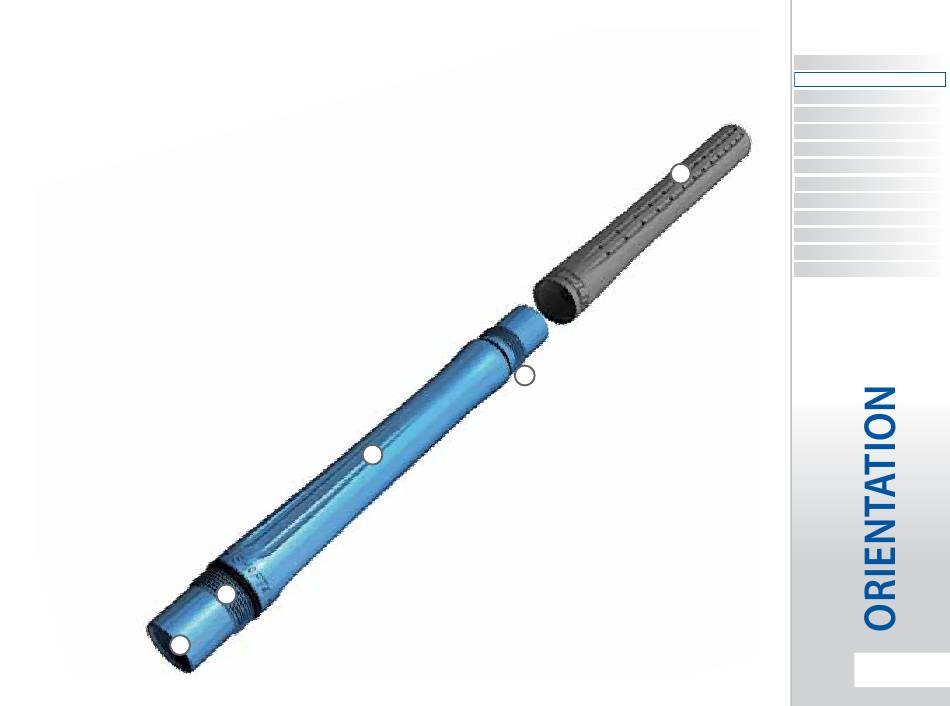

The barrel comprises of two parts, a barrel back and a barrel front . The two parts are
joined together with a left hand thread meaning that if you hold the barrel, with the back
nearest you, the front unscrews in a counter-clockwise direction. The bore size of the barrel
back is engraved at the end of the barrel back .
On the barrel back there is a 016 Nbr 70 o-ring
loose from the Geo2 body when the marker is fired. There is also a 015 Nbr 70 o-ring on the
e
tip of the barrel back helps with alignment when the two sections are screwed together.
replace and lubricate these o-rings with Eclipse Grease as necessary.
c
1
a b
c
3
d
which prevents the barrel from vibrating
a
d
e
The bore size of your Shaft4 may vary according to
1
the model of Geo2 you have.
2 The Geo2 will only accept COCKER Threaded barrels.
Do not use any other type of barrel thread.
The Eclipse Shaft4 front and back barrel sections are
3
not interchangeable with older version shaft front
and back barrel sections (including Shaft3 barrel kits).
4 The model of barrel accompanying your Geo2 may
differ from above.
