PLANET ECLIPSE GEO2 Operator's Manual page 62

(continued)

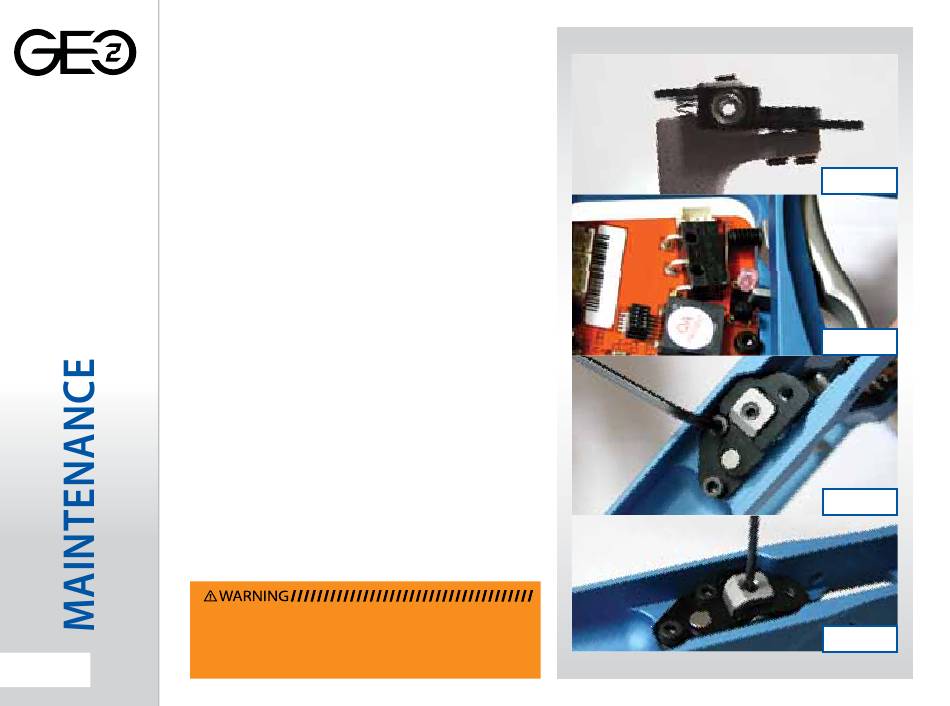

replace the trigger spring into the spring hole in the top
of the trigger and position the trigger so that the hole
through the trigger lines up with the holes in the bearing
carrier, slide the trigger pin in place
Gently lower the trigger assembly and bearing carrier into
the frame, taking care not to damage the micro-switch or
the Opto sensor, and ensuring that the trigger is positioned
correctly
the two screws that hold the bearing carrier in place in the
top of the Geo2 frame
key tighten down the trigger pin retaining set screw
fiGure 14.9).
you have now stripped and cleaned your Geo2 trigger
assembly.
1 DO NOT fully tighten the trigger pin retaining screw until the
bearing carrier has been secured in the frame. This is to ensure the
trigger pin is correctly lined up against the side wall of the frame.
WarninG: if You are at all unsure at PerforminG
tHe maintenance Procedure Please contact Your
nearest ecliPse serVice centre. (see PaGe 69)
