PLANET ECLIPSE GEO2 Operator's Manual page 27

tHe actual
rate of fire

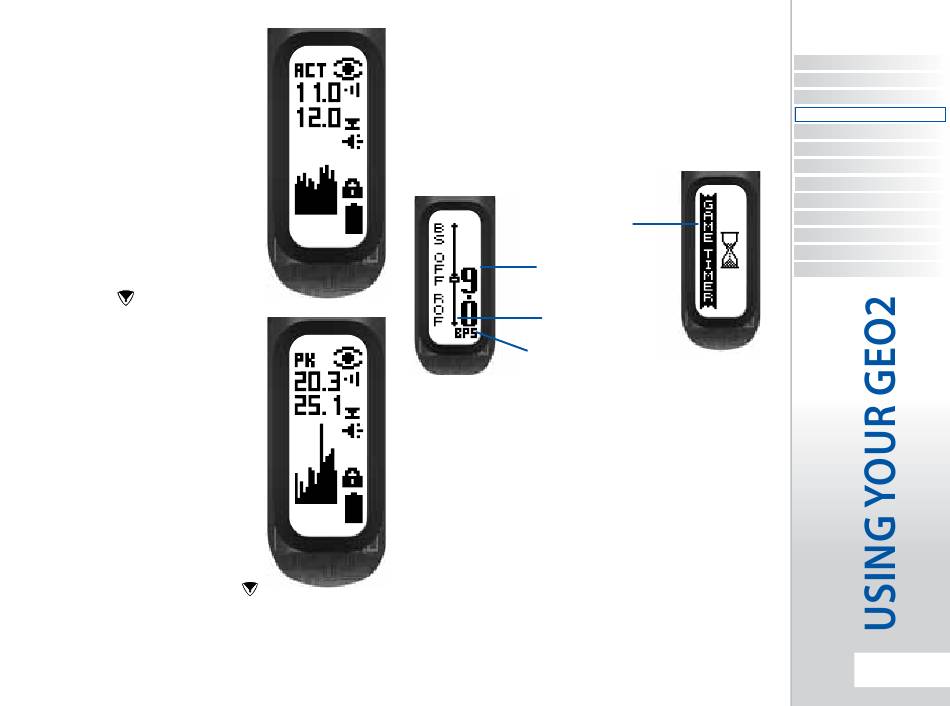

when the actual rOF is selected
for display the run screen will look
something like the screen to the
right. The value displayed in the
top left of the screen represents the
number of full cycles completed in
a second - the actual rate of fire over
that second. The value below it is the
maximum actual rate of fire that has
been achieved. The graph below this
number shows the actual rates of fire
achieved over time where each bar
represents the amount of pulls in that
second. To reset the maximum, press
and hold the button for 1 second.
tHe PeaK rate
of fire
when the peak rOF is selected for
display the run screen will look
something like the screen to the
right, which differs from the display
of the actual rOF by the inclusion
of the indicator 'PK' . The value
displayed in the top left of the screen
represents the maximum rate of fire
that has been recorded over the last
second. The value below it is the
maximum peak rate of fire that has
been achieved. The graph below
this number shows the peak rates
of fire achieved over time. To reset
this maximum, press and hold the
button for 0.5 seconds.
The peak rOF is typically higher than the actual rOF as it is
much easier to fire two shots in quick succession than it is
to maintain a string over a longer period of time.
tHe menu sYstem
behind the run screen is a structured menu system
comprised of two layers of menus. Each menu contains a
number of menu items and each menu item can either be
a parameter or a branch to another menu. branches have
an animated graphic on the right of the display, whereas
parameters have their current value
tYPical
brancH
tYPical
Parameter
tYPical
ranGe bar
tYPical
Parameter unit
On parameter screens a range bar will be displayed where
there is a large scale of adjustability in that parameter. The
current parameter value is displayed as a box on the range
bar which is used to indicate the range of adjustability in
the parameter value.
At the bottom of the parameter screen the unit for that
parameter will be displayed. Some parameters will not
have units, such as on or off parameters. For a detailed list
of which parameters have units, and what they stand for,
please see the Menu Tree on pages 28-31.
