tHe ecliPse e-Portal
WarninG: de-Gas Your marKer, discHarGinG anY
stored Gas in a safe direction, and remoVe tHe
barrel, loader, air sYstem and anY Paintballs to
maKe tHe marKer easier and safer to WorK on.
The Geo2 is compatible with Eclipse E-Portal Software. This
software is an upgrade to the Geo2 platform. The Eclipse
E-Portal Software, USb cable and USb daughter board are
sold as a kit, separate from the Geo2.
The Eclipse E-Portal allows you to connect the Eclipse Geo2
to a PC, where a number of operations can be performed:
uPdate tHe marKers firmWare - from time to time new
firmware may be released by Planet Eclipse. you can now
download and install the latest firmware using the Eclipse
E-Portal.
alter tHe electronic Parameters - the Eclipse
E-Portal will give you full access to all of the parameters on
the Geo2 circuit board.
customise screen GraPHics - Customise the boot up
screen graphic.
If you already own an Eclipse E-portal kit (such as the kit included
1
with the Eclipse SLS), this kit will be compatible with the Geo2.
Minimum system requirements :
2
Monitor Resolution - 1024x768 or higher, CD-ROM
drive,Keyboard, Mouse, USB socket, 5MB of hard
disk space, 1GHz Processor, 384Mb RAM, Windows
XP/Windows vista/Windows 7, internet connection
(required for software and firmware updates).
1
2

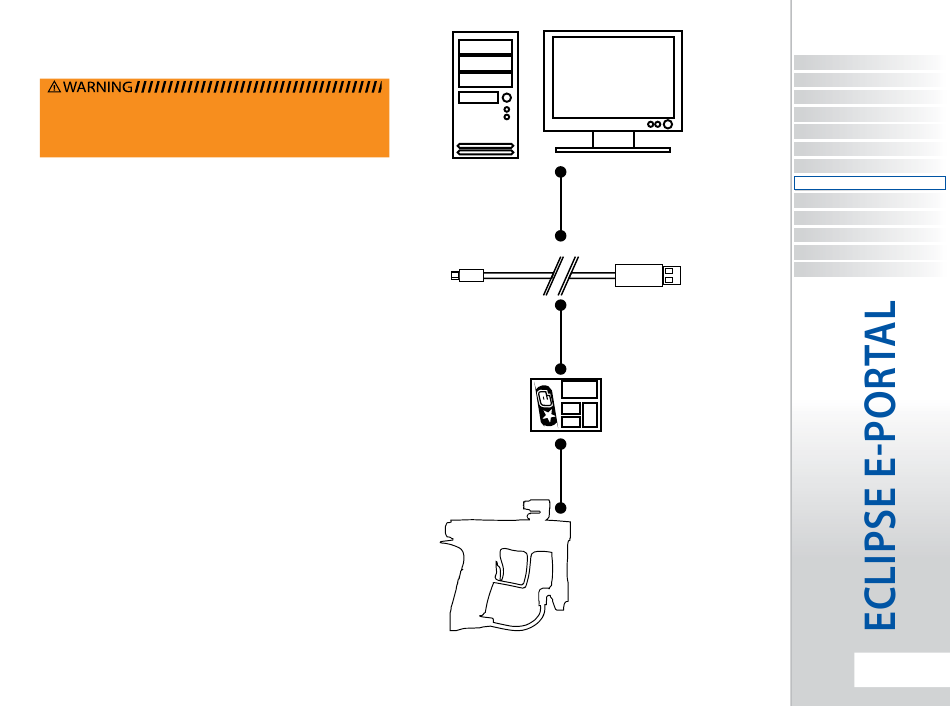

WINDOWS® PC
USB CABLE
EXPANSION BOARD
PLANET ECLIPSE
GEO2
