tHe PusH on/off PurGe
sYstem (PoPs)
WarninG: de-Gas Your marKer, discHarGinG anY
stored Gas in a safe direction, and remoVe tHe
barrel, loader, air sYstem and anY Paintballs to
maKe tHe marKer easier and safer to WorK on.
having disconnected the Macroline hose from the fitting
on the POPS body, fully depress the latch button then
slide the bonnet forward while continuing to depress latch
button (see fiGure 15.1) .
when the bonnet is in the forward position
15.2) remove the latch button and Spring from the bonnet
then slide the bonnet off the POPS body
(see fiGure 15.3)
(see fiGure 15.4) . be careful not to lose the spring.
Carefully slide the Push rod out from either side of the
POPS body, taking care not to lose the two o-rings on the
Push rod .
(see fiGure 15.5)
Clean off any dirt, debris or moisture from the bonnet, the
POPS body and the latch button
remove the POPS insert Assembly using a 5/32" hex key
. remove the POPS Pin from the POPS
(see fiGure 15.7)
insert.
Clean and check the condition of the 007 Nbr70 o-ring on
the outside of the POPS insert, replacing as necessary
.
fiGure 15.8)
(see fiGure
.
(see fiGure 15.6)
(see

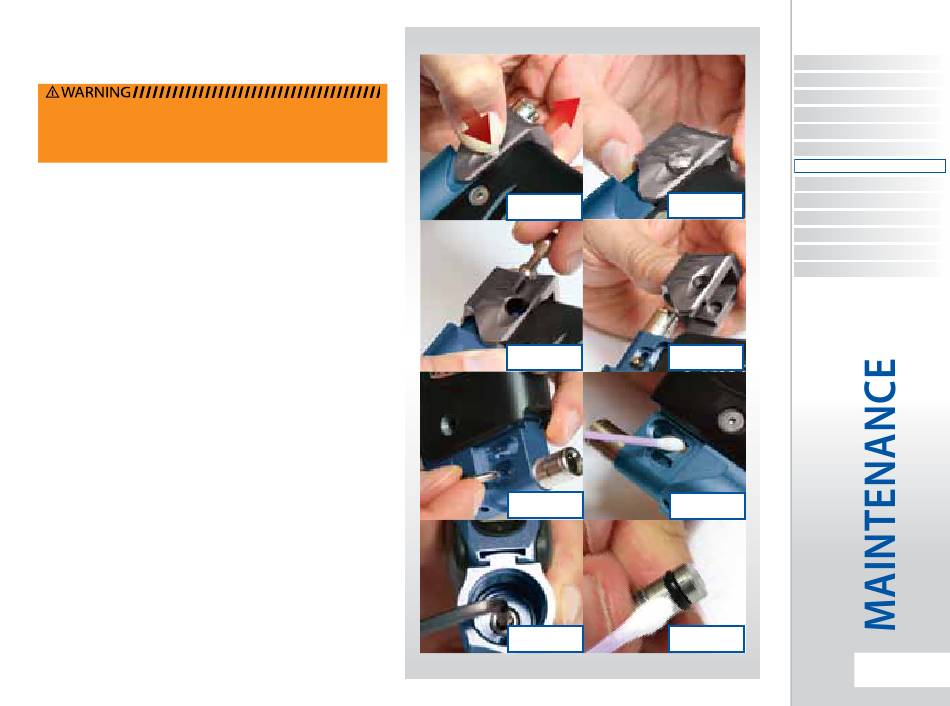

fiG 15.2
fiG 15.1
fiG 15.3 fiG 15.4
fiG 15.5
fiG 15.6
fiG 15.7 fiG 15.8
