The
micro switch activation screw
point in the trigger pull at which the micro-switch is
activated. Turn the screw clockwise to decrease the
amount of trigger travel to the activation point. Turn the
screw counter clockwise to increase the amount of trigger
travel to the activation point (see fiGure 6.4).
The spring return strength screw
first removing the frame from the marker body, as per the
instructions in the Maintenance section on page 55. The
spring return strength screw is used to adjust the spring
strength that returns the trigger to its resting position.
Turn the screw clockwise to increase the amount of spring
return strength in the trigger pull. Turn this screw counter
clockwise to reduce the amount of spring return strength
in the trigger pull. Do not turn the screw too far counter
clockwise or there will not be enough force to return the
trigger consistently
(see fiGure 6.5)
when setting the trigger it is important to ensure that the
electronic trigger detection is working correctly. when the
trigger is fully depressed the trigger detection indicator
(TDi) should point upwards
when the trigger is fully released the TDi should point
downwards
For more information, see understanding the trigger
detection indicator (TDi) on page 25 and The
on page 38.

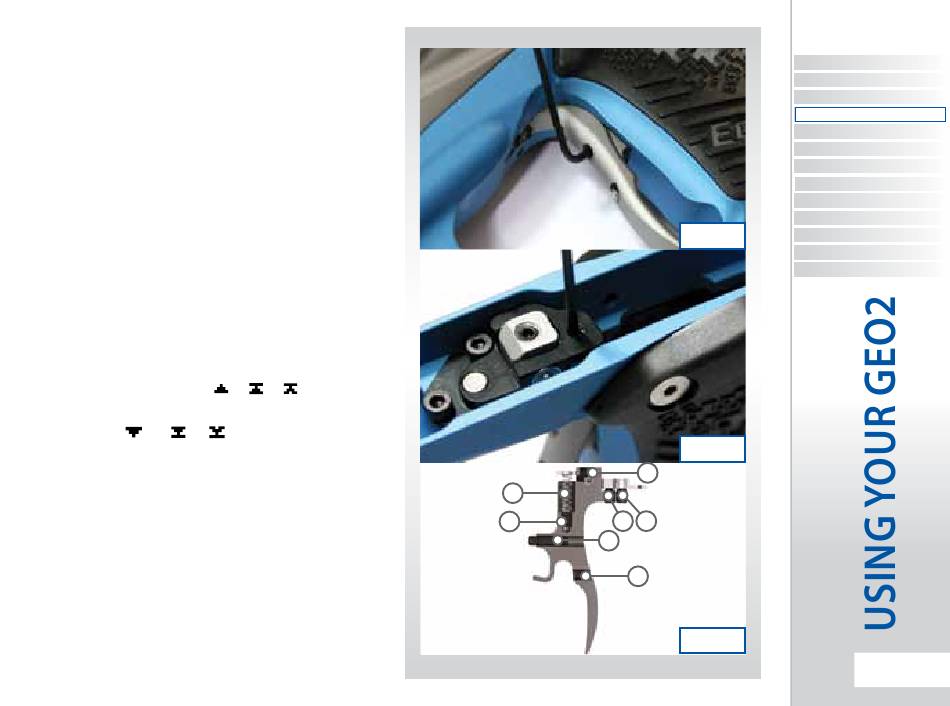

fiGure 6.6 KeY
a Spring
Spring return Strength Screw
b
c Trigger Pin retaining Screw
d Front Stop Trigger Screw
Magnet return Strength Screw
e
f Micro Switch Activation Screw
rear Stop Trigger Screw
G
is used to adjust the
can only be adjusted by
.
.
.
menu
FILTER
c
a
d e
b
f
G
