PLANET ECLIPSE GEO2 Operator's Manual page 47

(continued)

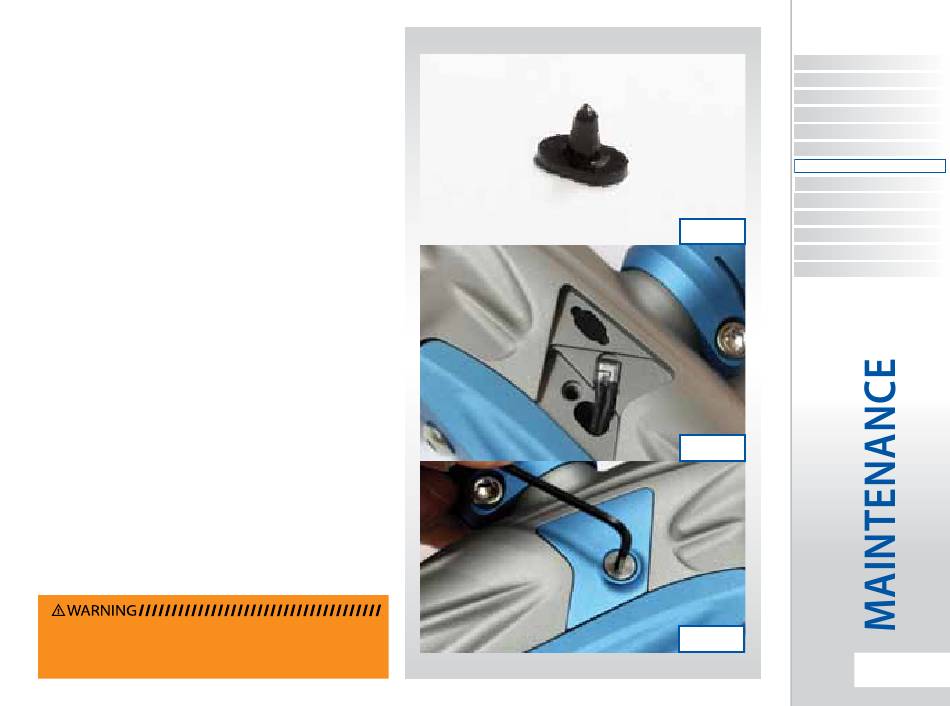

remove the rubber Detent and using a dry cotton bud
clean the Detent and it's location point in the Geo2 body.
(see fiGure 9.4) replace the Detent back into the Geo2
body and place the bbSS back into the designated slot in
the body Ensure that the sensor is face
(see fiGure 9.5).
down in the body i.e. looking into the breech.
replace the sensor cover and using a 5/64" hex key, replace
the bream beam Sensor cover retaining screw to hold the
sensor cover in place
(see fiGure 9.6).
repeat the procedure for the opposite side of the Geo2.
you have now cleaned your break beam Sensor System.
When cleaning the Break Beam sensor system inspect the
1
condition of rubber finger detents and replace if necessary.
Ensure that the receiver sensor (indicated by a red mark & red heat
2
shrink) is located on the right-hand side of the marker body.
WarninG: if You are at all unsure at PerforminG
tHe maintenance Procedure Please contact Your
nearest ecliPse serVice centre. (see PaGe 69)
