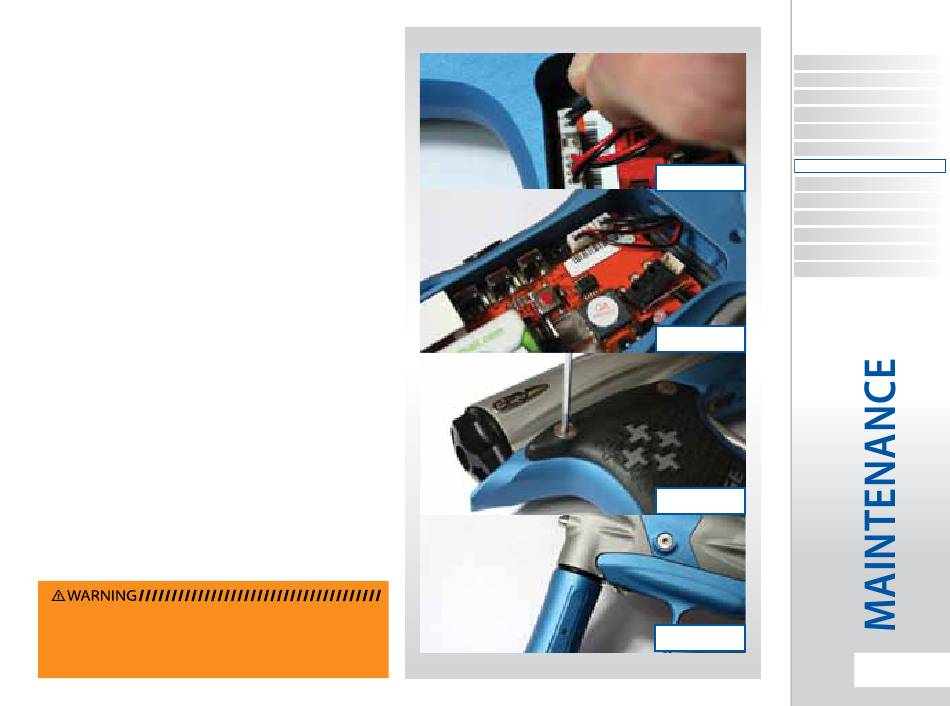

Connect the Solenoid and break beam Sensor System
wiring harnesses to their respective ports on the Geo2
Circuit board and
(see fiGure 12.10).
Adjust the wires so that they sit neatly in the Grip Frame
and ensure that the wires do not obstruct either the Micro-
switch or the Opto sensor (see fiGure 12.11).
Attach the Geo2 rubber Grips to the Frame using a 5/64"
hex key to replace the 6 grip screws
Screw the inline regulator back into the Front regulator
Mount and connect any hosing that was disconnected
earlier
(see fiGure 12.13).
you have now installed your Geo2 Grip Frame onto the
Geo2.
WarninG: if You are at all unsure at PerforminG
tHe maintenance Procedure Please contact Your
nearest ecliPse serVice centre. (see PaGe 69)
(see fiGure 12.12).
