PLANET ECLIPSE GEO2 Operator's Manual page 18

t-slot mountinG
t-slot
sYstem
mount

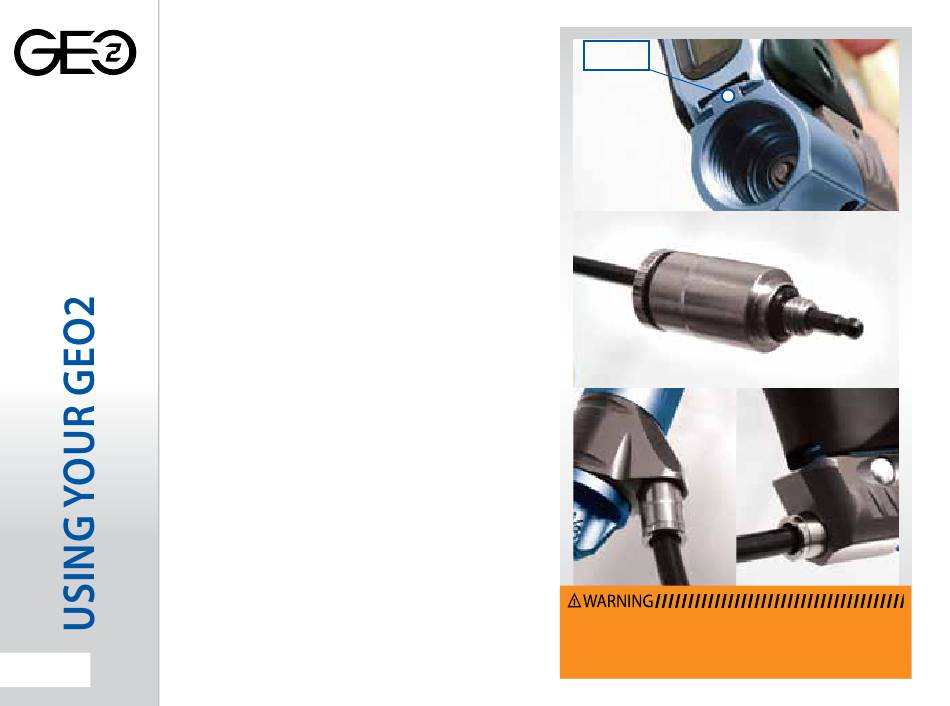

The Geo2 utilises a T-slot arrangement to mount the OOPS
to the bottom of the frame. The T-slot is an improvement
over the dovetail mounting system found on most
paintball markers, and is much more able to withstand the
rigours of modern tournament paintball.
straiGHt Hose fittinGs
The straight hose fittings found on the Geo2 DO NOT
require 'loctite' to secure them on the marker. These are
secured by the capture o-ring on the end of the fitting.
Only use a 3/32" hex key in the designated hole inside the
fitting to remove or re-attach the fitting. when re-attaching
the fittings DO NOT apply too much force or the threads on
the fitting/receiving part may be damaged (remember to
stop when you meet resistance).
macroline HosinG and
elboWs
To aid the longevity of your Macroline hosing, it is very
important to remove it from (and install it back into) the
fittings in the correct manner:
Pull back the collet section of the hose fitting and keep the
collet depressed. Pull the Macroline hose out of the hose
fitting and release the collet.
before installing the Macroline hose into the hose fitting
ensure that the end has been trimmed correctly to ensure
a tight fit in the hose fitting.
if You eVer remoVe tHe macroline Hose from
tHe fittinG, alWaYs cHecK tHe condition of
Your macroline HosinG and if it is Worn or tHe
WronG lenGtH rePlace it immediatelY.
