PLANET ECLIPSE GEO2 Operator's Manual page 53

(continued)
Take the Prop Shaft and having cleaned off any old grease,
paint or debris, apply Eclipse Grease to the large rear o-ring
and the threads
(see fiGure 11.10)
o-ring near the front of the Prop Shaft
Take the bolt and having cleaned off any old grease, paint
or debris, apply a light film of Eclipse Grease to cover the
front end of the bolt and also the internal rear bore of the
bolt Apply a coat of Eclipse Grease to
(see fiGure 11.12).
the 2 external bolt o-rings near the centre of the bolt
fiGure 11.13).
remove excess Eclipse Grease by wiping off with finger.
Aim to apply only a very thin film of grease to the
components maintained, as excess grease can cause poor
performance.
Slide the bolt onto the Prop Shaft
slide the Can over the bolt and push into place until the
Can touches the Prop Shaft back Cap
Finally wipe any excess Eclipse Grease off the o-ring on the
head of the bolt and insert the complete bolt Assembly
into the marker body (see fiGure 11.16).
Either by hand or using a 1/4" hex key, screw the bolt
Assembly into the marker body
if inserted by hand the Prop Shaft and bolt can be accessed
and maintained by hand in future.
DO NOT over tighten the Bolt Assembly.
1
WarninG: if You are at all unsure at PerforminG
tHe maintenance Procedure Please contact Your
nearest ecliPse serVice centre. (see PaGe 69)
and also to the 14x2
(see fiGure 11.11).
(see
(see fiGure 11.14) and
(see fiGure 11.15).
(see fiGure 11.17).
1

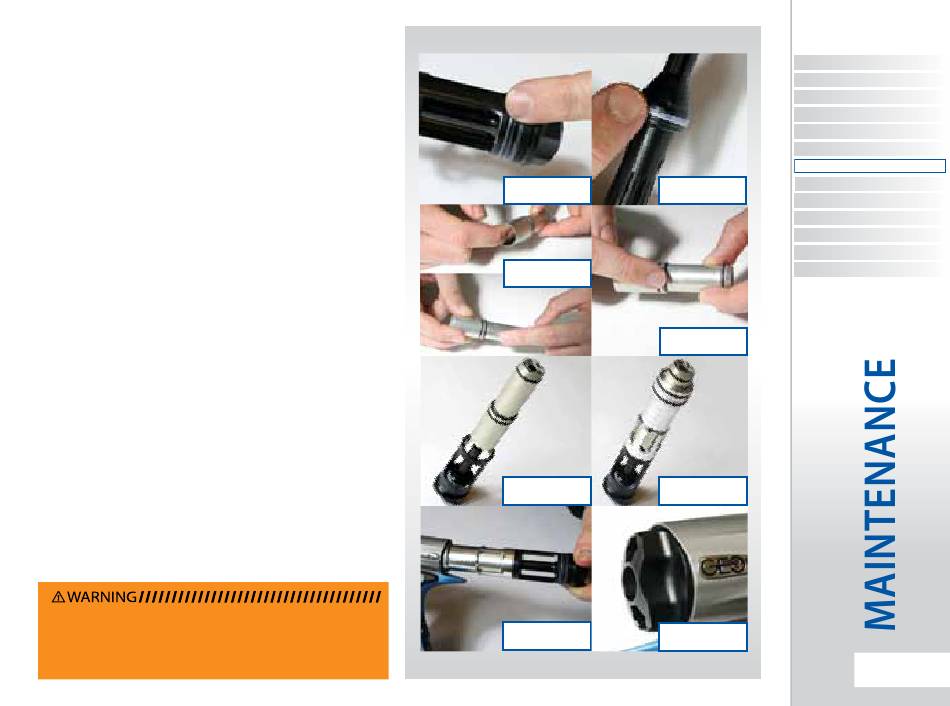

fiG 11.10 fiG 11.11
fiG 11.12
fiG 11.13
fiG 11.14 fiG 11.15
fiG 11.16 fiG 11.17
