tHe breaK beam sensor
sYstem indicator (bbss)
The bbSS is able to switch itself off in the event of a
blockage or contamination preventing it from functioning
correctly. in this instance, the bbSS will switch itself back on
once the blockage is cleared and the correct operation can
be resumed.

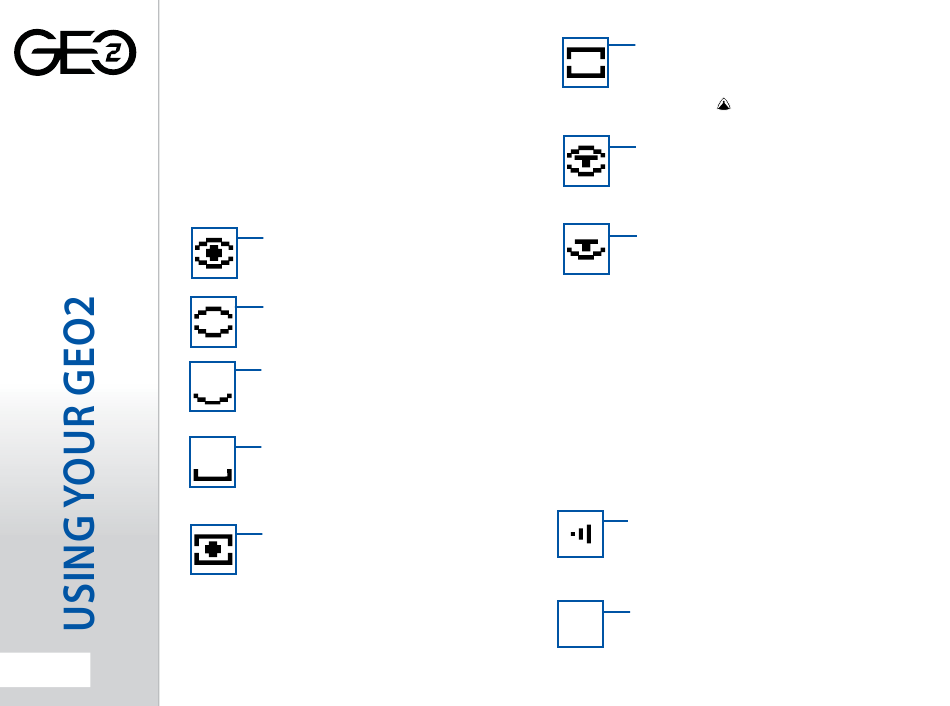

The bbSS indicator on the main screen is used to indicate
the eight possible states of the bbSS as follows:
24.
bbss enabled and ball detected
The Geo2 can be fired at the maximum rate of
fire determined by the chosen firing mode.
bbss enabled no ball detected
The Geo2 cannot be fired.
bbss disabled
The Geo2 can be fired at a maximum rate of
fire as set by the parameter (see
BS OFF ROF
page 35).
bbss fault detected
The system is disabled. The Geo2 can only
be fired at a maximum rate of 2bps less than
the maximum rate of fire, up to a maximum
of 10 bps.
bbss fault Has been cleared and
ball detected
The sensor has been re-enabled. A ball is
detected and the Geo2 can be fired at the
maximum rate of fire determined by the
chosen firing mode.
bbss fault Has been cleared and
no ball detected
The sensor is enabled. No ball is detected so
the Geo2 cannot be fired. To reset the bbSS
icon, use the button to switch off the
bbSS and then back on again.
bbss enabled in traininG mode
The bbSS has been over-ridden as the user
has selected training mode. As the user has
chosen to leave the bbSS on, the achievable
rate of fire is limited by the firing mode.
bbss disabled in traininG mode
The bbSS has been over-ridden as the user
has selected training mode. As the user has
chosen to turn the bbSS off, the achievable
rate of fire is limited by the
parameter (see page 35).
tHe auX out indicator
The auxiliary socket on the Geo2 circuit board allows third
party products such as loaders or rF transmitters to be
interfaced to the Geo2.
The AUx out indicator is turned on and off via the
parameter (see page 42).
There are two possible conditions that can be indicated:
auX out enabled
The AUx OUT is enabled. Each time the circuit
board detects a valid trigger pull a signal will
be sent to the AUx connector on the circuit
board.
auX out disabled
The AUx OUT is disabled. No signal will be sent
to the AUx connector on the circuit board.
