basic triGGer
filter set-uP
95% of trigger bounce problems can be eliminated by
utilizing one of the nine fixed
(lEvEl 1-9). in attempting to eliminate trigger bounce it
is advisable to try the nine fixed
attempting any advanced set up of the trigger filters.
adVanced triGGer
filter set-uP
in order to optimize the trigger filters it is necessary to
have the
RELEASE PT
1. Select the
bar rises and falls as the trigger is pulled and released. The
actual value of the graphical bar is displayed in the top
right of the display.
2. Set the rear Stop Trigger Screw as required, ensuring
that the bar is as close to 100% as possible when the
trigger is fully depressed against the set screw. it is
advisable to allow for some extra travel in the trigger pull
once the bar has reached its maximum value.
3. Adjust the
fully depressed the bar settles above the indicator on the
left hand side of the screen (see page 39).
4. Select the
graphical bar rises and falls as the trigger is pulled and
released. The actual value of the graphical bar is displayed
in top right of the display.
5. Set the Front Stop Trigger Screw as required, ensuring
that the bar is as close to 0% as possible when the trigger
is fully released against the set screw. it is advisable to
allow for some extra travel in the trigger release once the
40.
bar has reached its minimum value.
DEBOUNCE
DEBOUNCE
parameter set as high as possible and the
PULL PT
parameter set as low as possible:
parameter. Observe that the graphical
PULL PT
parameter so that when the trigger is
PULL PT
parameter. Observe that the
RELEASE PT
6. Adjust the
trigger is fully released the bar settles beneath the
indicator on the left hand side of the screen (see page 39)
7. Set the Magnet return Strength Screw and the Spring
return Strength Screw as required, making both the spring
choices tension and the return force as strong as possible without
compromising the "feel" of the trigger.
choices before
HardWare

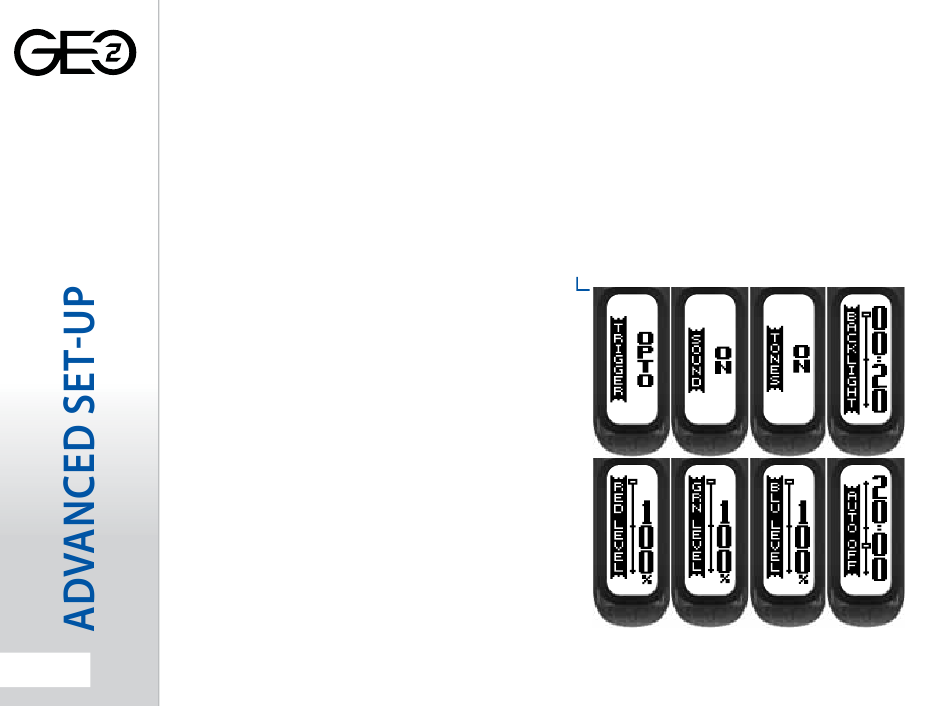

tHe HardWare menu
The
HARDWARE
low level functionality of the Geo2 electronic hardware.
parameter so that when the
RELEASE PT
menu comprises parameters that control
.
