PLANET ECLIPSE GEO2 Operator's Manual page 38

dWell

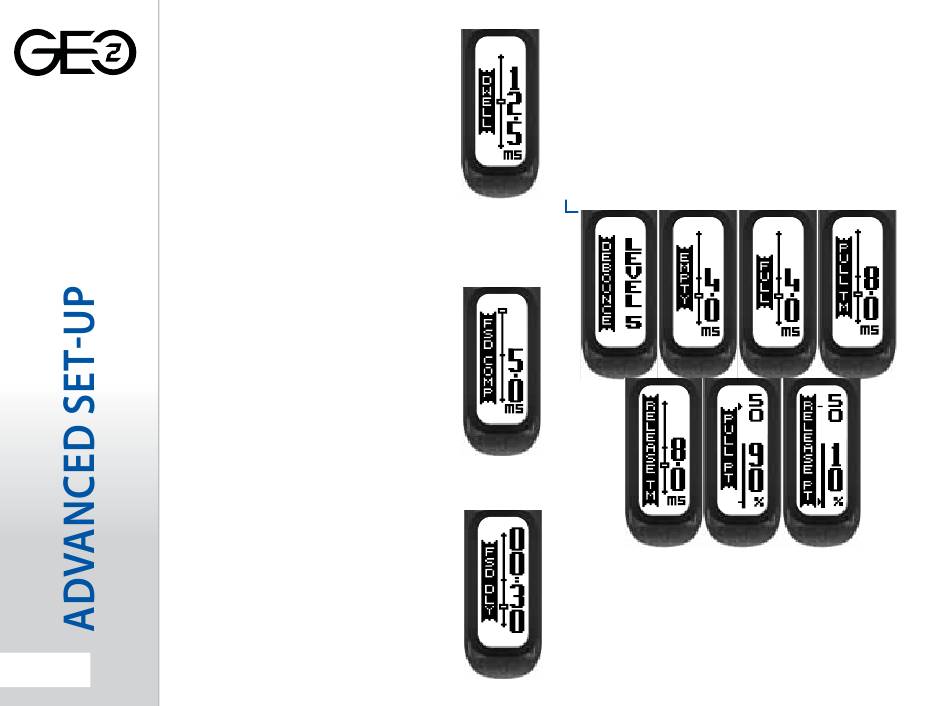

tHe dWell Parameter
The
DWELL
time that the solenoid is energized and
therefore the amount of gas that is released
with each shot of the Geo2. Setting this
parameter too low will result in low velocity
shots and/or excessive shot to shot velocity
fluctuations. Setting the parameter too
high will simply waste gas and make the
Geo2 louder. The
0.0 and 25.0 milliseconds. The factory default setting can
normally be reduced after a few thousand shots as the
Geo2 'beds-in' .
fsd comP
tHe first sHot droP-off
comPensation Parameter
First shot drop off is a reduction in velocity
of the first shot fired after an extended
period of not firing and is caused by the
stiction between dynamic o-rings and the
surfaces that they are in contact with. in
order to compensate for first shot drop-off
this parameter can be set to add extra
time to the
shot. This parameter can be set between 0.0 and 5.0
milliseconds.
fsd dlY
tHe first sHot droP-off delaY
Parameter
The time that has to elapse before the
FDS COMP is applied to a shot following a
previous shot. This parameter can be set
between 00:00 and 04:00 minutes.
38.
parameter sets the amount of
can be set between
DWELL
parameter for the first
DWELL
filter
tHe filter menu
The parameters on the menu are all used to tune the
FILTER
Geo2's software filters which prevent the Geo2 from firing
unless all of the necessary conditions are met. The factory
default settings will be suitable for most set-ups, however
certain loader and trigger set-ups may require modification
of one or more of these parameters.
