MVI56E-MNETCR ♦ ControlLogix Platform
Modbus TCP/IP Multi-Client Enhanced Communications Module for Remote Chassis
Rack 1
Slot Module
0 ControlLogix Processor
1 1756-CNB
2 1756-ENBT
3 Any
Rack 2
Slot Module
0 Any
1 Any
2 Any
3 Any
4 Any
5 1756-CNB
6 MVI56E-MNETCR

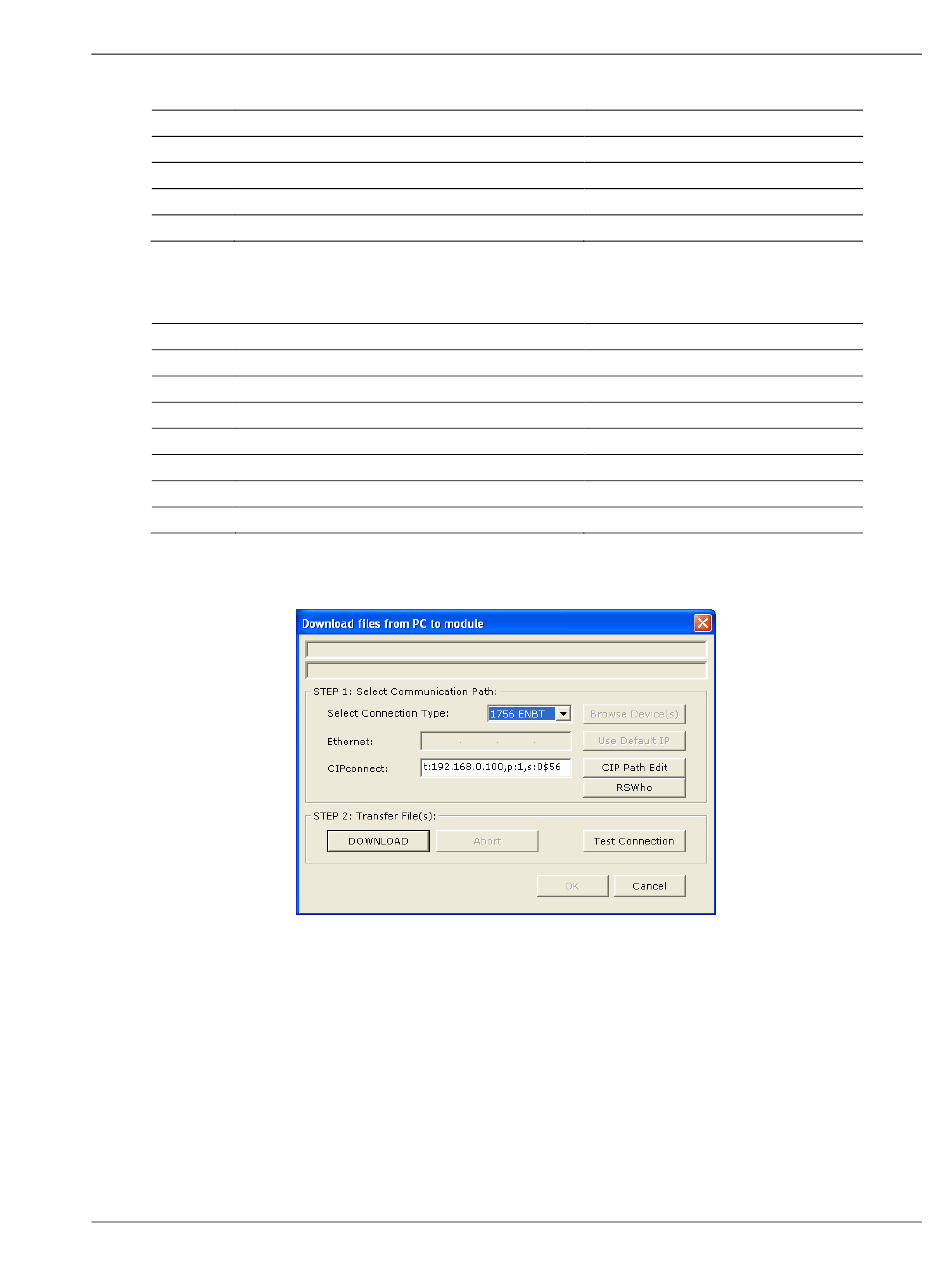

1 In the Download dialog box, click CIP P
ProSoft Technology, Inc.
Configuring the MVI56E-MNETCR Module
Network Address
-
Node = 1
IP=192.168.0.100
-
Network Address
-
-
-
-
-
Node = 2
-
E .
ATH DIT
User Manual
Page 69 of 161
