To use the CIPconnect Path Editor, follow these steps.
1 Configure the path between the 1756-ENBT connected to your PC and the
MVI56E-MNETCR module.
If the module is located in a remote rack, add more racks to configure the
o
full path.
o The path can only contain ControlNet or Ethernet/IP networks.
o The maximum number of supported racks is six.
2 Click C
ONSTRUCT
3 Click OK to confirm the configured path.

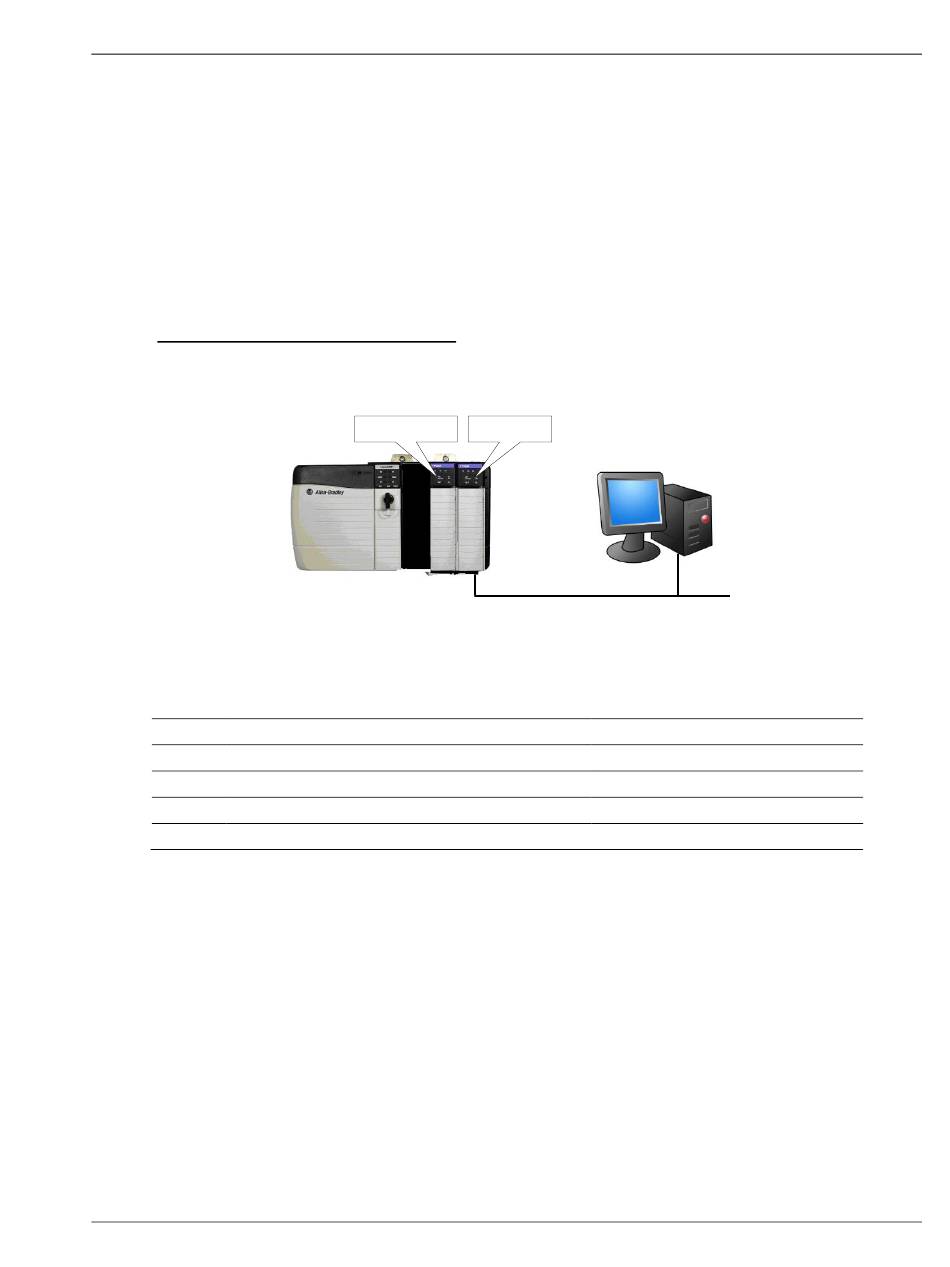

Example 1: Local Rack Application
For this example, the MVI56E-MNETCR module is located in the same rack as
the 1756-ENBT that is connected to the PC.
Rack 1
Slot Module
0 ControlLogix Processor
1 Any
2 MVI56E-MNETCR
3 1756-ENBT
ProSoft Technology, Inc.
CIP P to build the path in text format
ATH
MVI56E Module
Rack 1
0 1 2 3
Configuring the MVI56E-MNETCR Module
1756-ENBT
Ethernet
Network Address
-
-
-
IP=192.168.0.100
