MVI56E-MNETCR ♦ ControlLogix Platform
Modbus TCP/IP Multi-Client Enhanced Communications Module for Remote Chassis
4

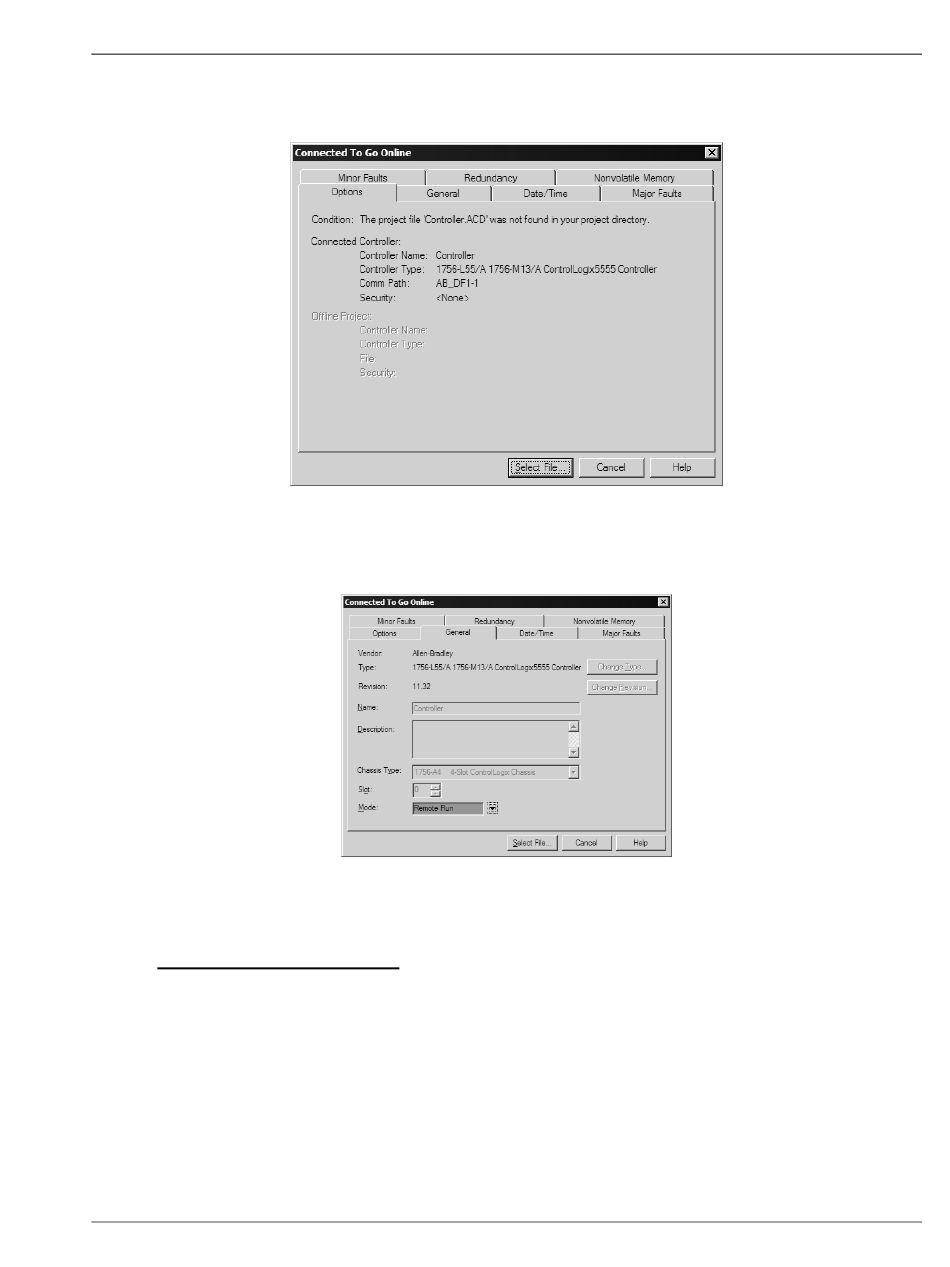

When RSLogix has established communication with the processor, the
Connected To Go Online dialog box will open.
5
In the Connected To Go Online dialog box, click the G
shows information about the processor, including the Revision (firmware)
version. In the following illustration, the firmware version is 11.32
6
Select the sample ladder logic file for your firmware version.
To open the sample program
1
On the Connected to Go Online dialog box, click the S
2
Choose the sample program file that matches your firmware version, and
then click the S
3
RSLogix will load the sample program.
The next step is to configure the correct controller type and slot number for your
application.
ProSoft Technology, Inc.
button.
ELECT
User Manual
tab. This tab
ENERAL
F
button.
ELECT
ILE
Page 151 of 161
