Configuring the MVI56E-MNETCR Module
User Manual
Your first task is to add the MVI56E-MNETCR module to the project.
1 Use the mouse to select D
right mouse button to open a shortcut menu.

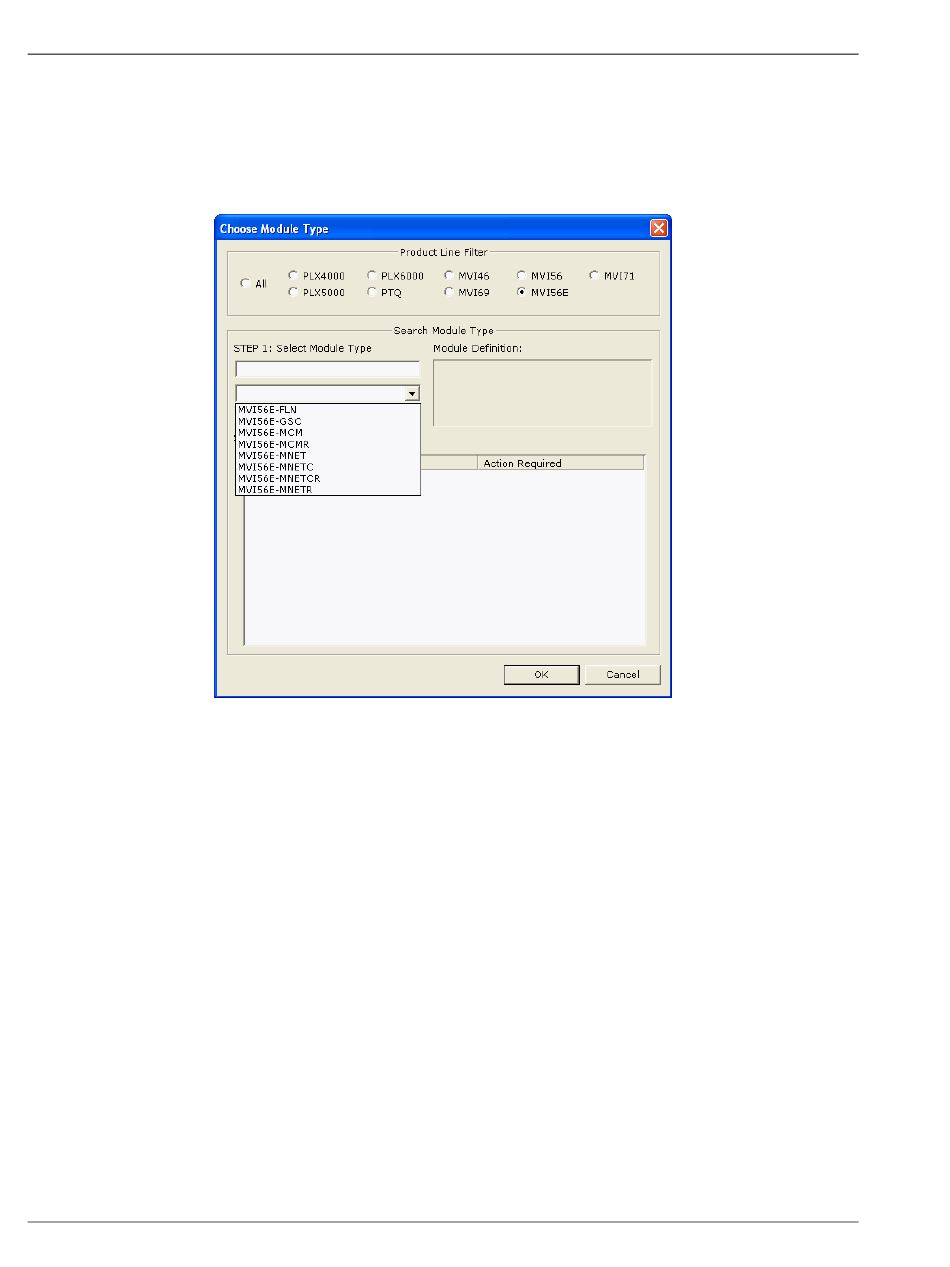

2 On the shortcut menu, select C
Choose Module Type dialog box.
3 In the Product Line Filter area of the dialog box, select MVI56E. In the Select
Module Type dropdown list, select MVI56E-MNETCR, and then click OK to
save your settings and return to the ProSoft Configuration Builder window.
Page 42 of 161
Modbus TCP/IP Multi-Client Enhanced Communications Module for Remote Chassis
M
EFAULT ODULE
HOOSE
MVI56E-MNETCR ♦ ControlLogix Platform
in the tree view, and then click the
M T . This action opens the
ODULE YPE
