MVI56E-MNETCR ♦ ControlLogix Platform
Modbus TCP/IP Multi-Client Enhanced Communications Module for Remote Chassis
5.8.3 Selecting the Slot Number for the Module
The sample application is for a module installed in Slot 1 in a ControlLogix rack.
The ladder logic uses the slot number to identify the module. If you are installing
the module in a different slot, you must update the ladder logic so that program
tags and variables are correct, and do not conflict with other modules in the rack.
To change the slot number
1

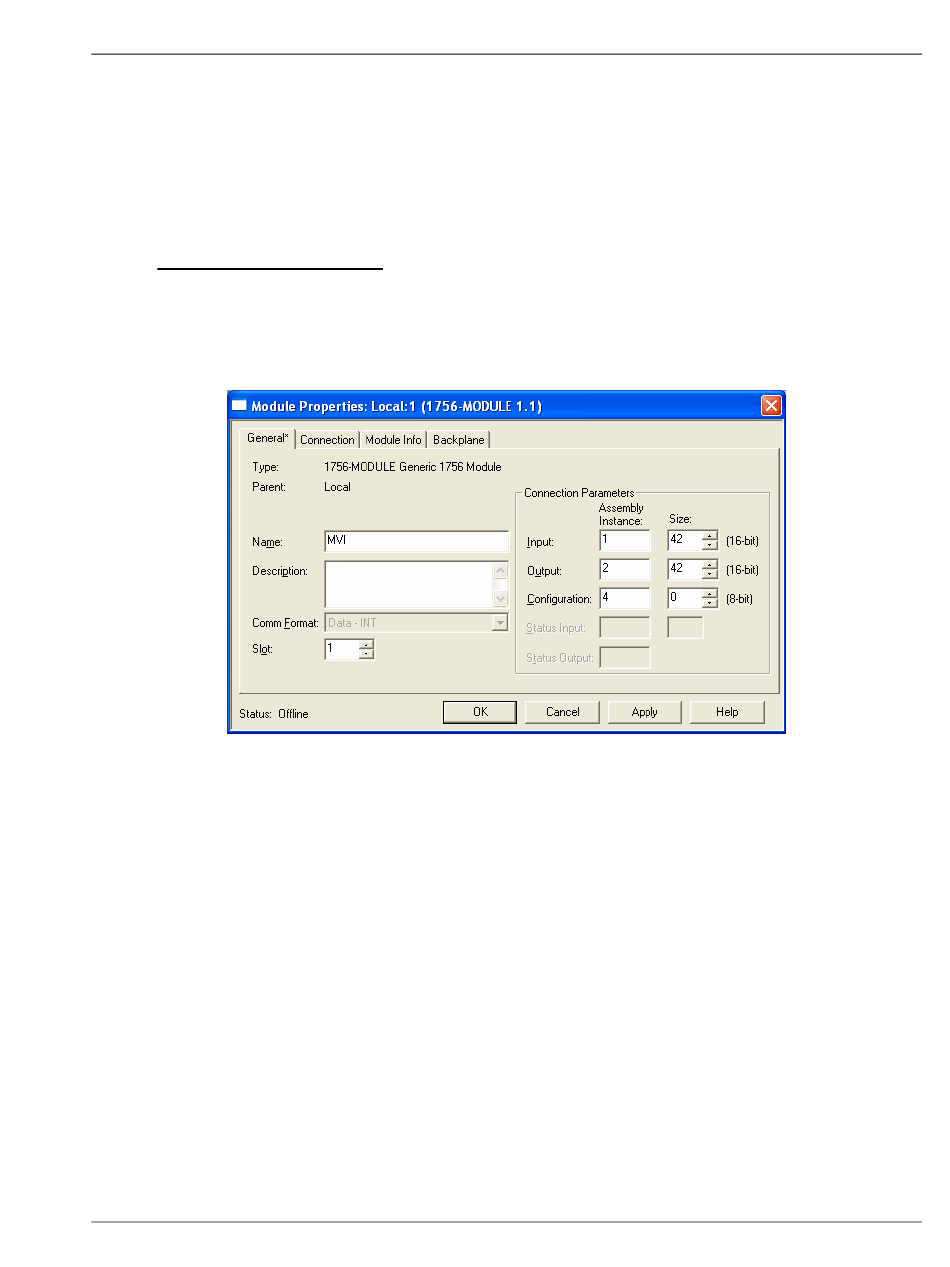

In the Controller Organization list, select the module, and then click the right
mouse button to open a shortcut menu.
2
On the shortcut menu, choose P
Properties dialog box.
3
In the S
LOT
select the slot number where the module will reside in the rack, and then click
OK.
RSLogix will automatically apply the slot number change to all tags, variables
and ladder logic rungs that use the MVI56E-MNETCR slot number for
computation.
ProSoft Technology, Inc.
ROPERTIES
field, use the up and down arrows on the right side of the field to
. This action opens the Module
Reference
User Manual
Page 153 of 161
