Configuring the MVI56E-MNETCR Module
User Manual

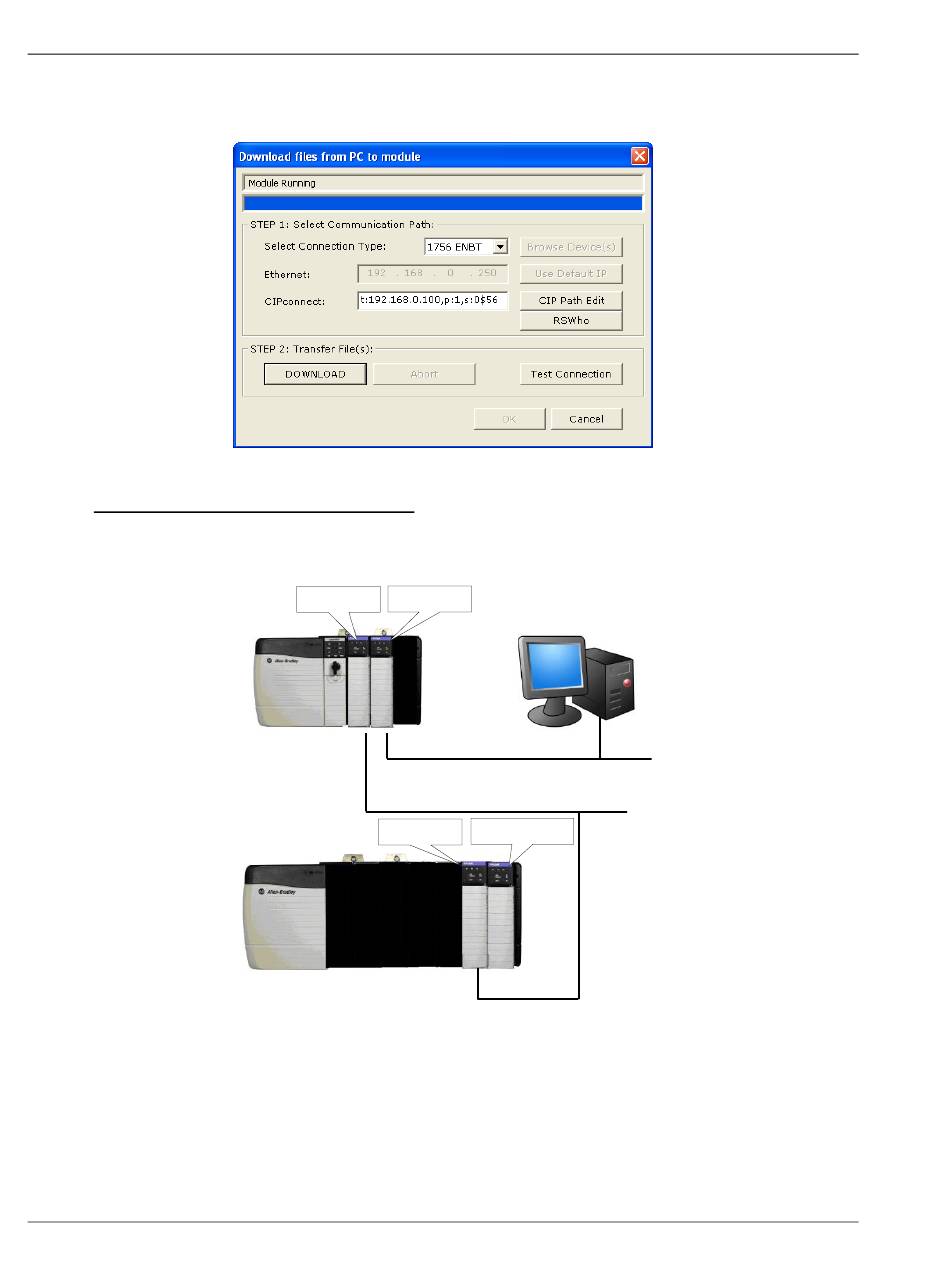

5 Click OK to close the Test Connection pop-up and then click D
download the configuration files to the module through the path.
Example 2: Remote Rack Application
For this example, the MVI56E-MNETCR module is located in a remote rack
accessible through ControlNet, as shown in the following illustration.
Page 68 of 161
Modbus TCP/IP Multi-Client Enhanced Communications Module for Remote Chassis
1756-CNB 1756-ENBT
Rack 1
0 1 2 3
1756-CNB
Rack 2
0 1 2 3
MVI56E-MNETCR ♦ ControlLogix Platform
Ethernet
ControlNet
MVI56E Module
4 5 6
to
OWNLOAD
