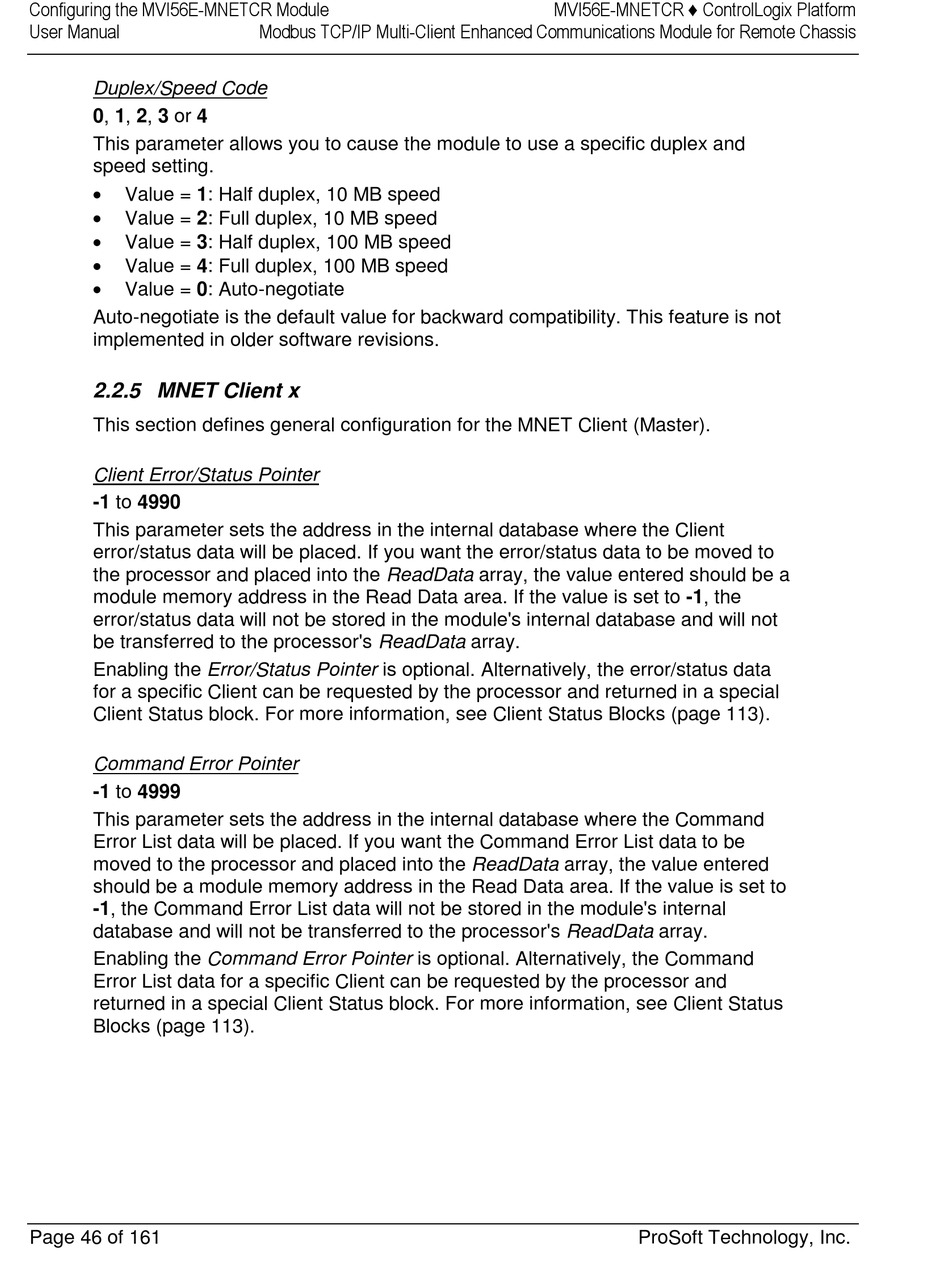

Configuring the MVI56E-MNETCR Module
User Manual
Duplex/Speed Code
0, 1, 2, 3 or 4
This parameter allows you to cause the module to use a specific duplex and
speed setting.

Value = 1: Half duplex, 10 MB speed

Value = 2: Full duplex, 10 MB speed

Value = 3: Half duplex, 100 MB speed

Value = 4: Full duplex, 100 MB speed

Value = 0: Auto-negotiate
Auto-negotiate is the default value for backward compatibility. This feature is not
implemented in older software revisions.

2.2.5 MNET Client x

This section defines general configuration for the MNET Client (Master).
Client Error/Status Pointer
-1 to 4990
This parameter sets the address in the internal database where the Client
error/status data will be placed. If you want the error/status data to be moved to
the processor and placed into the ReadData array, the value entered should be a
module memory address in the Read Data area. If the value is set to -1, the
error/status data will not be stored in the module's internal database and will not
be transferred to the processor's ReadData array.
Enabling the Error/Status Pointer is optional. Alternatively, the error/status data
for a specific Client can be requested by the processor and returned in a special
Client Status block. For more information, see Client Status Blocks (page 113).
Command Error Pointer
-1 to 4999
This parameter sets the address in the internal database where the Command
Error List data will be placed. If you want the Command Error List data to be
moved to the processor and placed into the ReadData array, the value entered
should be a module memory address in the Read Data area. If the value is set to
-1, the Command Error List data will not be stored in the module's internal
database and will not be transferred to the processor's ReadData array.
Enabling the Command Error Pointer is optional. Alternatively, the Command
Error List data for a specific Client can be requested by the processor and
returned in a special Client Status block. For more information, see Client Status
Blocks (page 113).
