5.6.6 Reading the Clock Value from the Module

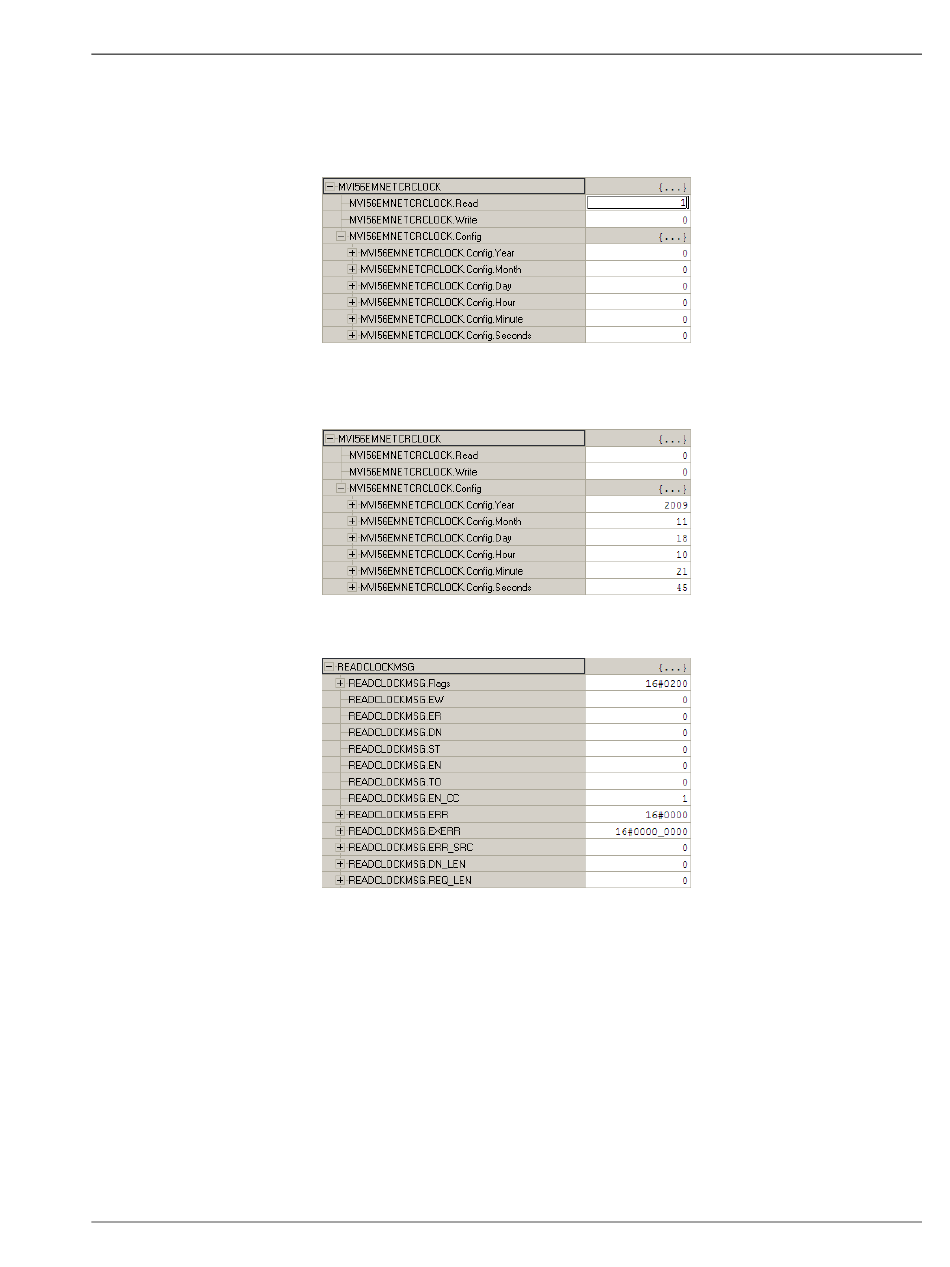

Expand the MVI56EMNETCRCLOCK controller tag and move a value of 1 to
MVI56EMNETCRCLOCK.R
The bit will be automatically reset and the current clock value will be copied to
MVI56EMNETCRCLOCK.C
To check the status of the message, refer to the READCLOCKMSG tag.
ProSoft Technology, Inc.
EAD
controller tag as follows.
ONFIG
