ProSoft MVI56E-MNETCR User Manual page 19

MVI56E-MNETCR ♦ ControlLogix Platform
Modbus TCP/IP Multi-Client Enhanced Communications Module for Remote Chassis

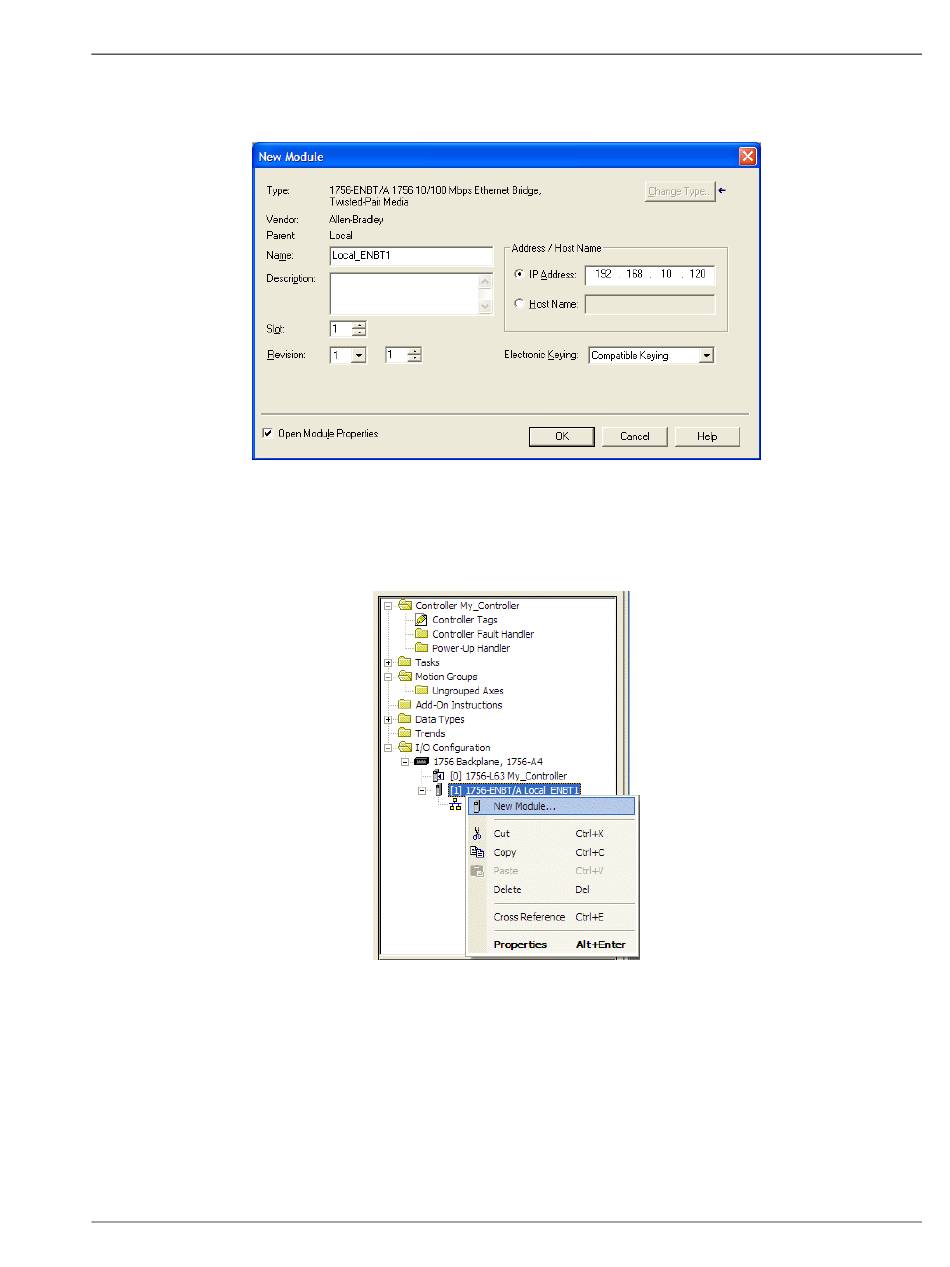

3 Name the ENBT/A module, then set the IP Address and slot location in the
local rack with the ControlLogix processor.
4 Click OK.
5 Next, select the 1756-ENBT module that you just created in the Controller
Organization pane and click the right mouse button to open a shortcut menu.
On the shortcut menu, choose N
6 Repeat steps 2 and 3 to add the second EtherNet/IP module to the remote
rack.
ProSoft Technology, Inc.
M .
EW ODULE
Start Here
User Manual
Page 19 of 161
