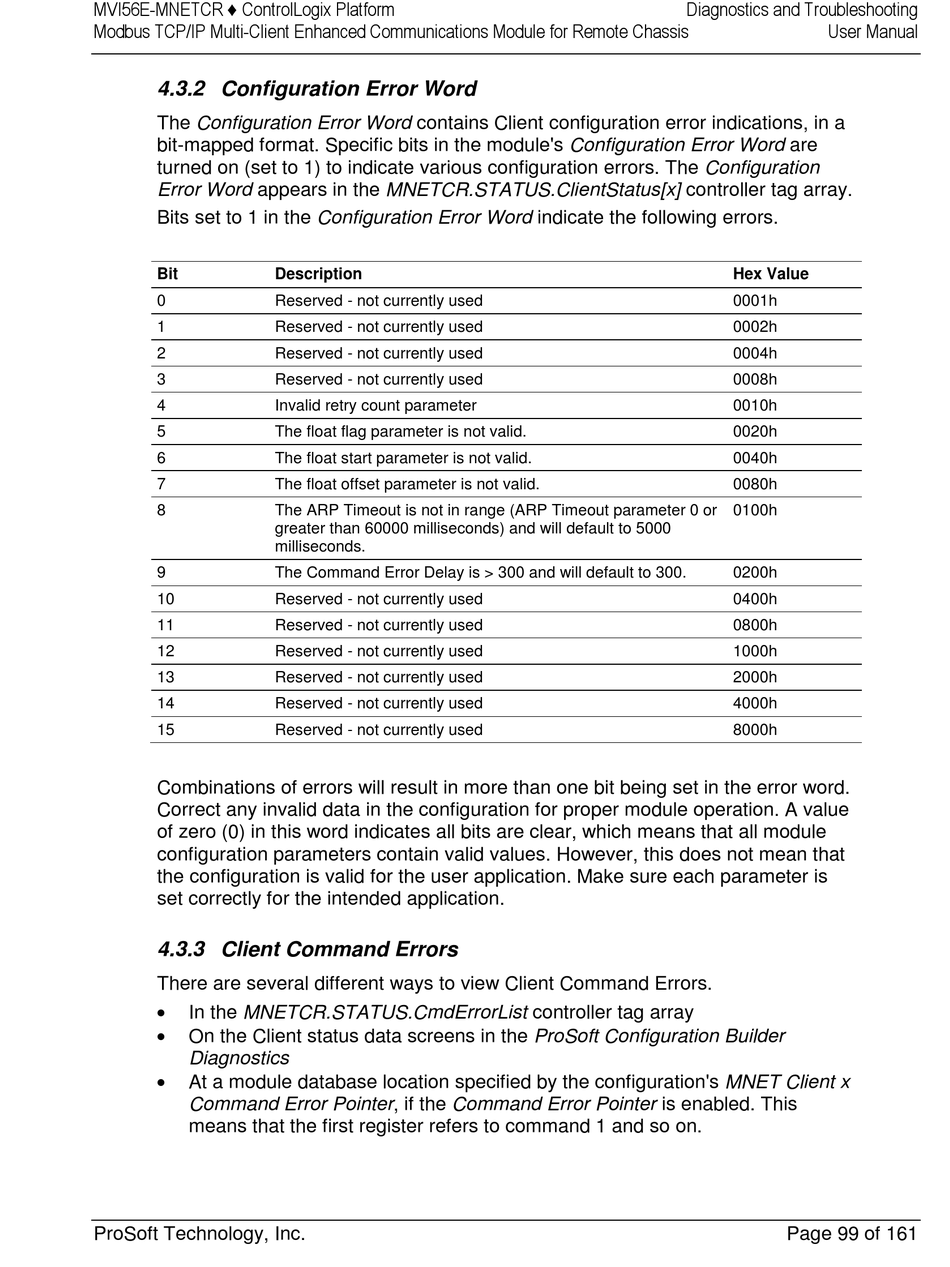

4.3.2 Configuration Error Word

The Configuration Error Word contains Client configuration error indications, in a
bit-mapped format. Specific bits in the module's Configuration Error Word are
turned on (set to 1) to indicate various configuration errors. The Configuration
Error Word appears in the MNETCR.STATUS.ClientStatus[x] controller tag array.
Bits set to 1 in the Configuration Error Word indicate the following errors.
Bit
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Combinations of errors will result in more than one bit being set in the error word.
Correct any invalid data in the configuration for proper module operation. A value
of zero (0) in this word indicates all bits are clear, which means that all module
configuration parameters contain valid values. However, this does not mean that
the configuration is valid for the user application. Make sure each parameter is
set correctly for the intended application.

4.3.3 Client Command Errors

There are several different ways to view Client Command Errors.

In the MNETCR.STATUS.CmdErrorList controller tag array

On the Client status data screens in the ProSoft Configuration Builder
Diagnostics

At a module database location specified by the configuration's MNET Client x
Command Error Pointer, if the Command Error Pointer is enabled. This
means that the first register refers to command 1 and so on.
