Configuring the MVI56E-MNETCR Module
User Manual

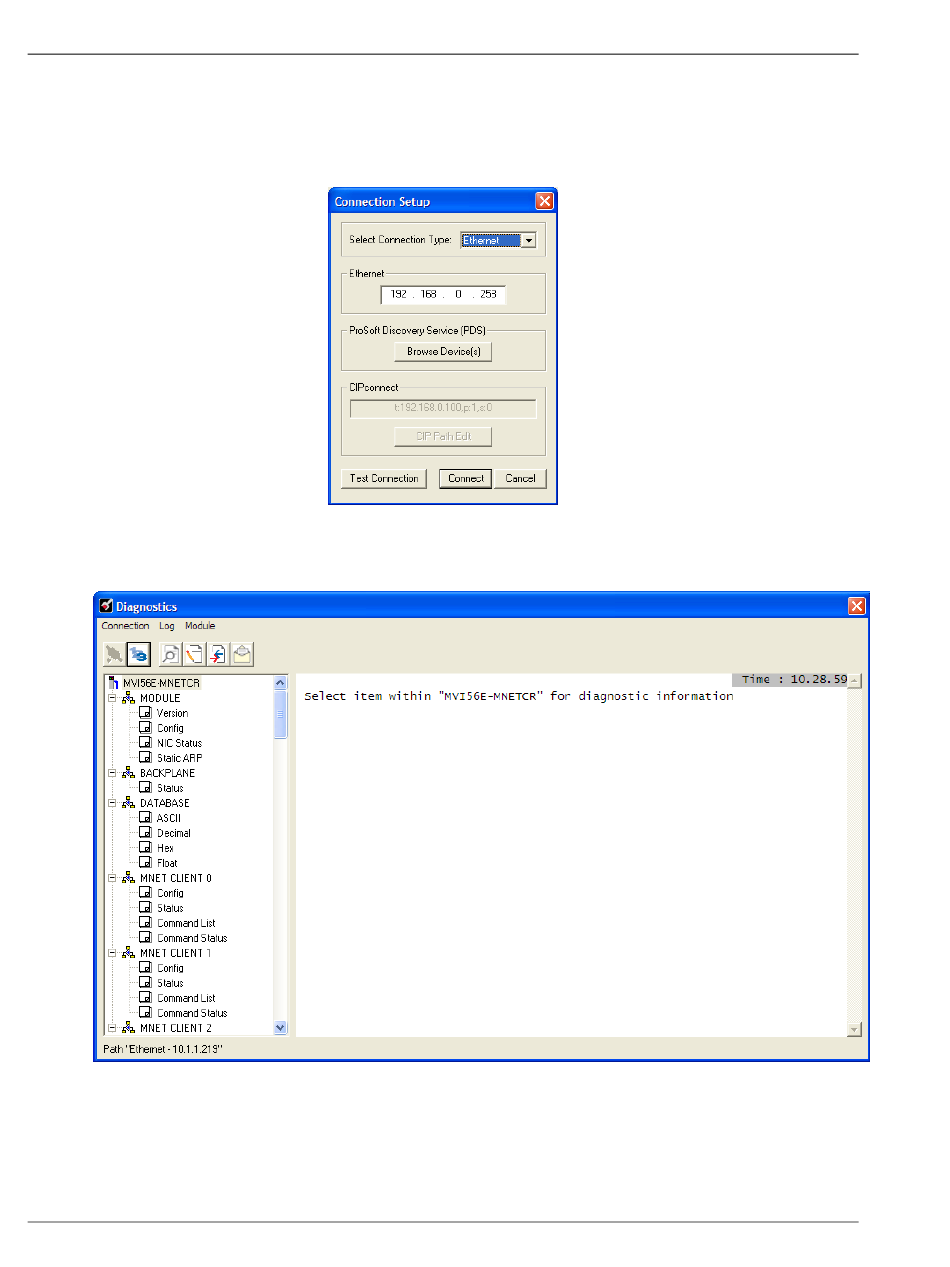

6 Close the ProSoft Discovery Service window. Enter the temporary IP in the
Ethernet address field of the Connection Setup dialog box, then click the
T C
EST ONNECTION
current settings.
7 If the Test Connection is successful, click C
will display in the Diagnostics window.
Page 60 of 161
Modbus TCP/IP Multi-Client Enhanced Communications Module for Remote Chassis
button to verify that the module is accessible with the
MVI56E-MNETCR ♦ ControlLogix Platform
. The Diagnostics menu
ONNECT
ProSoft Technology, Inc.
