The MVI56E-MNETCR module is now visible in the I/O Configuration pane.

1.7.3 Creating the Module - Local Rack

Note: If you are installing the MVI56E-MNETCR module in a local rack, follow these steps. If you
are installing the module in a remote rack, follow the steps in Creating the Module - Remote Rack
(page 18).

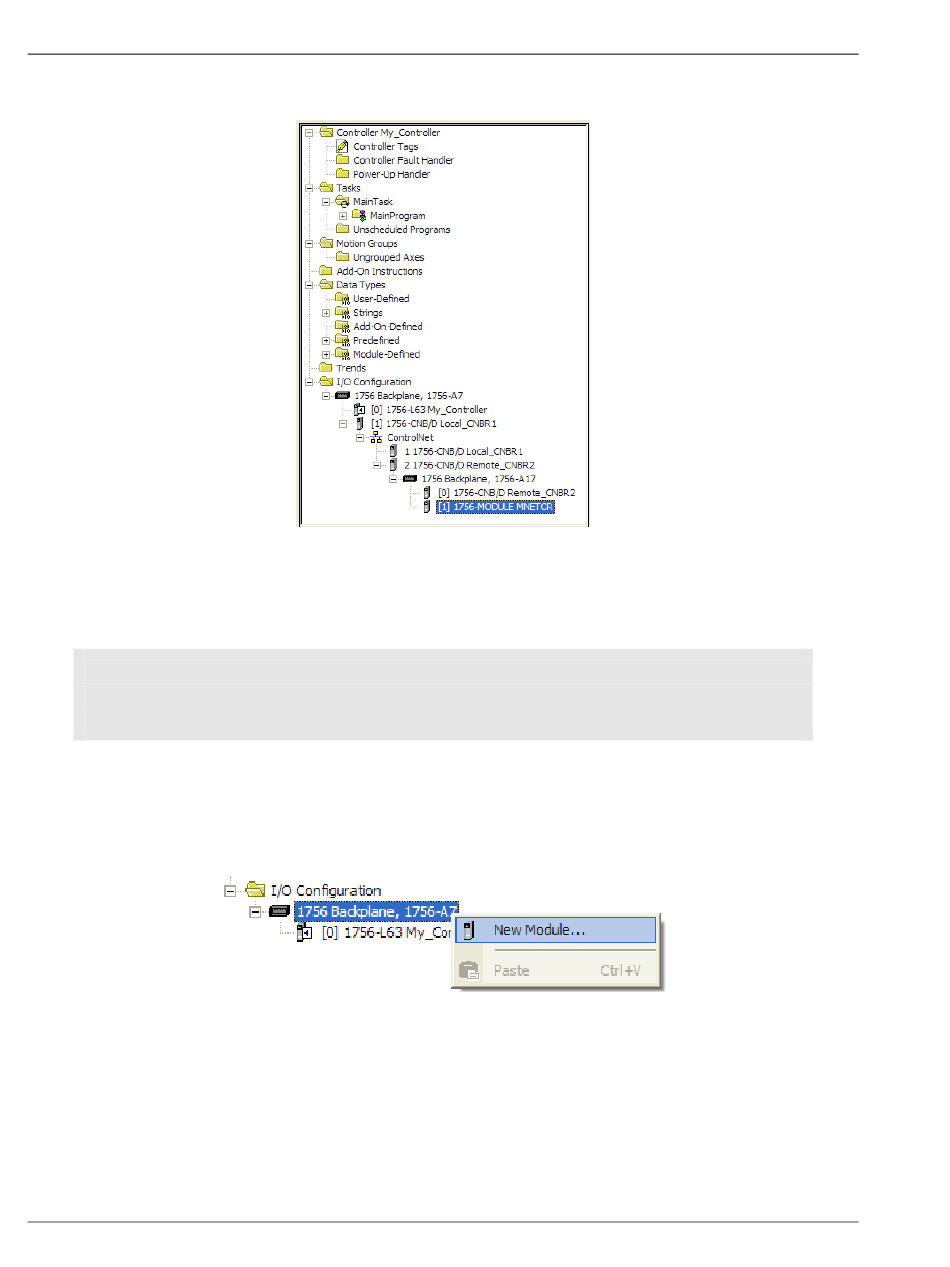

1 In the Controller Organization window, expand the I/O
2 Select the 1756 B
open a shortcut menu. On the shortcut menu, choose N
Page 22 of 161
Modbus TCP/IP Multi-Client Enhanced Communications Module for Remote Chassis
node, and then click the right mouse button to
ACKPLANE
MVI56E-MNETCR ♦ ControlLogix Platform
node.
CONFIGURATION
M .
EW ODULE
