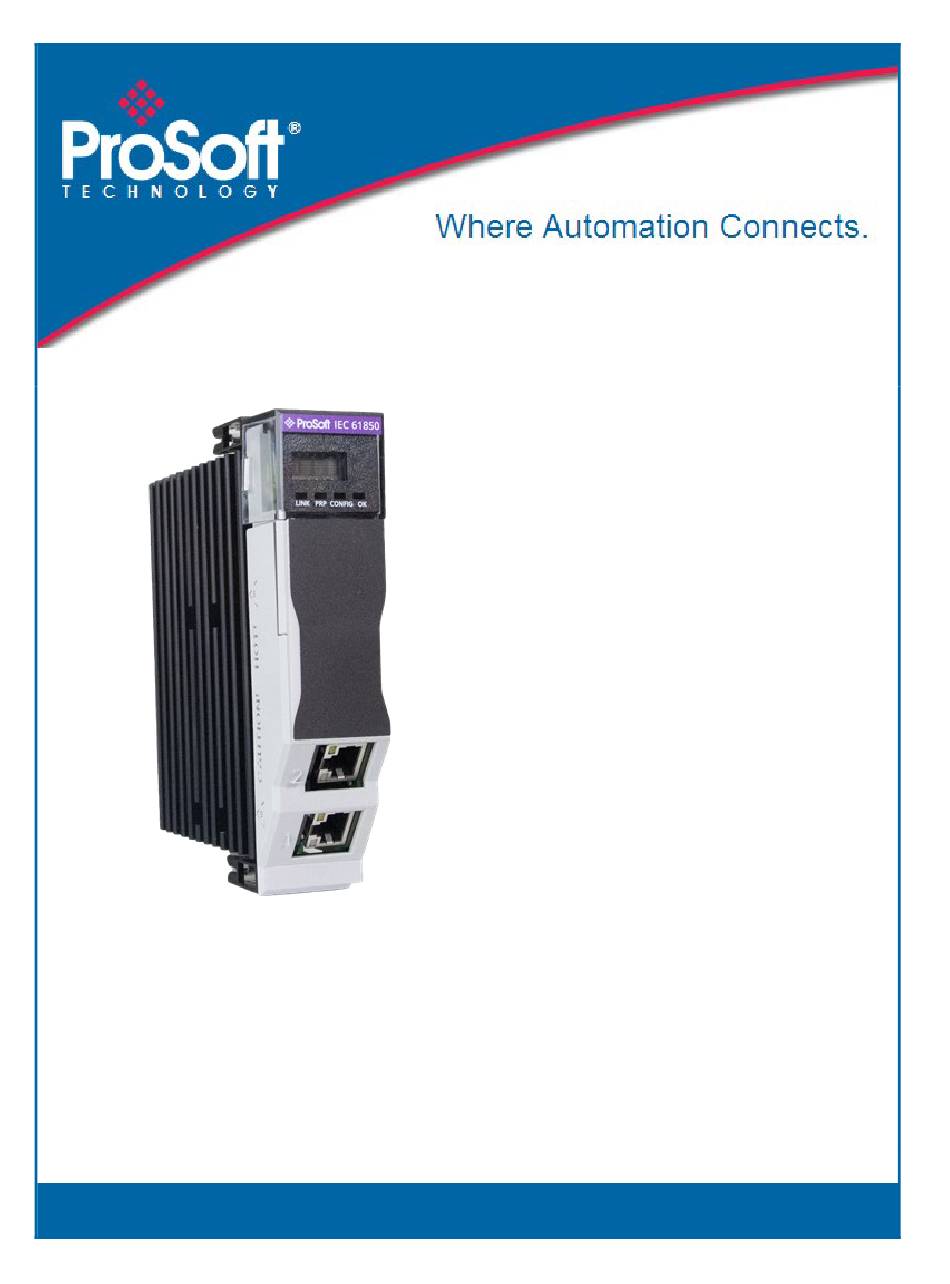

- Page 1 MVI56E-61850C IEC 61850 Client Communication Module ControlLogix® Platform September 29, 2021 USER MANUAL...
-
Page 2: Your Feedback Please
Neither ProSoft Technology nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. Information in this document including illustrations, specifications and dimensions may contain technical inaccuracies or typographical errors. -
Page 3: Open Source Information
Open Source Software from ProSoft Technology, Inc. - against payment of the shipping and handling charges - for a period of at least 3 years since purchase of the product. Please send your specific request, within 3 years... -
Page 4: Table Of Contents
Configuration in Studio 5000 Logix Designer ............59 4.2.1 Data Mapping Over the Backplane Connections ............ 59 4.2.2 Accessing GOOSE and Control Data ..............61 4.2.3 Import the MVI56E-61850C Program into Studio 5000 Logix Designer ....62 ProSoft Technology, Inc. Page 4 of 116... - Page 5 Event Logger ......................99 Diagnostics Controller Tags .................. 100 8.3.1 MVI56E61850C_Diagnostics ................100 8.3.2 Diagnostics Data Reference ................. 101 Diagnostics in the MVI56E-61850C Add-On Profile ..........105 8.4.1 Module Info ......................105 8.4.2 IED Status ......................106 8.4.3 PRP Diagnostics ....................106 8.4.4...
-
Page 6: Start Here
User Manual Start Here Overview This user manual explains the features of the MVI56E-61850C module and guides you through the installation and configuration of the module. This includes using the ProSoft MVI56E-61850C Configuration Manager software to map data for Intelligent Electronic Devices (IEDs) on the IEC 61850 network for use with a Rockwell Automation ®... -
Page 7: System Requirements
Rockwell Automation to remove and install the Rockwell Automation modules. Note: You can install up to four MVI56E-61850C modules in the same ControlLogix rack. Note: If you are using the module in a ControlLogix Redundancy System, the module must be located in a remote rack. -
Page 8: Installing The Software
Note: If you insert the module improperly, the system may stop working or may behave unpredictably. Installing the Software Install the MVI56E-61850C required software, which is available in the Downloads section of the MVI56E-61850C product page on the ProSoft Technology website (https://www.prosoft-technology.com):... - Page 9 MVI56E- 61850C module and remote Intelligent Electronic Devices (IEDs) according to the IEC 61850 communication protocol. ProSoft MVI56E-61850C Diagnostics Tool: This application allows you to monitor • diagnostics and configuration data for the module.
-
Page 10: Module Overview

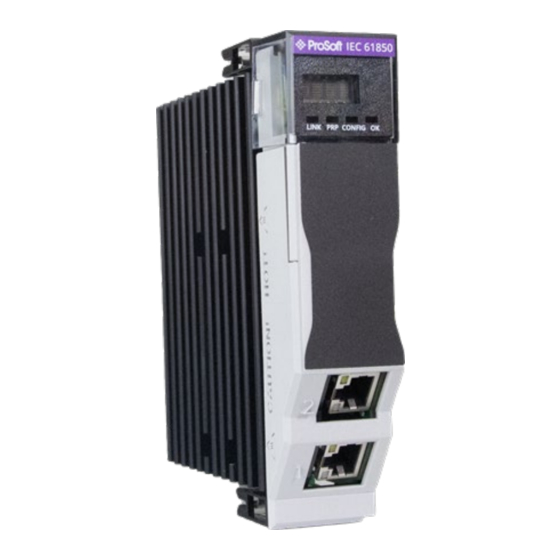

MVI56E-61850C ♦ IEC 61850 Client Communication Module Module Overview ControlLogix® Platform User Manual Module Overview Overview The ProSoft Technology IEC 61850 communication module allows Rockwell ® Automation® ControlLogix PACs to interface with IEC 61850 Intelligent Electronic ® Devices (IEDs) such as substation power monitors and protective relays. The module operates as an IEC 61850 Client supporting the polling of devices using MMS messaging and reports. -
Page 11: Ethernet Ports
MVI56E-61850C ♦ IEC 61850 Client Communication Module Module Overview ControlLogix® Platform User Manual Ethernet Ports Description Port 2 GbE Ports Ethernet Port 1 Application port Ethernet Port 2 Redundant port (if redudancy is enabled) IEC 61850 Specifications Value Specification IEC 61850 Ed 2.0... -
Page 12: Time Synchronization Specifications
MVI56E-61850C ♦ IEC 61850 Client Communication Module Module Overview ControlLogix® Platform User Manual Time Synchronization Specifications Value Specification Time Synchronization Standard C37.238-2017 Supported Modes Ordinary Clock, Boundary Clock LEDs The module provides four diagnostic LEDs. These LEDs are used to provide information regarding link status, parallel redundancy protocol (PRP) mode, configuration error detection, and module operation. -
Page 13: Configuring The Mvi56E-61850C Add-On Profile
Designer project to which you will be adding the MVI56E-61850C module. Note: The MVI56E-61850C module requires Studio 5000 Logix Designer version 32 or higher and a ControlLogix 5580 processor, firmware with the same major revision as Logix Designer. To check the... -
Page 14: 3.1.2 Add The Mvi56E-61850C To The Studio 5000 Project
MVI56E-61850C ♦ IEC 61850 Client Communication Module Configuring the MVI56E-61850C Add-On Profile ControlLogix® Platform User Manual 3.1.2 Add the MVI56E-61850C to the Studio 5000 Project In the I/O Configuration section of the Controller Organizer, right-click the backplane and select N ODULE... - Page 15 Configuring the MVI56E-61850C Add-On Profile ControlLogix® Platform User Manual Note: If you do not see the MVI56E-61850C in the list of modules, this means that the MVI56E-61850C AOP may not have been installed properly. The New Module dialog box displays.
- Page 16 MVI56E-61850C ♦ IEC 61850 Client Communication Module Configuring the MVI56E-61850C Add-On Profile ControlLogix® Platform User Manual In the Select Module Type window, click C LOSE The new module appears under the backplane in the Controller Organizer panel in Logix Designer.
-
Page 17: Configure The Ip Address
ControlLogix® Platform User Manual Configure the IP Address Take the following steps to configure the IP address of the MVI56E-61850C. In the I/O Configuration section of the Controller Organizer, right-click the MVI56E- 61850C module and select P . (Or just double-click the module.) ROPERTIES The Module Properties dialog box displays. -
Page 18: Configure Parallel Redundancy Protocol (Prp)
User Manual Configure Parallel Redundancy Protocol (PRP) Parallel Redundancy Protocol (PRP) allows failover protection against failure of network components. The MVI56E-61850C provides the following two PRP modes: Simplex: In simplex mode, only Ethernet port 1 is used for data communication. •... -
Page 19: Enable Time Synchronization (Ethernet)
MVI56E-61850C ♦ IEC 61850 Client Communication Module Configuring the MVI56E-61850C Add-On Profile ControlLogix® Platform User Manual Enable Time Synchronization (Ethernet) The module supports time synchronization over three different ports: the backplane, Ethernet Port 1, and Ethernet Port 2 (if redundancy is enabled). Time synchronization over the backplane is always enabled. -
Page 20: Firmware Lock
Before upgrading the firmware, set the ControlLogix processor to PROGRAM mode. Once you are finished with the Ethernet configuration, you are ready to launch the ProSoft MVI56E-61850C Configuration Manager software. Refer to the following section for details. ProSoft Technology, Inc.
