4.9.10 PRI Port

These ports are used for connection to PRI trunk services including E1, T1 and E1-R2.

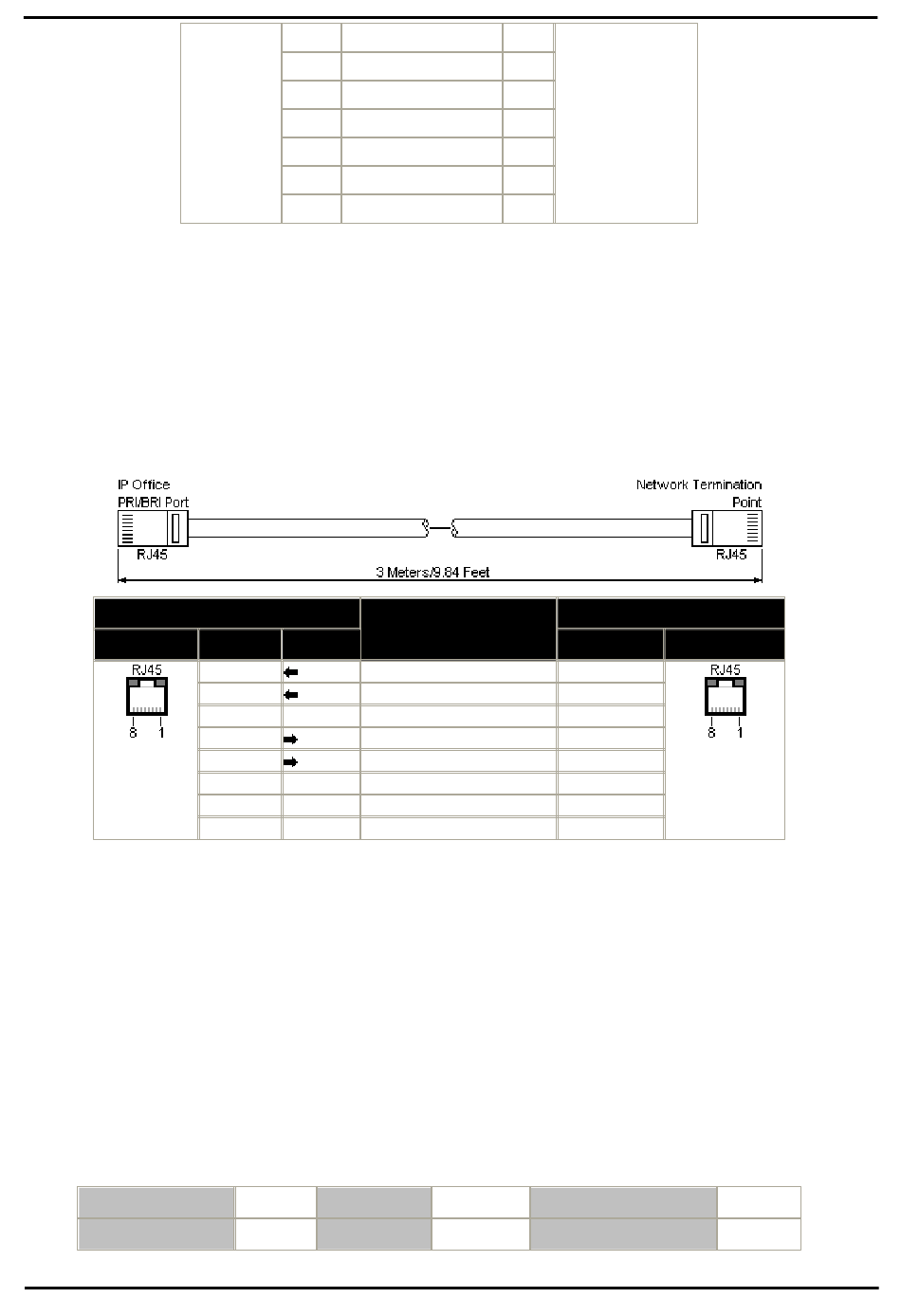

PRI Trunk Cable
This cable is used to connect from trunk ports to the line providers network termination equipment. If that equipment
does not use RJ45 sockets, the cable may need to be stripped and rewired or an alternative cable used. The appropriate
signal pin-outs and wire colors are detailed below.
IP Office
· Supply: PRI trunks cards are not supplied with these cables.
· Cable Color: Red.
· Part number: 700213440.
· Standard Length: 3m/9'10".

4.9.11 RS232 DTE Port

This port is found on the rear of the control unit and external expansion modules. The DTE ports on external expansion
modules are not used.
The RS232 DTE port on the control unit can be used for system maintenance and connection of serial terminal adaptors.
An asynchronous terminal program such as HyperTerminal is also required to manage the serial data exchange.
Configure this for operation via a PC serial port, as follows:
Bits per second 38,400
Data bits 8
PARTNER® Version, Installation and Reference Manual
IP Office Essential Edition
2 Not used.
3 Not used.
4 Signal 1.
5 Signal 2.
6 Not used.
7 Not used.
8 Not used.
Wire
RJ45 PRI
1 Rx-A White/Orange
2 Rx-B Orange/White
3 – White/Green
4 Tx-A Blue/White
5 Tx-B White/Blue
6 – Green/White
7 – White/Brown
8 – Brown/White
Stop Bits 1
1
2
3
4
5
6
–
Parity None
System Component Details: Physical Ports
Network Termination
PIN RJ45
1
2
3
4
5
6
7
8
Flow Control None
Settings | Emulation TTY
