2.3 System Components

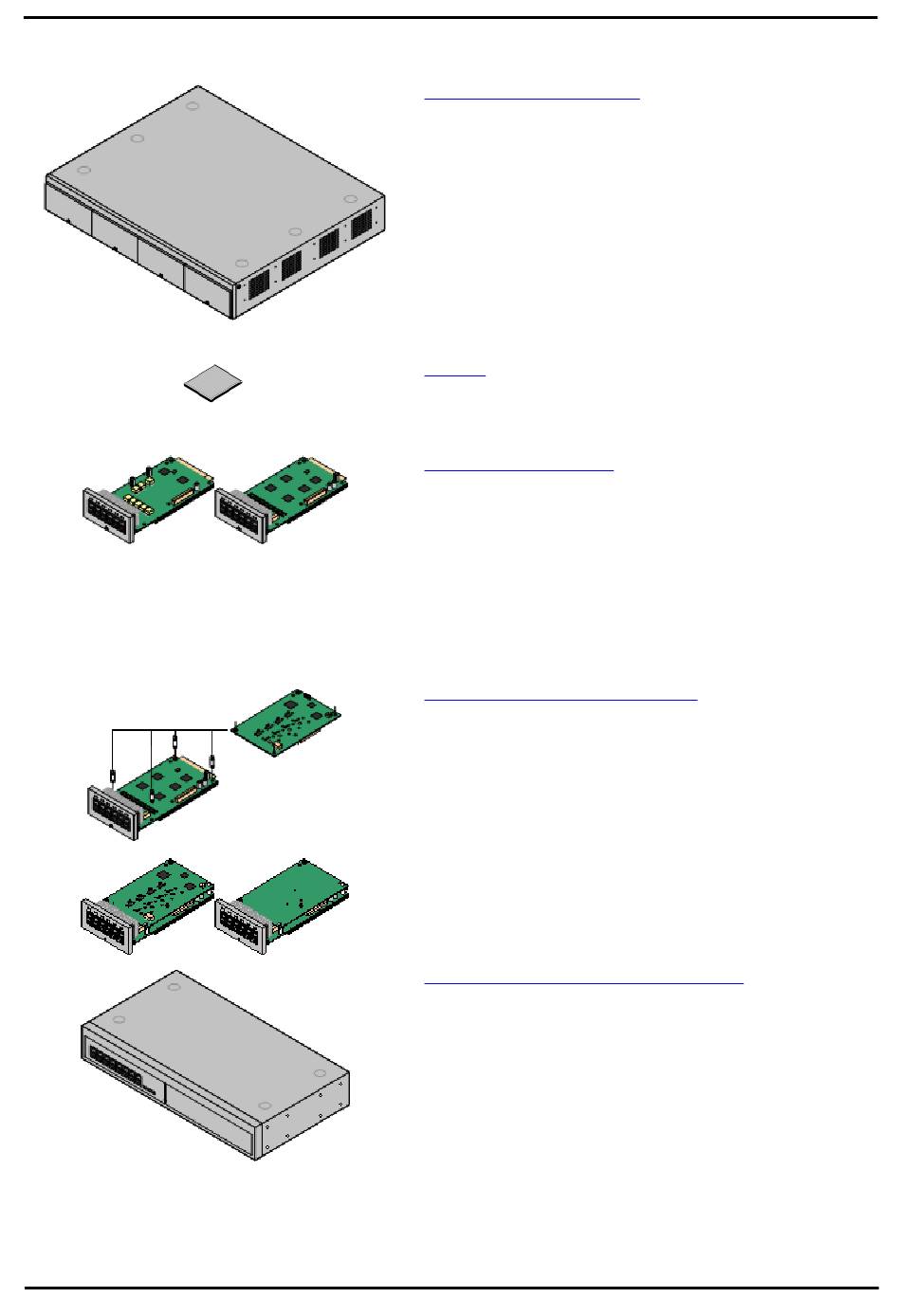

The following are typical components of an Essential Edition - PARTNER® Version system.
PARTNER® Version, Installation and Reference Manual
IP Office Essential Edition
IP Office 500v2 Control Unit
·
The control unit, holds the main configuration and performs
the routing and switching for telephone calls and data traffic.
The control unit includes LAN ports, slots for additional internal
cards and in some cases integral digital and analog phone
ports.
SD Card
·
The IP Office 500v2 control unit uses the Avaya SD flash
memory card which has Essential Edition - PARTNER® Version
software and Embedded Voicemail already installed. Each
Avaya SD card has a unique serial number.
IP Office 500 Base Cards
·
The control unit has slots for up to four base cards. These can
be used to add analog and digital extension ports.
· IP Office 500 Digital Station Base Card
· IP Office 500 ATM Combination Card
· IP Office 500v2 ETR6 Base Card
· IP Office 500 Analog Phone Base Card
· IP Office 500 VCM Base Card
· IP Office 500 4-Port Expansion Base Card
IP Office 500 Trunk Daughter Cards
·
Some base cards can be fitted with a IP Office 500 daughter
card in order to support various types of trunk connections.
· IP Office 500 Analog Trunk Card
· IP Office 500 T1 Trunk Card
· IP Office 500 PRI Trunk Card
· IP Office 500 SIP Trunk Card
· IP Office 500 Combination Cards
These card are pre-paired base and daughter cards. They
provide 6 digital station ports, 2 analog phone ports and 4
analog trunks.
IP Office 500 External Expansion Modules
·
Additional analog and digital extension ports can be added
using an IP Office 500 external expansion module.
· Only one Digital Station 16 or one Phone 16 module may be
used with Essential Edition - PARTNER® Version.
