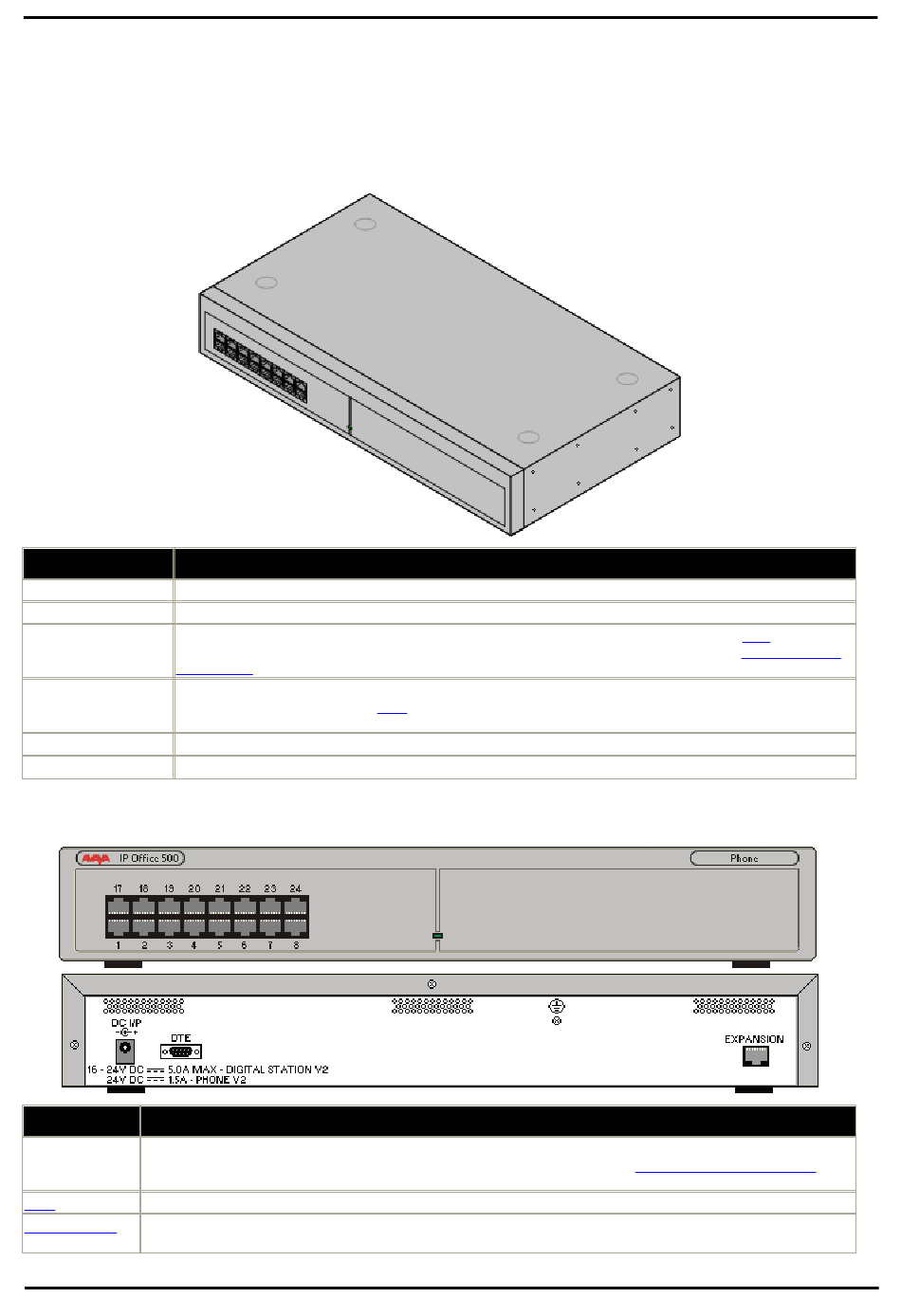

4.5.2 Phone Module

IPO 500 Phone modules can be used to add additional PHONE ports to an IP Office Partner® Version system. Note that
this requires the IP Office 500 control unit to be configured with an IP Office 500 Upgrade Standard to Professional
license.
The module is referred to as the IPO 500 Phone 16.
Feature Details
Software Level IP Office core software level 2.1(36) minimum. Bin file = dvpots.bin.
Included Power supply unit (see below) and Expansion Interconnect cable.
Power Supply The module is supplied with a Earthed 3-Pin, 60W external power supply unit. The
integral power cord for connection to the module's DC I/P socket. A locale specific
power cord
Mounting The module is designed as a free-standing module that can be stacked on or under other IP Office
modules. The module can be
500Rack Mounting Kit.
Dimensions Width: 445mm/17.5". Depth: 245mm/9.7". Height: 71mm/2.8".
Weight Unboxed: 3.1Kg/6.94lbs. Boxed: 4.4Kg/9.7lbs. (Based on Phone 30 V2)
IPO 500 Phone Connections
Ports Description
DC I/P DC power input port. Used for connection of the power lead from an Avaya earthed 60W external
power supply unit supplied with the expansion module. A locale specific
the external PSU is required but is not supplied with the module.
DTE 9-Way D-Type socket. For Avaya use only.
EXPANSION RJ45 Socket. Used for direct connection to an Expansion port on an IP Office control unit using the
Expansion Interconnect cable supplied with the module.
PARTNER® Version, Installation and Reference Manual
IP Office Essential Edition
for the external PSU is required but is not supplied with the module.
rack mounted in a 19" rack system using the optional IP Office
System Component Details: Expansion Modules
IEC60320 C13 power cord
- Issue 1a (30 January 2010)
PSU has an
IEC60320 C13
for
