4.6.13 Phone Add-Ons

The 1416 phone supports button modules which provided the phone with additional programmable buttons.
The number of button modules supported per phone and per system are as follow:
· DBM32: (1416)
Up to 32 DBM32s supported (32 buttons each, up to 1024 buttons).
The maximum combined number of buttons per system is 512, regardless of whether the buttons are programmed or
not.

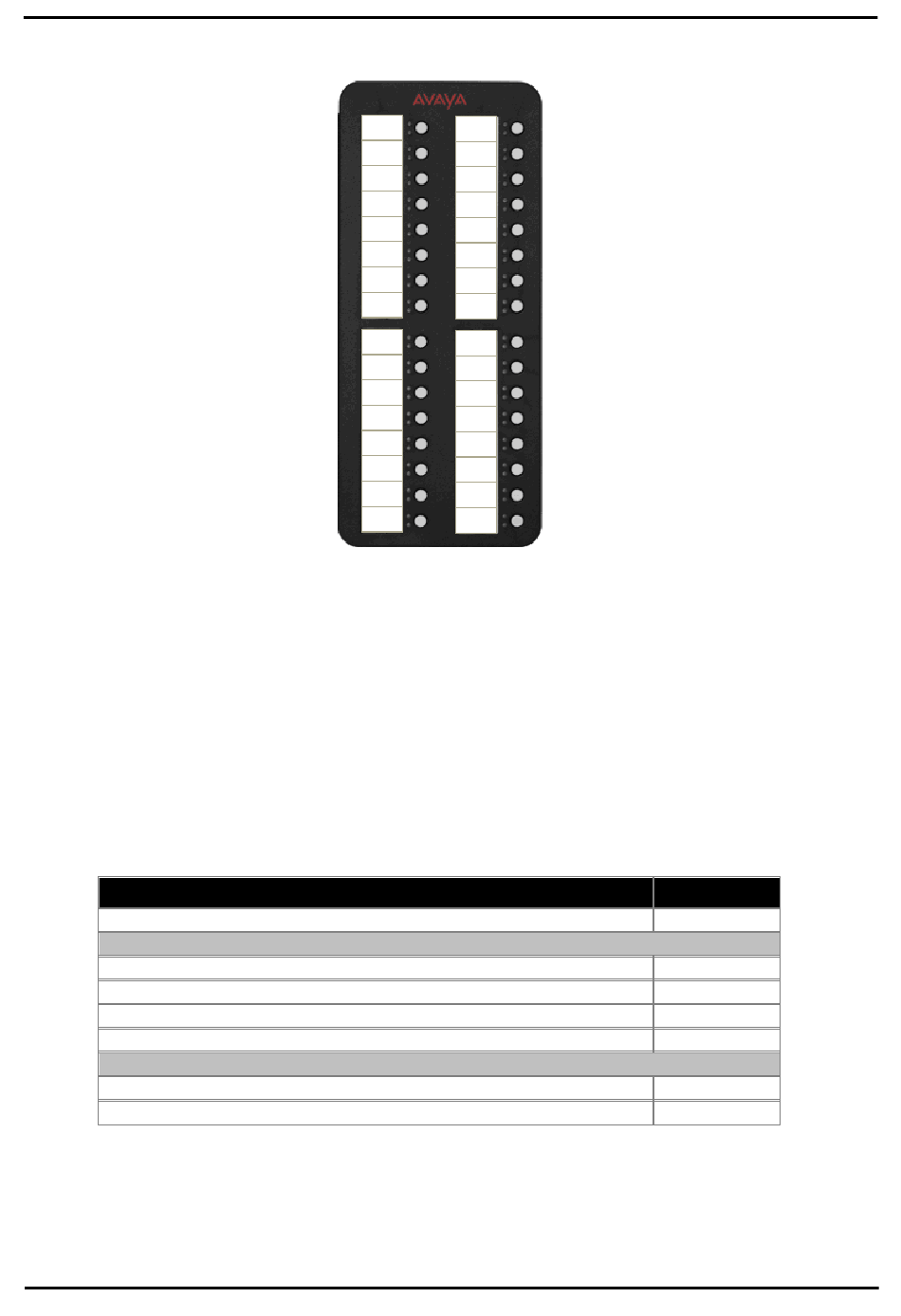

This add on provides an additional 32 twin-LED programmable buttons for 1416 phones. The BM32 does not require its
own power supply connection, instead it draws power from the phone to which it is connected.
· Only two BM32 units can be connected in a chain from a single 1416. Up to three 1416 telephones with BM32s are
supported, i.e. 6 BM32s.
· To support a BM32 the phone must be powered by an individual 1600 Series Power Adapter.
· Up to a maximum of 16 BM32 units are supported on the whole IP Office system.
· The BM32 buttons cannot be used for appearance functions such as call and line appearances.
Item
BM32 BUTTON MODULE
Accessories
1600 SERIES BM32 CABLE - REPLACEMENT
1600 SERIES BM32 BOND BRIDGE - REPLACEMENT
1616/BM32 PLASTIC LABEL COVERS (20) – REPLACEMENT
1600 SERIES BM32 FLIP STAND - REPLACEMENT
Paper Labels
1616/BM32 PAPER DESI LABELS - PACKAGE OF 50 LABELS (8.5" x 11")
1616/BM32 PAPER DESI LABELS - PACKAGE OF 50 LABELS (A4)
PARTNER® Version, Installation and Reference Manual
IP Office Essential Edition
Part number
700415573
700415581
700415599
700415672
700432800
700415656
700434236
