Optional Trunk 9 to 12
Card Ports
Name
IPO 500 Extn Card Phone 2
IPO 500 Extn Card Phone 8

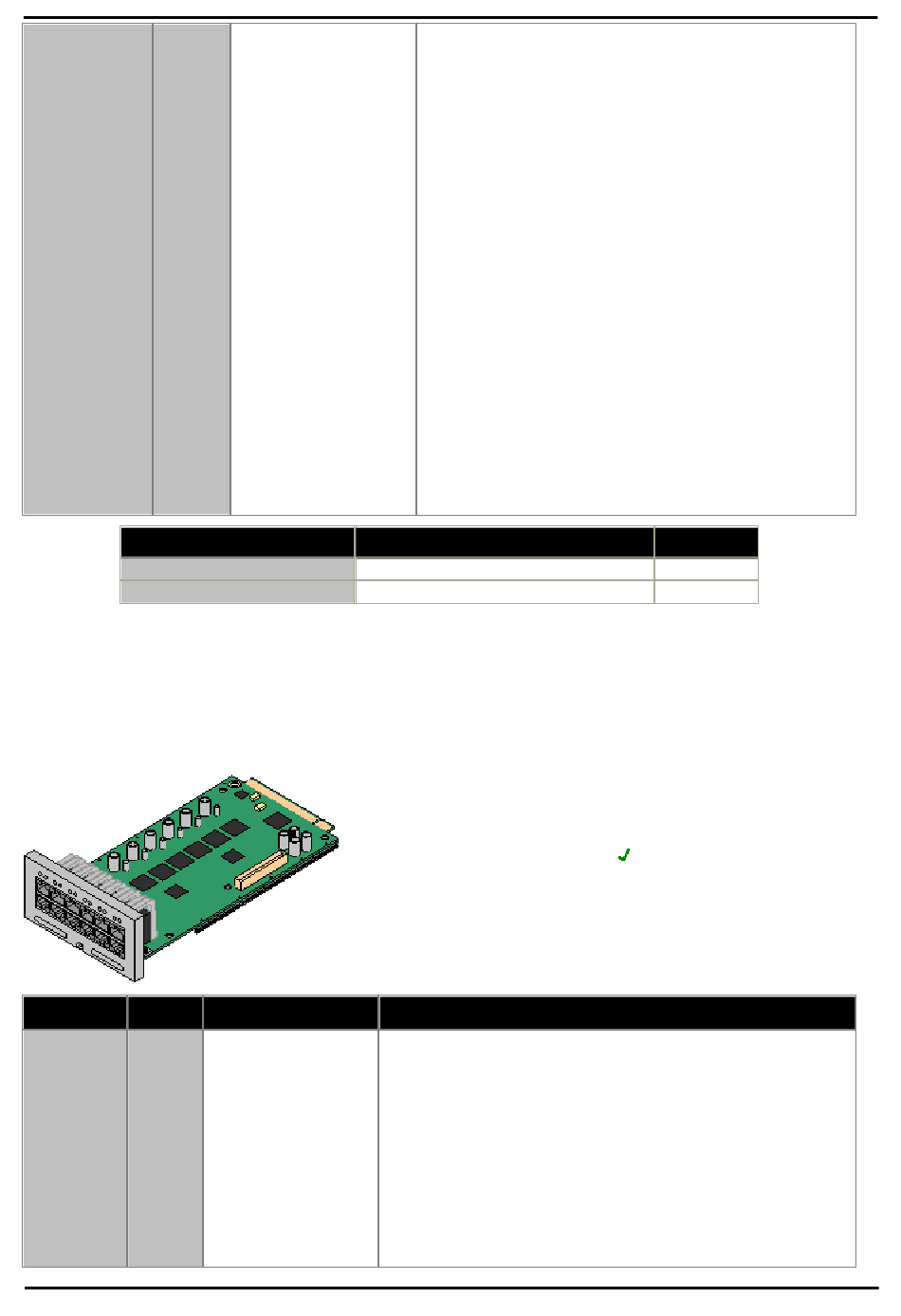

4.3.3 ETR6 Card

This card is used to add 6 ETR phone extension ports to the IP 500v2 control unit. This card is only supported by IP500
V2 systems running in Essential Edition - PARTNER® Version mode.
It also includes 2 analog extension ports which are for emergency use only when the card is fitted with an analog trunk
daughter card. A further 4 RJ45 ports (9 to 12) are provided for trunk connections when an IP500 trunk daughter card is
fitted to this card.
Port Type Ports
ETR 1 to 6
Extensions
PARTNER® Version, Installation and Reference Manual
IP Office Essential Edition
The card can be fitted
with one of the following
trunk daughter cards. The
trunk daughter card then
uses ports 9 to 12 on the
base card for its trunk
connections.
· IP500 Analog
Trunk Card.
· IP500 PRI Trunk
Card.
Description
IP Office 500 Extension Card Phone 2
IP Office 500 Extension Card Phone 8
· Supports
· Maximum per IP500 Control Unit: 3.
· IP500 Daughter Card Support:
Features
Each ETR phone can be
used for an ETR or
analog phone. Support
for ETR 34D phone is
limited to a maximum of
2 per ETR6 card and 4
in total.
· REN 1.
· DTMF dialing only.
· Message waiting
indication 51V
stepped.
LED use depends daughter card type fitted.
· LED 9 is used for daughter card status.
· Red On = Error
· Red Slow Flash = Initializing.
Analog Trunk Daughter Card
· Green on: Card fitted.
· Green flashing: Trunk in use.
PRI Trunk Daughter Card
· Off: No trunk present.
· Green on: Trunk present.
· Green flashing: Trunk in use.
ETR and analog phones.
The IP500 BRI trunk daughter card is not supported.
Port LEDs
No status LED are used for ETR ports.
· LED1 is used for base card status:
· Red On = Error
· Red Slow Flash = Initializing.
· Red Flash every
5 seconds =
Card okay.
· Red Fast Flash =
System
shutdown.
· Red/Green Fast
Flash (port 9) or
Green Fast Flash
(port 10): Alarm
indication signal
(AIS) from the
trunk remote end.
· Red with Green
Blink (port 9) or
Green Blink (port
10): Port in
loopback mode (set
through IP Office
System Monitor).
Part Number
700431778
700417231
1.
· Red Flash every 5
seconds = Card okay.
· Red Fast Flash =
System shutdown.
