· Minimum Wire Size: AWG 26.
· Maximum Cable Length:
· AWG26: 500m / 1640'.
· AWG24, AWG22: 1000m / 3280'.

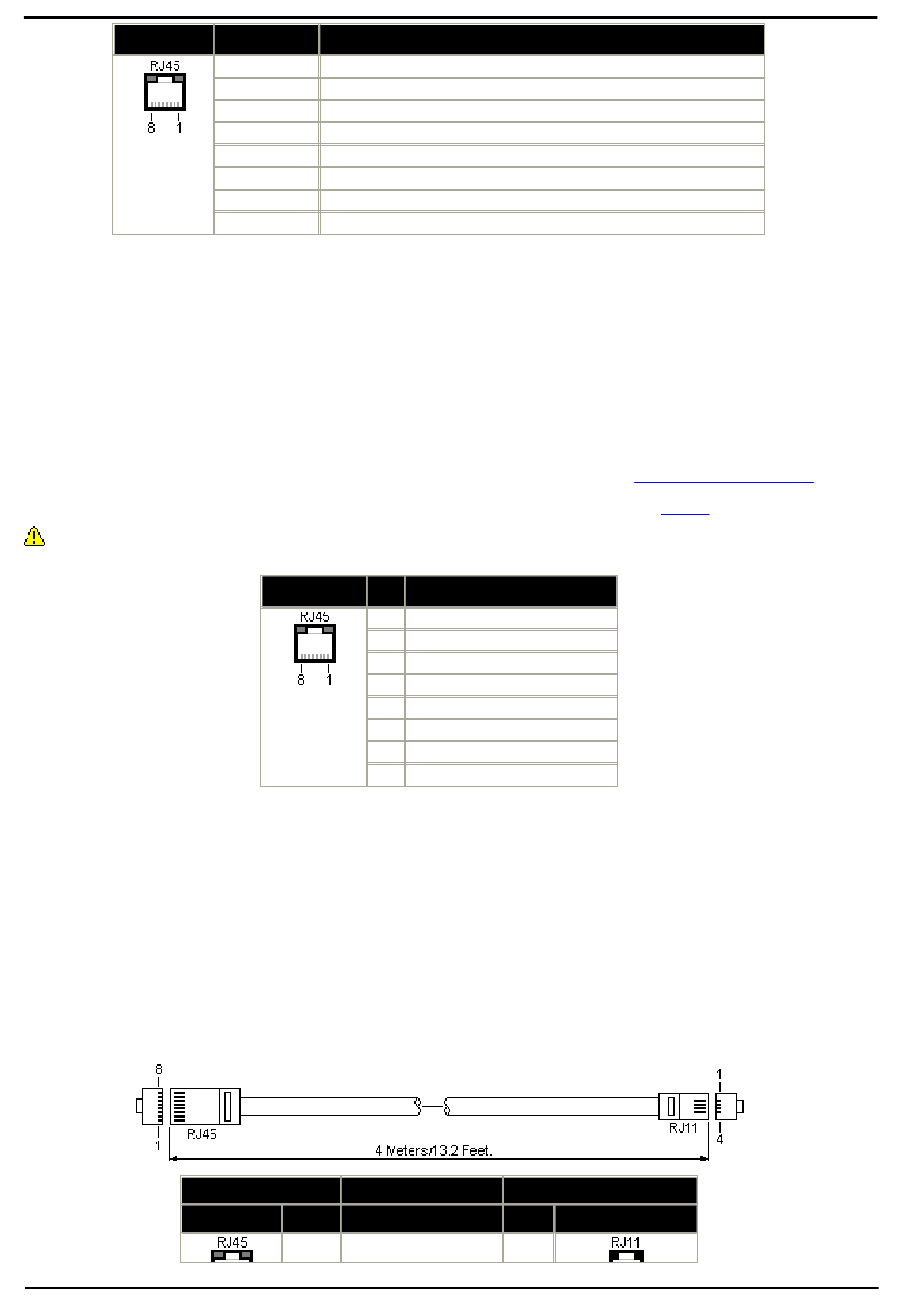

4.9.9 Phone (POT) Port

These ports are analog extension ports. On expansion modules they can be connected to
this is the case, connection must be made via suitable protective devices (IP Office Barrier Box) at each end and via each
building primary protection. In addition the Phone module must be connected to a protective ground.
PHONE ports on Essential Edition - PARTNER® Version control units must not be connected to out-of-building
extensions.
· REN: 2
· Off-Hook Current: 25mA.
· Ring Voltage: 40V rms.
· Minimum Wire Size: AWG 26.
· Maximum Cable Length:
· AWG26: 0.5km / 1640 feet.
· AWG24, AWG22: 1km / 3280 feet.
Except on some older equipment, these ports do not include a ringing capacitor. Therefore for connection to 4-wire
analog phones where this is a requirement, connection should be via a Master socket containing ringing capacitors.
Message waiting is hard wired, 51 volt stepped
Structured Cabling Line Cord
This is an RJ45 to RJ11 cable suitable for connection from a structured cabling system RJ45 port to a DS phone. It can
also be used for two-wire analog phone extensions.
IP Office
DS Port
PARTNER® Version, Installation and Reference Manual
IP Office Essential Edition
Pin Description
1 Not used.
2 Pin 2 is internally connected to pin 5 via a ringer capacitor.
3 Not used.
4 Ring.
5 Tip.
6 Pin 6 is internally connected to pin 5 via a ringer capacitor.
7 Not used.
8 Not used.
PHONE Pin Description
1
2
3
4
5
6
7
8
Pin Description
1 Not used.
Not used.
Not used.
Not used.
Ring.
Tip.
Not used.
Not used.
Not used.
Phone
Pin Port
–
out-of-building extensions. If
