· Cards can be fitted in any order into any available slots. The only exception is the IP500 4-Port Expansion card
which can only be installed in right hand slot 4.
· It is recommended that cards are fitted from left to right.
· There are restrictions to the number of supported cards of some types. When such a limit is exceed, the right-
most card of that type will not function.
· Ensure that you use the labels supplied to identify the card fitted into the control unit.

3.5 Starting

Do not begin this procedure until all cards are
PARTNER® Version, Installation and Reference Manual
IP Office Essential Edition
installed in the control unit.

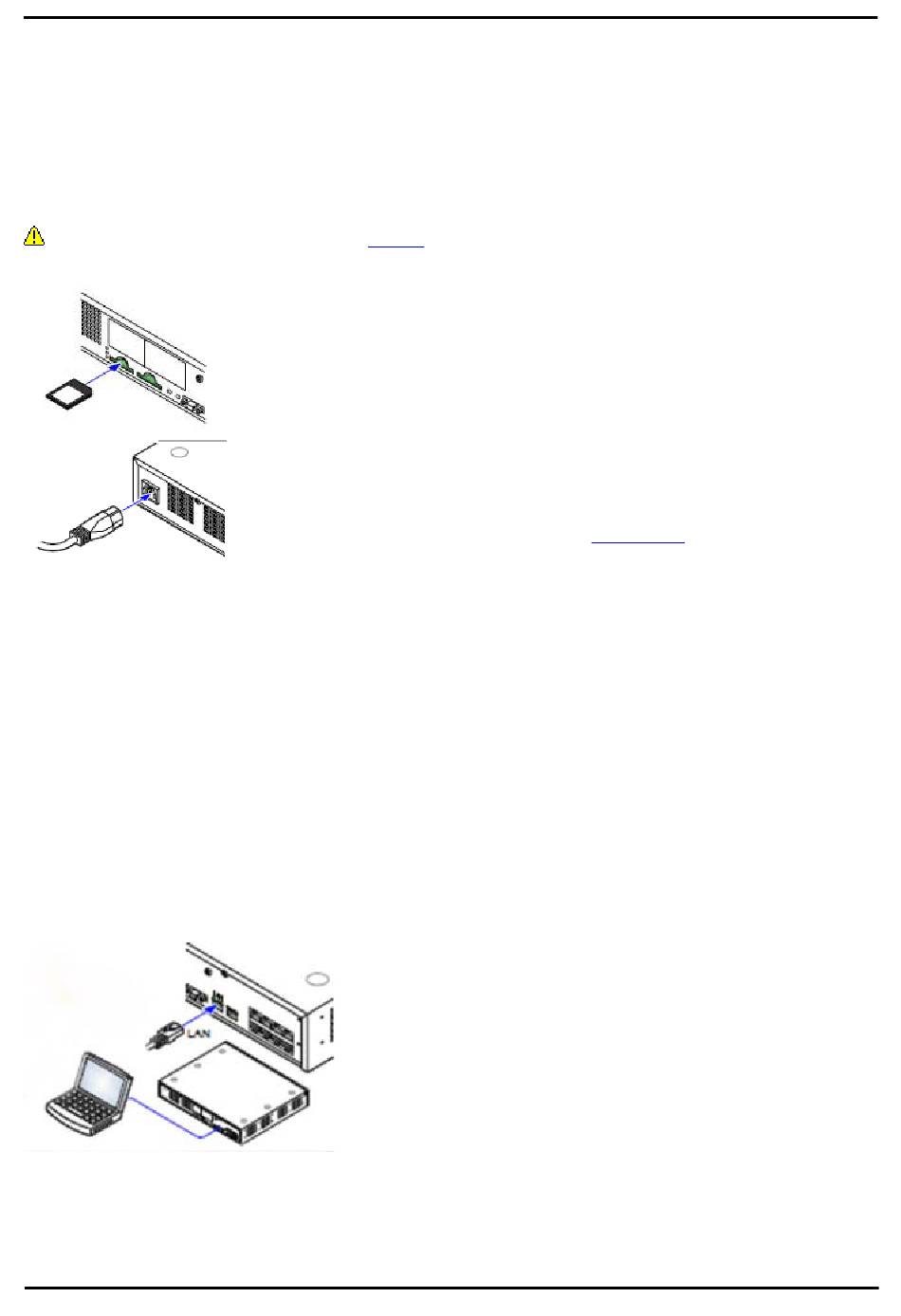

With power still off, insert the SD card into the first rear panel slot
(System SD) of the control unit.
Apply power to the control unit.
Check that the orange LED lamp on the IP Office LAN port is on. The
green LED may also be flickering as it indicates traffic across the LAN
connection
As the control unit goes through its
checks:
1. The CPU LED changes to green
When power to the control unit is switched on, the normal sequence for
the CPU LED is as follows.
a) Steady Red for 3 seconds
b) Off for 10 seconds
c) Flashing alternate red/green for 4 seconds.
d) The LED should be steady green following successful start up. Note that
the IP Office 500 cards on the front of the control unit may still be going
through their own start up process.
· Flashing RED
A flashing red CPU LED at this stage indicates an error. The most likely
cause is a missing or loose SD card.
2. The System SD LED changes to green
3. The LAN connection LED flashes and then settles to steady green
4. Card module front lamps light randomly but after approximately 30
second the No.1 lamps flash together once every 5 seconds
Connect the laptop via an R45 lead to the LAN socket on the control unit
rear panel.
Switch on the laptop and start the Manager application. It should
automatically recognize the control unit and the software controlling it.
IP Office Manager can now be used to configure the extensions and trunk
lines. See IP Office Essential Edition - PARTNER® Version Administration
Toll User Manual.
Installing PARTNER®: Card Installation
start-up cycle, make the following
