The basic installation procedure described in the following sections is as follows:
1. Equip the control unit with base cards, pre fitted where necessary with daughter cards.
2. Insert the supplied SD
3. Connect a laptop PC that has IP Office Manager 6 or above, to the control unit
4. Switch ON the control unit. Essential Edition - PARTNER® Version automatically
contacts the laptop. To do this, The control unit initializing firmware sends its configuration
where they are checked against the current versions on the card. The control unit performs a boot up sequence that
varies according to what is detected during the discovery phase.
5. Switch ON the laptop.
components and system settings.
6. Plug in telephone handsets.
7. Use Manager to complete system configuration.

3.4 Card Installation

This section describes in order, the procedures to equip an IP 500v2 control unit for use with Essential Edition -
PARTNER® Version.
Warnings
· Correct anti-static protection steps should be taken before handling circuit boards.
· During this process power to the IP Office control unit must be switched off and disconnected.

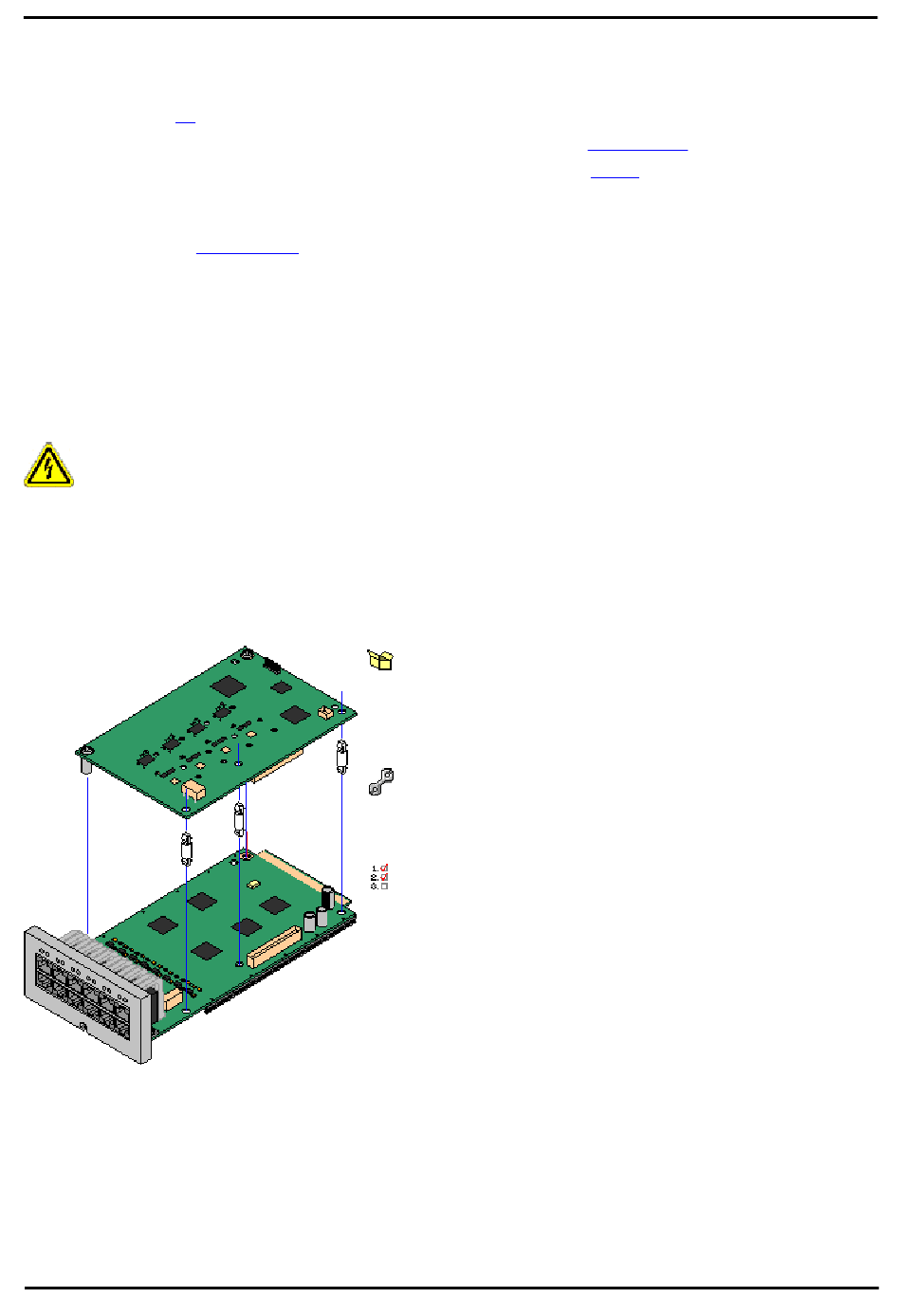

IP500 Trunk Daughter Card Preparation
IP500 trunk daughter cards should be fitted to any base card requiring them.
PARTNER® Version, Installation and Reference Manual
IP Office Essential Edition
card.
Office Manager on the PC displays the administration home screen which identifies basic system
Parts and Equipment Required
1. IP500 base cards
2. IP500 Trunk cards if required
3. Stand Off Pillars, these are supplied with the trunk daughter card.
Tools Required.
1. 5mm Flat-blade screwdriver.
2. Anti-static wrist strap and ground point.
Procedure:
1. Check that correct cards have been supplied.
2. Ensure that you are wearing an anti-static wrist strap connected to a
suitable ground point.
3. On the base card identify the position of 3 holes for the plastic pillars
for the daughter card. These are along the same edge as the card
connector.
4. Fit the stand off pillars to the base card.
5. If there is a clip-on metal shield over the connector block on the
base card, remove it.
6. Using minimal force and checking that the pins are correctly located,
push the daughter trunk card down onto its connector block and the
stand off pillars.
7. Check that the card connector has snapped into position.
8. Using the washers and screws provided, secure the metal stand off
pillars to the base card.
Installing PARTNER®: Install Overview
(Item 5 in tools).
"sniffs" the connected system and
. i n i
files to the SD card
