SD Card Removal
SD cards should never be removed while being used. Though the SD card slot LEDs indicate when data is being
written to an SD card, lack of flashing LED is not a sufficient safeguard. The IP Office Manager provides methods to
shutdown and restart an individual card
allow removal of an SD card. If the System SD card is removed, licensed features will continue operating for up to 2
hours.

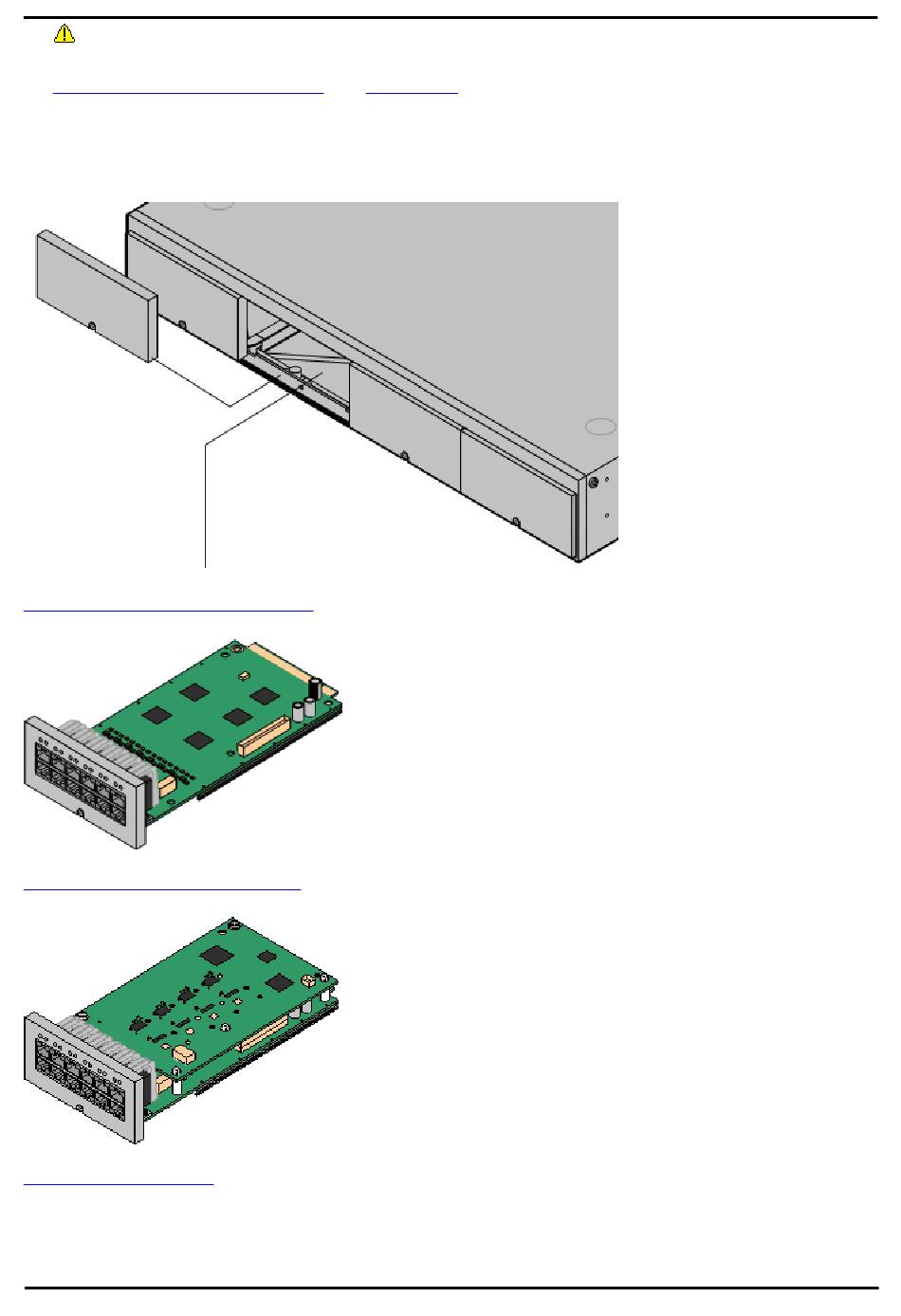

4.3 Base Cards

IP Office 500 Analog Phone Base Card
IP Office 500 ATM Combination Card
IP Office ETR6 Base Card
PARTNER® Version, Installation and Reference Manual
IP Office Essential Edition
or to shutdown the Essential Edition - PARTNER® Version system in order to
This card has 12 RJ45 ports. The card is available in two variants,
providing 2 or 8 analog extension ports for the connection of analog
phones. The card can be fitted with an IP Office 500 daughter card
which then uses the additional 4 RJ45 ports for connections.
· This card accepts one IP Office 500 daughter card of any type.
· Maximum: 4 per control unit.
· When fitted with an IP Office 500 Analog Trunk daughter card, the
Phone 8 base card supports 1 power failure extension to trunk (loop-
start only) connection.
· The analog extension ports do not include a ringing capacitor. Where
this is a requirement, connection should be via a Master socket
containing ringing capacitors.
This card provides 6 digital station ports (1-6), 2 analog extension
ports (7-8) and 4 analog trunk ports (9-12). The card also includes 10
VCM channels.
· This card has a pre-installed IP Office 500 ATM daughter card.
· Maximum: 2 combination cards per control unit.
· During power failure port 8 is connected to port 12.
This card is only supported in an IP500 V2 control unit running in
PARTNER® Version mode. It provides 6 ETR ports for connection of
ETR phones. 2 Analog extension ports are also provided for emergency
use only with an analog trunk card.
System Component Details: SD Card
The IP Office 500v2 control unit
has 4 slots to accomodate base
cards. Each base cards includes
an integral front panel with
ports for cable connections.
The slots are numbered 1 to 4
from left to right. Normally they
can be used in any order,
however if the capacity for a
particular type of card is
exceeded, the card in the
highest slot will be disabled.
