Switch on normal operation

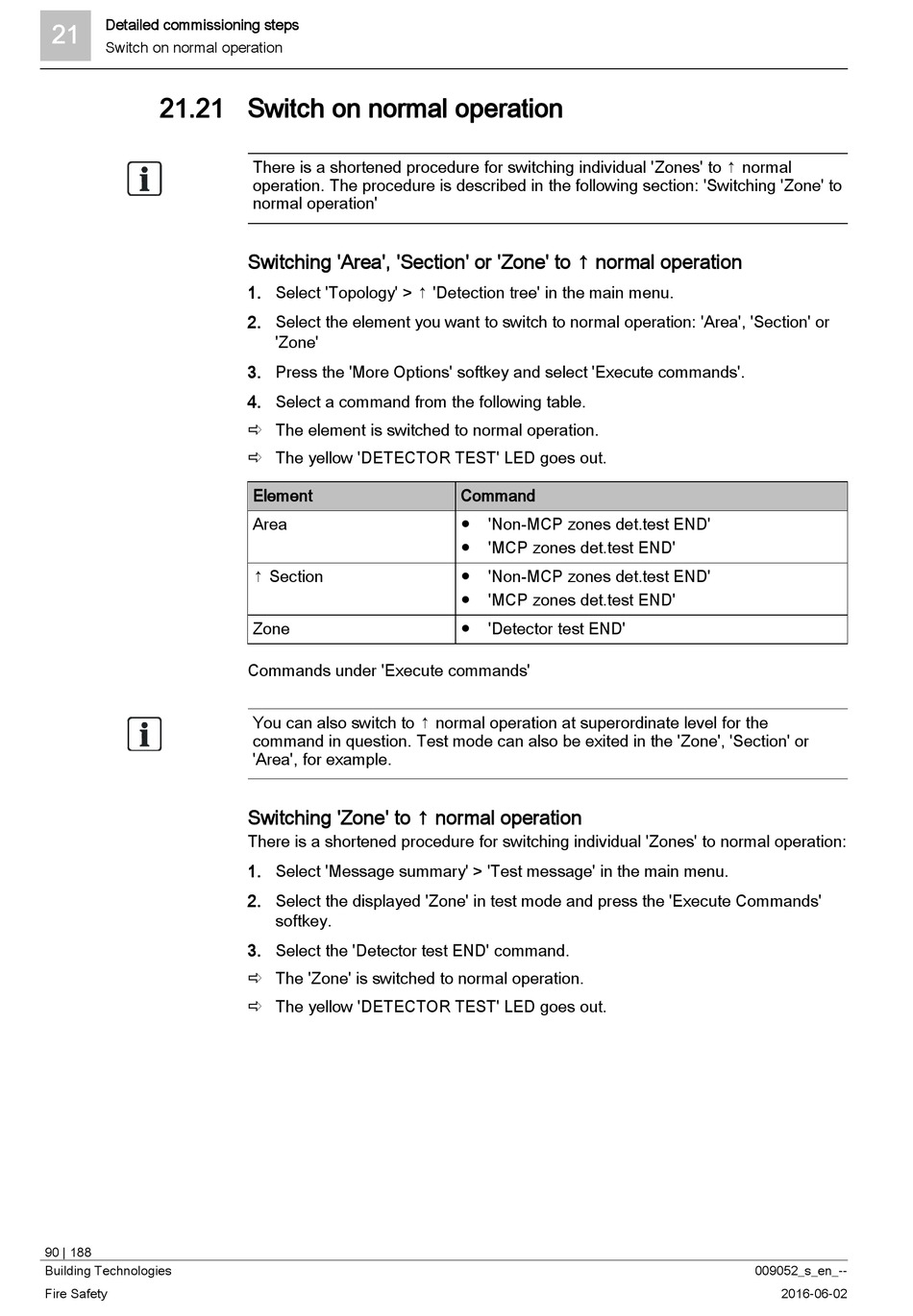

21.21 Switch on normal operation
90 | 188
Building Technologies
Fire Safety
There is a shortened procedure for switching individual 'Zones' to ↑ normal
operation. The procedure is described in the following section: 'Switching 'Zone' to
normal operation'
Switching 'Area', 'Section' or 'Zone' to ↑ normal operation
1. Select 'Topology' > ↑ 'Detection tree' in the main menu.
2. Select the element you want to switch to normal operation: 'Area', 'Section' or
'Zone'
3. Press the 'More Options' softkey and select 'Execute commands'.
4. Select a command from the following table.
 The element is switched to normal operation.
 The yellow 'DETECTOR TEST' LED goes out.
Element
Area
↑ Section
Zone
Commands under 'Execute commands'
You can also switch to ↑ normal operation at superordinate level for the
command in question. Test mode can also be exited in the 'Zone', 'Section' or
'Area', for example.
Switching 'Zone' to ↑ normal operation
There is a shortened procedure for switching individual 'Zones' to normal operation:
1. Select 'Message summary' > 'Test message' in the main menu.
2. Select the displayed 'Zone' in test mode and press the 'Execute Commands'
softkey.
3. Select the 'Detector test END' command.
 The 'Zone' is switched to normal operation.
 The yellow 'DETECTOR TEST' LED goes out.
Command
● 'Non-MCP zones det.test END'
● 'MCP zones det.test END'
● 'Non-MCP zones det.test END'
● 'MCP zones det.test END'
● 'Detector test END'
