4.3 Connecting the PC to the station

4.4 Disconnecting the PC from the station

Building Technologies
Fire Safety
For most commissioning, maintenance and repair work a PC with installed
SintesoWorks is required. The figure below shows the connection between the PC
and ↑ 'Station'.
LAN

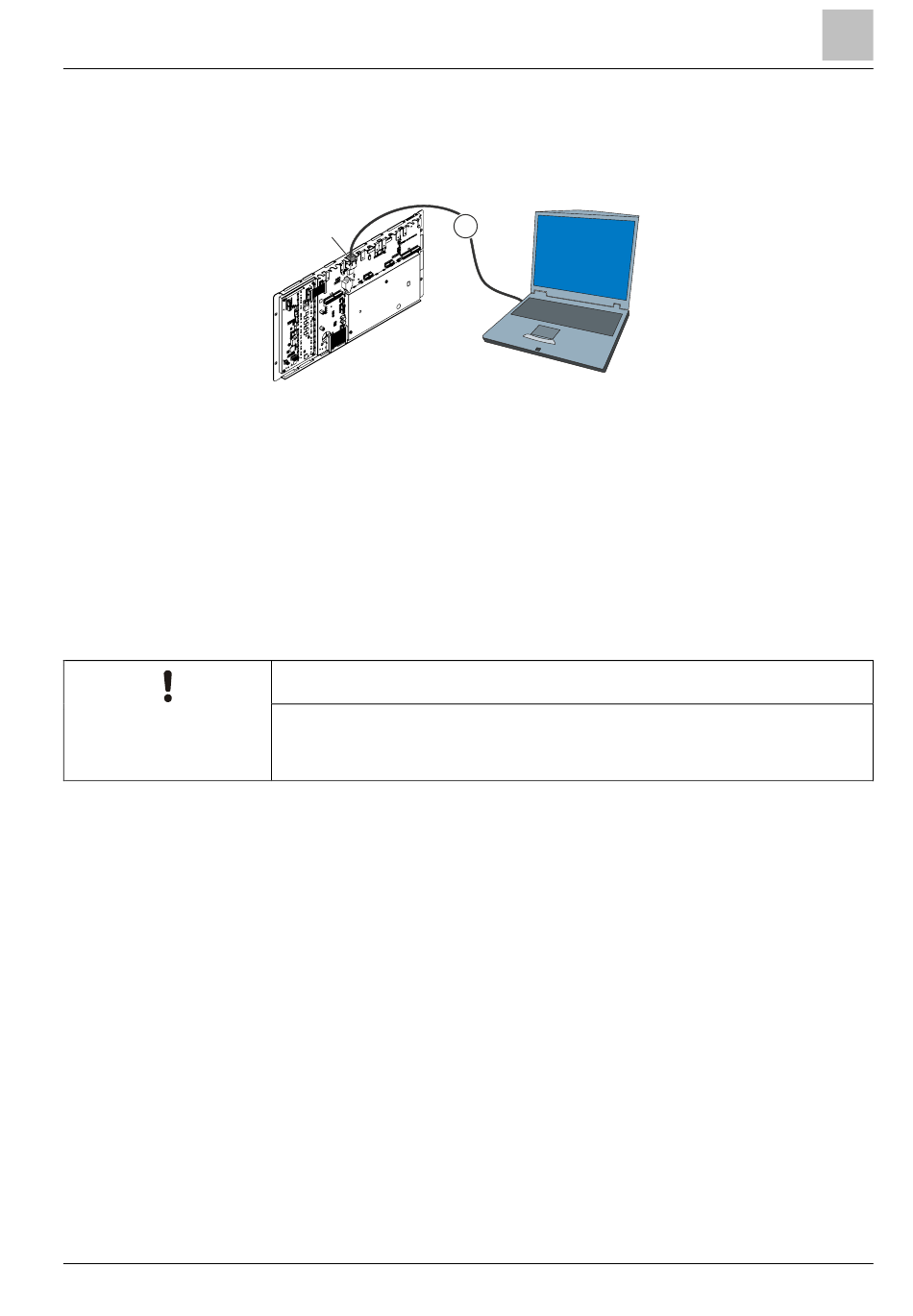

Figure 1: Rear panel of operating unit and PC
LAN Ethernet connection
1 Cable, type CAT 5 or CAT 7, crossover, max. 100 m
As the IP address is bound to the MAC address while there is a connection
between the PC and the ↑ 'Station' and as it remains in the cache even in the case
of a short break in the connection of ≤2 min., you must observe the following
instructions.
NOTICE
Incorrect disconnection of 'Station'
Establishing a connection to other 'Station' is not possible
● Disconnect the PC from the 'Station' as described in the following instructions.
The connection between the PC and the 'Station' must be disconnected as follows:
1. Select 'SintesoWorks' > 'Commissioning' in Disconnect.
2. Disconnect the cable connection between PC and 'Station'.
3. Wait ≥2 min. before you establish a connection to another 'Station'.
Connectivity and communication with 'Station'
Connecting the PC to the station
